GTH 12x3/1R-HU0.75
GTH 12x3/1R-HU0.75 video

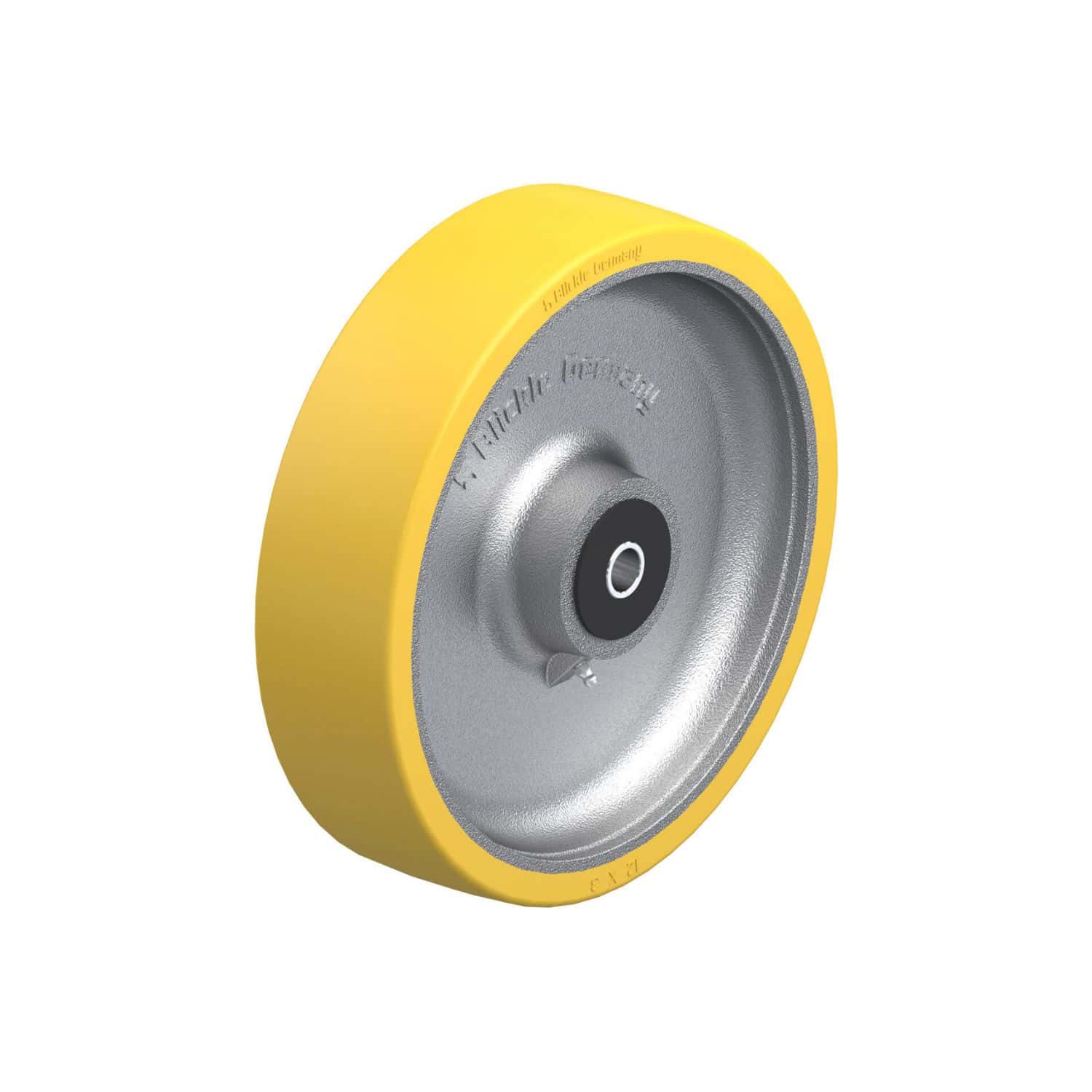

12 Inch Heavy Duty Non-Marking Blickle Extrathane Wheel with Cast Iron Core

Item ID: GTH 12X3/1R-HU0.75 Category

Lead Time: 5 days

Wheel. Tread is polyurethane elastomer hardness 92 Shore A. High abrasion resistance high cut and tear non-marking non-staining. Wheel center is cast iron with grease nipple from wheel Ø 150 mm lacquer D.

$210.37

Overview

The GTH 12x3/1R-HU0.75 Blickle heavy-duty polyurethane wheel is designed to provide top-quality mobility solutions for various industrial applications. This wheel features high-quality materials, ensuring reliable performance and durability. The polyurethane caster wheels are known for their excellent floor protection and heavy-duty capabilities, making them ideal for demanding environments.

Benefits

  • Durability: The heavy-duty polyurethane wheel is built to withstand rigorous use, offering long-lasting performance.
  • Floor Protection: Polyurethane caster wheels are gentle on floors, reducing wear and tear.
  • Smooth Operation: Equipped with precision ball bearings, this wheel ensures maintenance-free and smooth operation.
  • High Load Capacity: With a dynamic load capacity of 3970 lbs, this wheel can handle substantial weights, making it suitable for heavy-duty applications.
SKUGTH 12x3/1R-HU0.75Minimum Temperature-5
Wheel Diameter12 InchesMaximum Temperature160
Wheel Width3 InchesWheel MaterialBlickle Extrathane Polyurethane Elastomer
Hardness Rating92 Shore ABearing TypeRoller Bearing
Core MaterialCast IronWeight Capacity3970 at 2.5 mph
ApplicationHeavy DutyOverall Height8 Inches

Blickle Extrathane Polyurethane Wheels

Blickle Extrathane® polyurethane wheels are built for heavy-duty performance, combining high load capacity with exceptional durability. These wheels feature a high-quality, reaction-injected polyurethane-elastomer tread that offers outstanding resistance to abrasion, cuts, and tear propagation—making them ideal for industrial environments with thresholds, sharp obstacles, and medium-speed transport.

Barron Equipment offers a full range of Extrathane wheel solutions, including:

  • GTH Series: Cast iron wheel centers for rugged durability and high load capacity
  • ALTH Series: Lightweight aluminum wheel centers for logistics and mobile equipment
  • SETH & VSTH Series: Welded steel centers for extreme-duty applications

These wheels are available in swivel and rigid caster formats, with multiple mounting options and bearing types. The tread is non-marking, chemically bonded to the wheel core, and designed for quiet operation and good floor preservation.

Check out the video below to learn more.

Applications

The GTH 12x3/1R-HU0.75 Blickle heavy-duty polyurethane wheel is perfect for a variety of industrial applications, including:
  • Material handling equipment
  • Warehouse carts
  • Heavy machinery
  • Industrial trolleys

Selection Assistance

Not sure which Blickle caster would work best for your application? We have a whole team of caster experts dedicated to finding the perfect caster for your business, improving ergonomics and saving your company money. Fill out the form below and a Barron caster representative will be in touch soon!

Product Specification

Caster Type

Wheel Material

Top Plate Dimensions

Wheel Brakes

Weight Capacity

Application

Bearing Type

Roller Bearing
Overall Height

Not Applicable
Core Material

Cast Iron
Minimum Temperature

-5
Maximum Temperature

160
Hardness Rating

92 Shore A
Bolt Hole Spacing

2-5/8in x 3-5/8in – 3in x 3in
Wheel Diameter

Wheel Width
