Overview

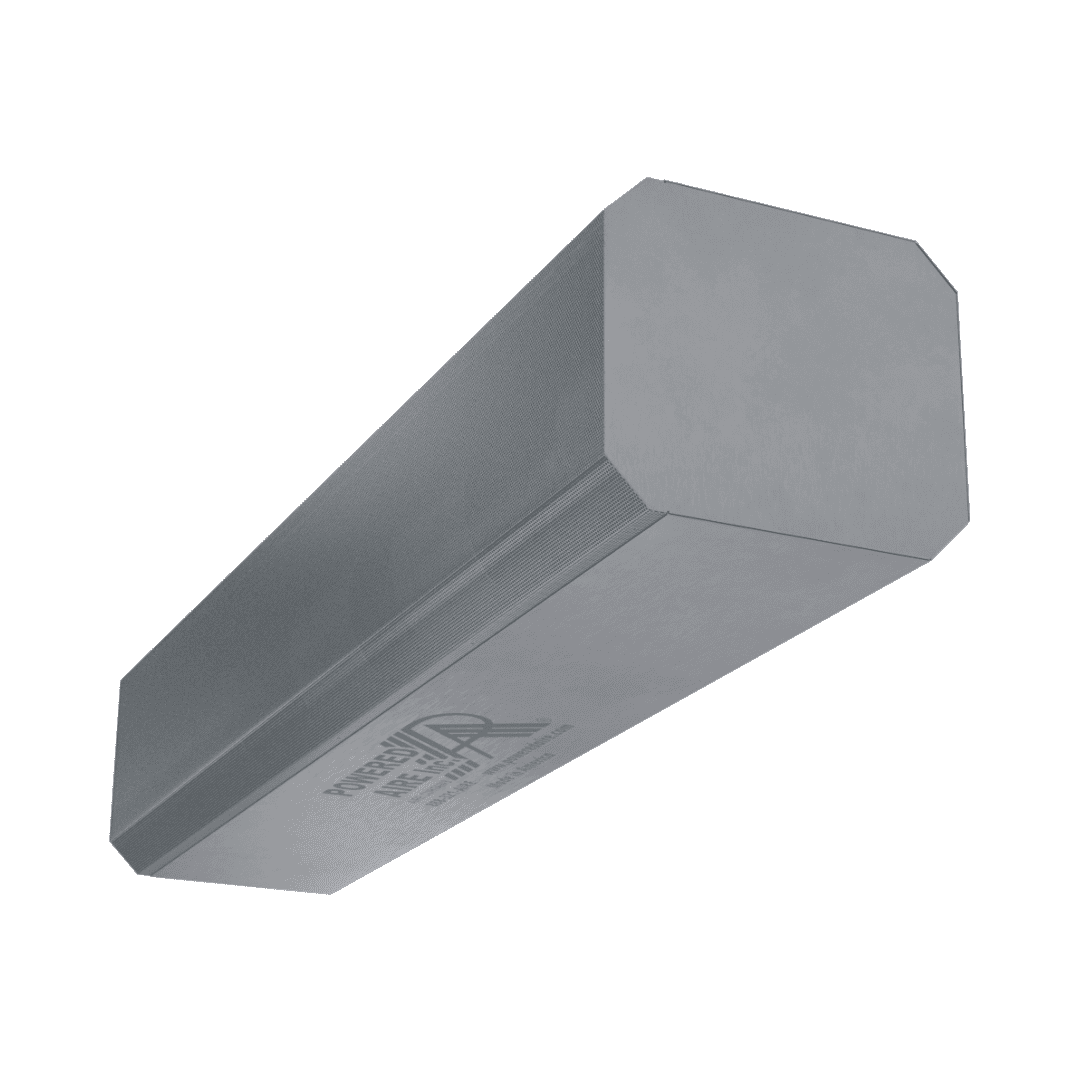

The Powered Aire BCE-2-72E Air Curtain Heater is a powerful solution for creating an effective air barrier across doorways up to 72 inches wide and 11 feet high. This premium electrically heated unit prevents the infiltration of outside air, flying insects, dust, and debris while enhancing the efficiency of your building's HVAC system. Constructed from durable 18-gauge 304 stainless steel with a #3 finish, this unit offers both exceptional performance and aesthetic appeal for commercial and industrial applications.
Features and Benefits
This electric air curtain features two heavy-duty 1/2 horsepower motors that deliver consistent, powerful airflow to maintain an effective barrier. The unit includes a high-efficiency discharge plenum with an adjustable air foil vane (±20°) for optimal directional control of the air stream.
The integrated 20kW electric heating system provides a 40°F temperature rise, making this model ideal for locations where maintaining consistent temperatures is essential. With a sound level of only 53 dBA (measured at 10 feet), this commercial air curtain operates quietly enough for customer-facing environments.
For ease of installation, the unit includes mounting holes capable of accepting 3/8" mounting bolts or lags, and the motor/blower plate can be removed as a single piece for simplified maintenance. The BCE-2-72E creates an effective seal against exterior conditions while allowing for unimpeded traffic flow through doorways.
For details on the specs of this air curtain, see the table below:
| SKU | Width (in.) | Height (in.) | Weight (lbs.) | Voltage/Phase | Number of Motors |
|---|---|---|---|---|---|
| BCE-2-72E-208/3 | 72 | 8 | 164 | 208/3 | 2 |
| BCE-2-72E-240/3 | 72 | 8 | 164 | 240/3 | 2 |
| BCE-2-72E-480/3 | 72 | 8 | 164 | 480/3 | 2 |
Applications
Our heated air curtains for overhead doors are perfect for a variety of commercial and industrial settings:
- Retail entrances and customer doorways
- Healthcare facilities
- Refrigerated spaces and cold storage transitions
- Warehouses and distribution centers
- Commercial kitchens
Maintenance
To maintain optimal performance, follow these maintenance steps:
- Check the stainless steel body for any scratching or denting that could indicate potential damage to internal mechanisms.
- Ensure that all motors are spinning properly during operation.
- Clean the air intake screen regularly by removing the grille and flushing with hot water or steam, allowing it to dry completely before reinstallation.
- Keep the intake holes free from obstruction to maintain proper airflow. The discharge vanes come preset from the factory and typically require no adjustment, but they can be modified if environmental conditions warrant changes.
- The motors in this unit are permanently lubricated and do not require regular greasing.
Power Requirements
The BCE-2-72E offers versatile electrical options to suit various facility requirements. For single-phase installations, the unit draws 35 amps at 208V and requires a 45-amp breaker. At 240V single-phase, it draws 29.2 amps and needs a 40-amp breaker.
For three-phase installations, options include:
- 208V/3-phase: 27.8 amps (35-amp breaker)
- 240V/3-phase: 24.1 amps (35-amp breaker)
- 480V/3-phase: 12.1 amps (20-amp breaker)
- 575V/3-phase: 10.0 amps (15-amp breaker)
Single point power connection is available for simplified installation. The unit ships with factory-mounted single-stage electric heaters.
Selection Assistance
Our product specialists are here to help you decide which industrial air curtain is best for you. Do you need assistance with finding the right one? Fill out the form at the bottom of this page and a product specialist will be in touch shortly.
