| SKU | 70.83.55.NYB | ||
|---|---|---|---|
| Wheel Diameter | 8 Inches | Weight Capacity | 7200 Lbs |
| Wheel Width | 3 Inches | Tread Style | Donut Tread |
| Overall Height | 10-1/2 Inches | Wheel Material | Nylon |
| Core Material | Cast Iron | Bearing Wheel | Ball Bearing |
| Caster Type | Swivel | Mounting type | Large Top Plate |
| Top Plate | 5-1/4 Inches x 7-1/4 Inches | Axle Type | Solid Axle |
| Top Plate Holes | 3-3/8 Inches – 4-1/8 Inches x 5-1/4 Inches – 6-1/8 Inches | Fork Finish | Zinc Plated |

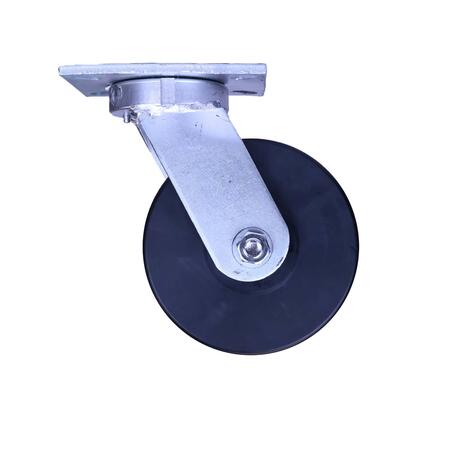

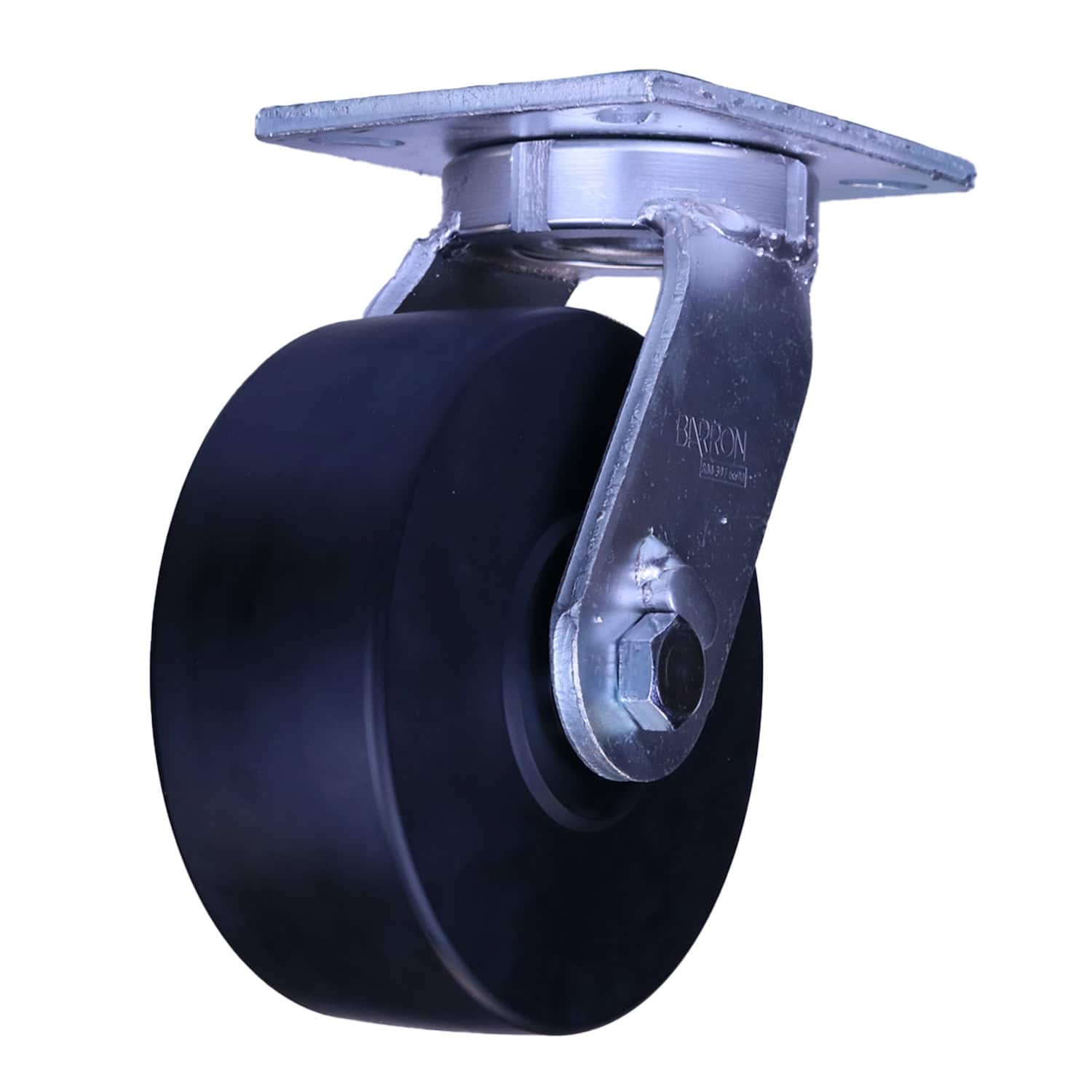

8 Inch Heavy Duty Kingpinless Swivel Caster with Nylon Wheel and Large Top Plate
Nylon Wheel
Ball Bearing
7,200 lbs. Capacity
Overall Height 10-1/2in
Overall Top Plate 5-1/4in x 7-1/4in
Bolt Hole 3-3/8in – 4-1/8in x 5-1/4in – 6-1/8in
$322.02
Product Specification
| Wheel Diameter | |
|---|---|
| Caster Type | |
| Wheel Material | |
| Top Plate Dimensions | |
| Wheel Width | |
| Wheel Brakes | |
| Weight Capacity | |
| Application | |
| Bearing Type | Ball Bearing |
| Overall Height | 10-1/2in |
