Product Specification
| Extended Height | 9-3/4in |
|---|---|
| Retracted Height | 8-1/2in |
| Bolt Hole Dimensions | 2-5/8in – 3in x 3in – 3-5/8in |
| Top Plate Dimensions |

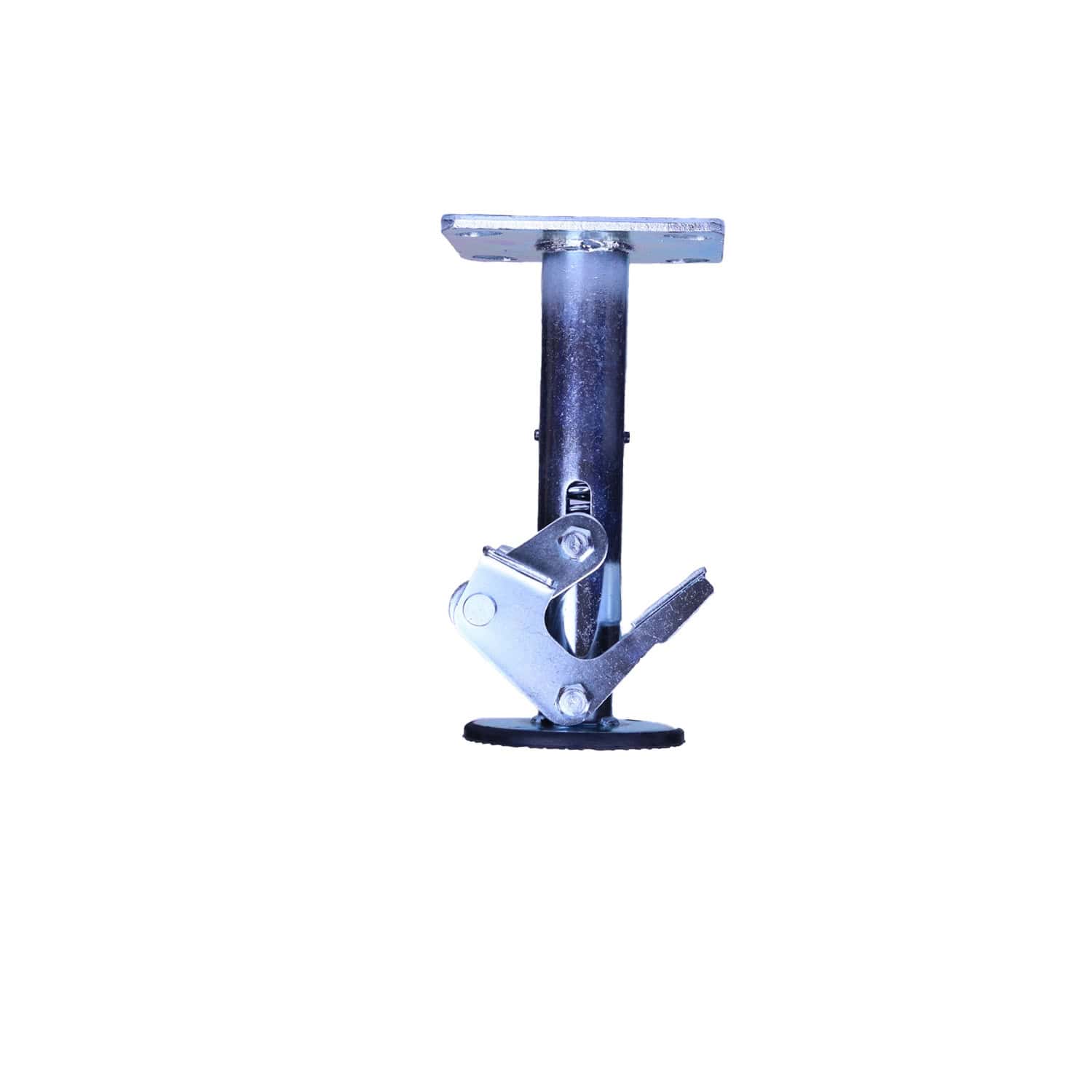

8 Inch Pedal Style Floor Lock
Extended Height 9-3/4in
Retracted Height 8-1/2in
Overall Top Plate 4in x 4-1/2in
Bolt Hole 2-5/8in – 3in x 3in – 3-5/8in
$44.25
Resources
Download File (flp-8_retracted.stp)
Download File (flp-8_extended.stp)
Download File (flp-8_retracted-1.stp)
