Overview

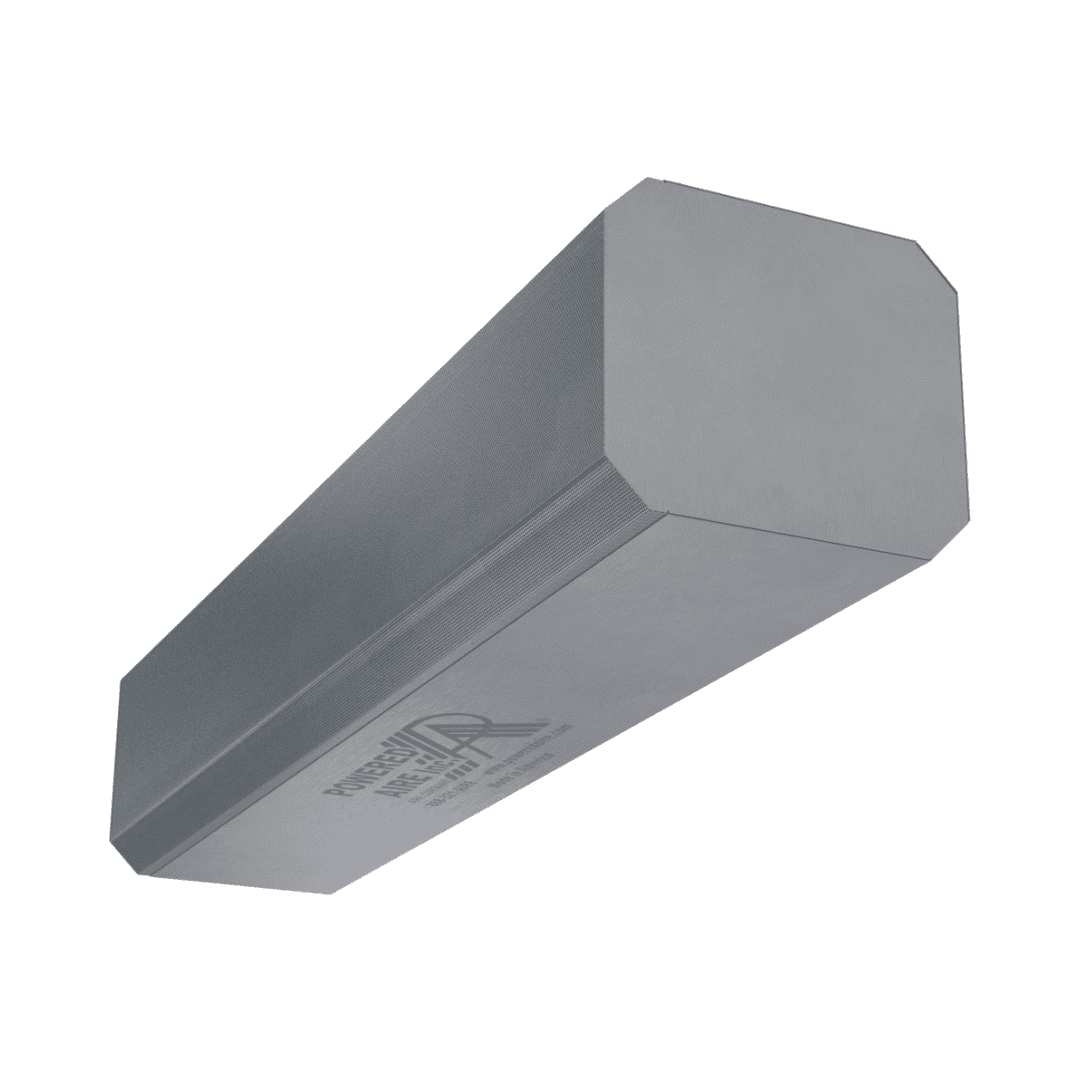

The Powered Aire BCE-2-84E Air Curtain Heater from Barron Equipment creates an effective barrier against outside air infiltration, flying insects, dust, and debris. This powerful 84-inch air curtain enhances energy efficiency by preventing conditioned air from escaping through doorways. Constructed with premium 18-gauge 304 stainless steel with a #3 finish, this unit offers both durability and an aesthetically pleasing appearance for commercial and industrial applications.
The BCE-2-84E features two heavy-duty 3/4 HP motors that deliver superior airflow to effectively seal openings up to 84 inches wide and 12 feet high. With its electric heating capacity, this unit provides additional climate control during colder months while maintaining an invisible barrier that allows for unimpeded traffic flow.
Features and Benefits
This electric air curtain is engineered with dual 3/4 HP ODP (Open Drip Proof) direct-drive motors that provide reliable performance in demanding environments. The high-efficiency discharge plenum comes with an adjustable air foil vane (±20°) for optimal airflow direction tailoring to specific doorway requirements.
The BCE-2-84E includes factory-mounted single-stage electric heaters providing 20kW of heating capacity with a temperature rise of 36°F. The unit offers single point power connection capability for simplified electrical installation. The heating elements are strategically mounted inside the plenum on the discharge side of the blowers, which protects motor life and prevents dust accumulation on heating elements.
Additional features include a stainless steel intake screen and special plenum design that helps make it one of the quietest air curtains in its class, measuring just 63 dBA at high speed from 10 feet away.
For details on the specs of this industrial air curtain, see the table below:
| SKU | Width (in.) | Height (in.) | Weight (lbs.) | Voltage/Phase | Number of Motors |
|---|---|---|---|---|---|
| BCE-2-84E-208/3 | 84 | 8 | 184 | 208/3 | 2 |
| BCE-2-84E-240/3 | 84 | 8 | 184 | 240/3 | 2 |
| BCE-2-84E-480/3 | 84 | 8 | 184 | 480/3 | 2 |
Applications
Our heated air curtains for overhead doors are ideal for a variety of commercial and industrial settings including:
- Loading dock areas with frequent door openings
- Retail environments looking to reduce energy costs
- Commercial kitchens and food service facilities
- Healthcare facility entrances and loading areas
- Warehouses with climate-controlled requirements
Maintenance
For optimal performance, trying following these maintenance steps:
- Inspect the stainless steel exterior for any damage that might indicate internal issues.
- Ensure both motors are operating properly—the motors are permanently lubricated and don't require regular greasing.
- Clean the intake screen regularly by removing and flushing with hot water or steam, allowing it to dry completely before reinstallation.
- Keep the intake grill free from obstruction to ensure proper airflow. The discharge vanes come preset from the factory but can be adjusted (±20°) if environmental conditions require fine-tuning.
Power Requirements
The BCE-2-84E can be configured for various electrical services:
- For 208V/1-phase/60Hz: 3.6 amps per motor with separate supply circuits requiring a 35-amp breaker for electric heat
- For 240V/1-phase/60Hz: Connection includes a total amp draw of 62.7A requiring an 80-amp breaker with single point power
- For 480V/3-phase/60Hz: Operates at 28.1A requiring a 40-amp breaker
- For 575V/3-phase/60Hz: Operates at 23.1A requiring a 30-amp breaker
The total weight of the heated unit is approximately 195 lbs.
