Compact Brush Seal for Thin Door Applications

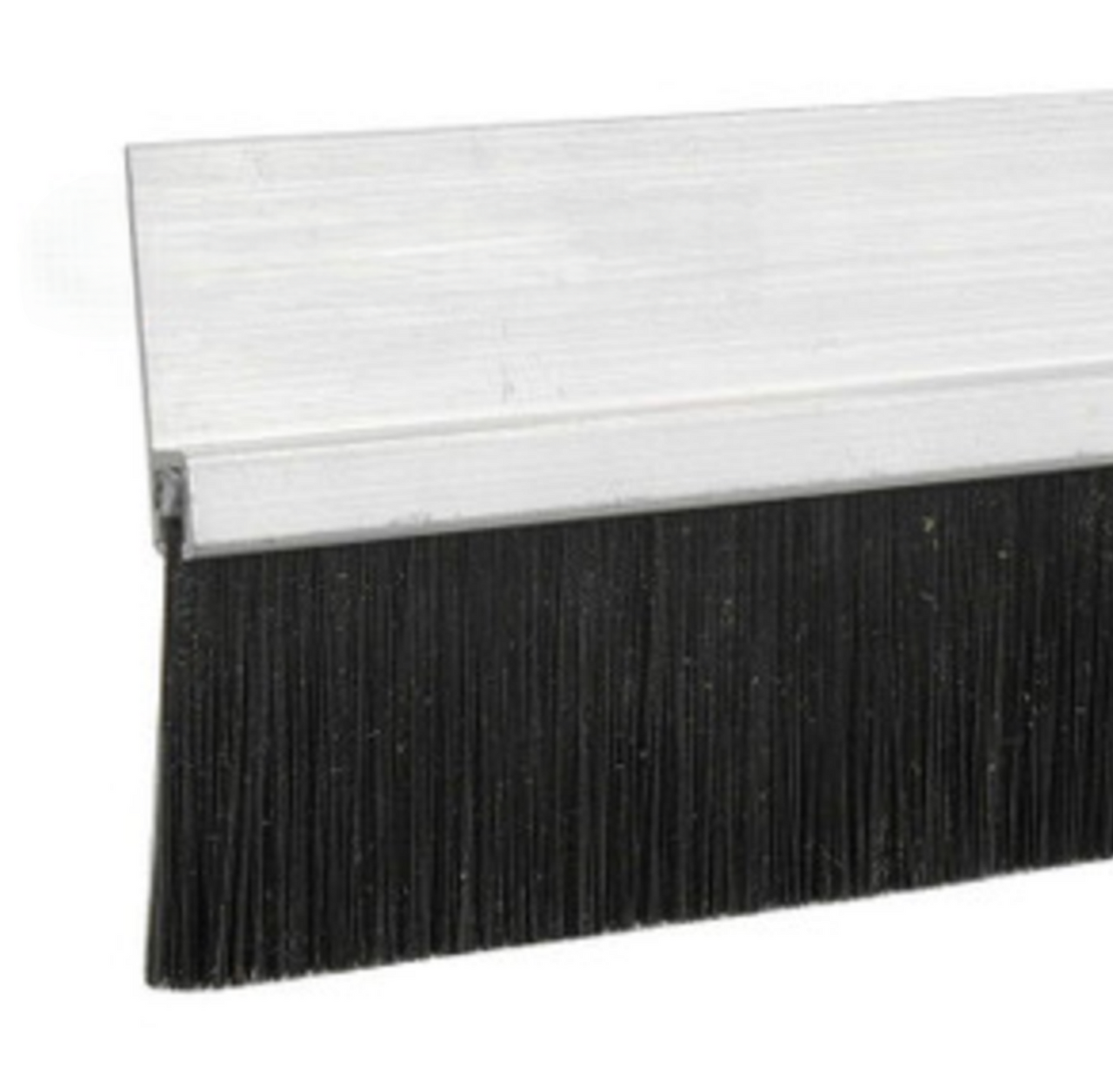

Not every door gap calls for an oversized seal. Slim-line brush seals from Action Industries deliver the same polypropylene bristle performance as their standard and large counterparts but in a narrower profile designed for thin door edges and tight-tolerance gaps. Each seal is built with dense polypropylene filaments wrapped around a metal rod and crimped into a compact spine that fits any slim-line aluminum retainer in the Action Industries lineup.
Available in five bristle widths from 1/2 inch to 2 inches and standard lengths of 6 to 10 feet, these seals close gaps along door sides and tops where standard-channel seals are too bulky. Note that most customers order seals for all four sides of the door opening.
Freeze-Proof Bristles for Year-Round Sealing
Polypropylene filaments set these seals apart from rubber and vinyl alternatives in cold or wet environments. The bristles do not absorb water and will not freeze — even in sub-zero conditions. This means the seal maintains full contact and flexibility through winter temperatures and washdown procedures without cracking or going rigid. For storage facilities and dock doors that face harsh weather exposure, this material choice eliminates the seasonal seal failures that come with rubber or vinyl strips.
The metal rod core anchors every bristle in place and prevents pullout under repeated door contact. Over thousands of open-close cycles, the filaments stay locked in position and continue to provide a consistent barrier against drafts and debris.
Ideal Gap Sizes for Each Bristle Width
The right bristle width depends on the gap between the closed door edge and the frame or jamb. A wider bristle fills a larger gap while a narrower bristle works best where space is limited and over-compression could create drag on the door panel. Here is a general sizing guide for slim-line applications:
- 1/2" Bristle (B2766): The narrowest option — designed for very tight tolerances where minimal bristle contact is needed to create a perimeter barrier.
- 3/4" Bristle (B2767): A step up for slightly wider gaps on thin-edge rolling steel doors and self-storage units.
- 1" Bristle (B2768): A versatile mid-range width suitable for both residential garage doors and light commercial applications.
- 1-1/2" Bristle (B2769): Handles moderate gaps where door panels have shifted or frames are slightly uneven.
- 2" Bristle (B2771): The widest slim-line option for larger gaps that still fall within thin door retainer sizing.
All five widths are compatible with slim-line aluminum retainers from Action Industries. These retainers use a narrow mounting plate and a compact seal channel designed for applications where a standard or large retainer would be too wide for the available mounting surface.
Residential and Commercial Applications
Slim-line brush seals bridge the gap between consumer-grade weatherstripping and heavy industrial sealing products. Their compact profile makes them well suited for self-storage facilities where thin rolling steel doors need perimeter protection from dust and pests. They also work on residential garage doors where homeowners want a more durable and long-lasting alternative to adhesive-backed foam strips that degrade in one or two seasons.
In commercial settings, these seals perform on warehouse entry doors and dock side doors exposed to wind-driven rain and temperature swings. Food processing facilities use polypropylene brush seals on passage doors and service entries where pest exclusion is a regulatory priority. Because the bristles are classified as gasket materials for fire doors by Underwriters Laboratories, they can also be specified on fire-rated openings where code-compliant sealing material is required.
Simple Installation and Replacement
Each slim-line brush seal slides into a compatible retainer channel without fasteners or adhesive. The retainer mounts to the door frame and stays in place permanently. When a seal wears out, the old brush slides out and a new one drops in — no tools and no need to remove the retainer from the frame. This makes routine seal replacement a quick maintenance task that can be handled in-house without scheduling outside service.
For facilities replacing seals across multiple doors or openings where proper fit and contact pressure are critical, Barron Equipment offers professional installation and service through our door and dock equipment team.
