Advance Lifts P-Series Production Lift Tables

Overview

Barron Equipment is proud to offer the Advance Lifts Production P-Series, one of the most trusted lines of electric hydraulic lift tables in the industry. Designed for demanding manufacturing environments, these powered scissor lift tables handle capacities from 2,000 to 8,000 lbs with vertical travel ranging from 24 to 72 inches. Whether your facility requires a compact single-scissors unit or a double-wide, double-long, or double-extra-long configuration, the P-Series delivers reliable performance across a wide range of platform sizes — from 24″ x 36″ up to 72″ x 144″.

Every P-Series unit is engineered around a simple principle: the lowest cost per cycle. While the initial investment in a production-grade lift table may be slightly higher than economy alternatives, the extended service life and reduced downtime translate to significant long-term savings. These are not light-duty units — they are built for facilities that run multi-shift operations and depend on heavy duty material handling equipment day after day.

Features and Benefits

The hallmark of the P-Series is the patented Platform Centering Device, a feature unique to Advance Lifts that has been proven to double or even triple the working life of each unit. This technology keeps the scissor mechanism aligned under load, reducing wear on pivot points and structural components over hundreds of thousands of cycles.

All P-Series controllers are Underwriter Laboratory (UL) listed assemblies, and every table conforms to applicable ANSI safety codes. The cylinders are machine-grade with clear plastic return lines for easy fluid monitoring. Pressure hoses use double wire braid construction with JIC fittings, and the mild steel reservoirs are built to resist the rigors of production floor conditions. Each unit leaves the factory fully primed and finished with a baked enamel coating for lasting corrosion resistance.

Advance Lifts also stands behind the P-Series with warranty options unmatched in the industry. The standard P-Series warranty covers 1 year of parts and labor plus 10 years or 250,000 cycles of structural coverage. For operations that demand even more, Advance offers HC-Series upgrades rated to 1,000,000 cycles and UHC-Series upgrades rated to 3,000,000 cycles. These cycle-based warranties provide honest, transparent coverage — unlike time-only warranties that may exclude high-usage applications.

Available Configurations

The Production P-Series is offered in four platform families to match virtually any workspace requirement:

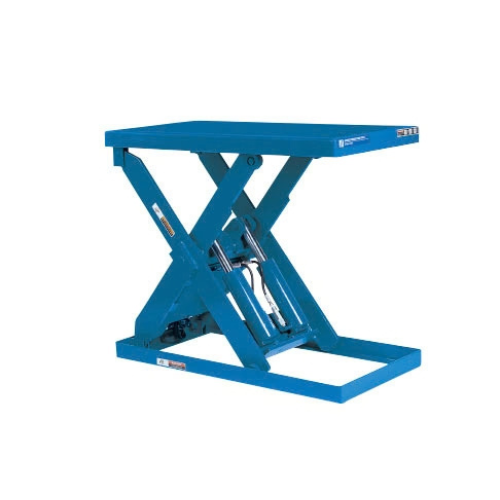

Single Scissors (P, PEW, PVW): 2,000–8,000 lb capacity, 24″–72″ travel, standard platforms from 24″ x 36″ to 48″ x 102″ with optional oversized platforms up to 72″ x 144″.

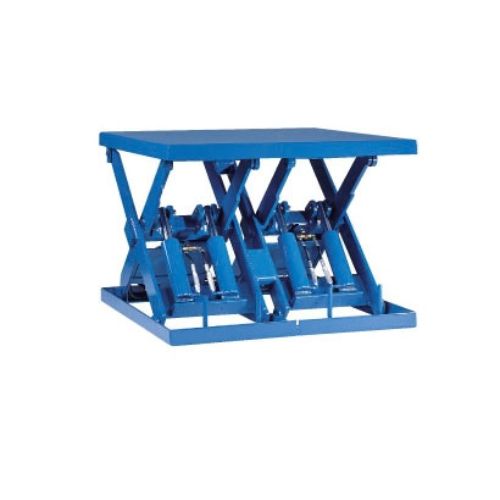

Double Wide: 4,000–9,600 lb capacity, 22″–58″ travel, wider platforms suited for oversized loads and side-loading operations.

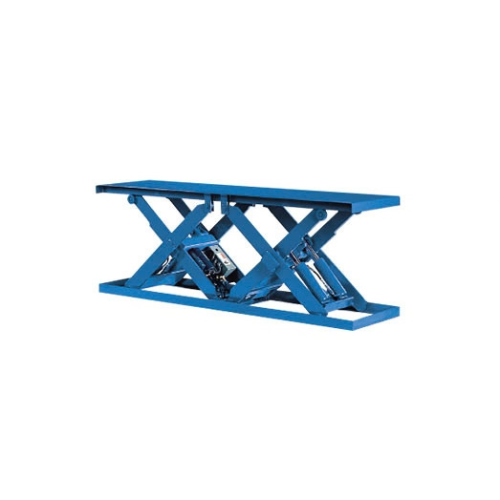

Double Long: 5,000–12,000 lb capacity, 24″–36″ travel, extended platforms from 74″ to 192″ for handling lengthy materials.
Double Extra Long: 5,000–12,000 lb capacity, 48″–60″ travel, platforms spanning 130″ to 366″ for the largest production applications.

Within the single-scissors family, standard (P), extra wide (PEW), and very wide (PVW) baseframe options give you additional flexibility to match your floor space and loading method. Custom configurations and combination units — including lift-and-turn or lift-and-tilt setups — are also available. Stainless steel construction can be specified for washdown or food-grade environments.

Applications

P-Series lift tables are found in production facilities across a wide range of industries. Common applications include assembly line work positioning, die handling, ergonomic load and unload stations, and automated transfer between conveyors and work cells. Their heavy duty construction makes them well suited for metalworking, automotive manufacturing, packaging operations, and distribution centers where high cycle counts are the norm.

Because of the variety in platform size, load capacity, and lifting height, these powered lift tables can serve as dedicated workstation positioners, inline production equipment, or flexible material handling solutions that adapt as your processes evolve.

Request a Quote

The Advance Lifts P-Series is available exclusively through authorized distributors. Barron Equipment can help you identify the right model, capacity, and configuration for your specific requirements. Fill out the form below or contact us directly — our team will respond with a detailed quote and lead time information.

Product Specifications

Single Scissors Production (P) Series Lift Tables

Model	Travel	Capacity	Std Min Platform	Opt. Max. Paltform	Maximum End	Loading Side	Baseframe Size	Lowered Height	Raised Height	Speed Sec.	Motor H.P.	Ship Wt
P-2524	24	2500	24 X 36	48 X 60	2500	2500	24 X 36	6-1/2	30-1/2	12	1-1/2	500
P-4024	24	4000	24 X 36	48 X 60	4000	3000	24 X 36	6-1/2	30-1/2	18	1-1/2	550
P-6024	24	6000	24 X 36	48 X 60	4200	3800	24 X 36	6-1/2	30-1/2	26	1-1/2	560
PEW-2524	24	2500	36 X 36	60 X 60	2500	2500	36 X 36	6-1/2	30-1/2	12	1-1/2	650
PEW-4024	24	4000	36 X 36	60 X 60	4000	3100	36 X 36	6-1/2	30-1/2	18	1-1/2	700
PEW-6024	24	6000	36 X 36	60 X 60	4300	4000	36 X 36	6-1/2	30-1/2	26	1-1/2	710
PVW-2024	24	2000	48 X 36	72 X 60	2000	2000	48 X 36	6-1/2	30-1/2	12	1-1/2	750
PVW-4024	24	4000	48 X 36	72 X 60	4000	3200	48 X 36	6-1/2	30-1/2	18	1-1/2	800
PVW-6024	24	6000	48 X 36	72 X 60	4300	4000	48 X 36	6-1/2	30-1/2	26	1-1/2	815
P-2536	36	2500	24 X 48	48 X 72	2500	2500	24 X 48	6-1/2	42-1/2	13	2	600
P-4036	36	4000	24 X 48	48 X 72	3300	2900	24 X 48	6-1/2	42-1/2	20	2	650
P-6036	36	6000	24 X 48	48 X 72	4100	3500	24 X 48	6-1/2	42-1/2	27	2	680
P-8036	36	8000	26 X 48	48 X 72	4000	3900	26 X 48	7-1/2	43-1/2	33	2	850
PEW-2536	36	2500	36 X 48	60 X 72	2500	2500	36 X 48	6-1/2	42-1/2	13	2	765
PEW-4036	36	4000	36 X 48	60 X 72	3300	3100	36 X 48	6-1/2	42-1/2	20	2	815
PEW-6036	36	6000	36 X 48	60 X 72	4300	3100	36 X 48	6-1/2	42-1/2	27	2	845
PEW-8036	36	8000	36 X 48	60 X 72	4000	3200	36 X 48	7-1/2	43-1/2	33	2	1200
PVW-2036	36	2000	48 X 48	72 X 72	2000	2000	48 X 48	6-1/2	42-1/2	13	2	870
PVW-4036	36	4000	48 X 48	72 X 72	3300	3100	48 X 48	6-1/2	42-1/2	20	2	920
PVW-6036	36	6000	48 X 48	72 X 72	4300	3800	48 X 48	6-1/2	42-1/2	27	2	945
PVW-8036	36	8000	48 X 48	72 X 72	4000	2600	48 X 48	7-1/2	43-1/2	33	2	1350
P-2548	48	2500	24 X 64	48 X 96	2500	2200	24 X 64	7	55	19	2	730
P-4048	48	4000	24 X 64	48 X 96	3500	2800	24 X 64	7	55	28	2	830
P-6048	48	6000	24 X 64	48 X 96	3500	3000	24 X 64	7	55	38	2	850
P-8048	48	8000	26 X 64	48 X 96	4000	3900	26 X 64	8-3/4	56-3/4	44	2	1150
PEW-2548	48	2500	36 X 64	60 X 96	2500	2300	36 X 64	7	55	19	2	920
PEW-4048	48	4000	36 X 64	60 X 96	3400	3000	36 X 64	7	55	28	2	1015
PEW-6048	48	6000	36 X 64	60 X 96	3400	3000	36 X 64	7	55	38	2	1040
PEW-8048	48	8000	36 X 64	60 X 96	4000	3200	36 X 64	8-3/4	56-3/4	44	2	1600
PVW-2048	48	2000	48 X 64	72 X 96	2000	2000	48 X 64	7	55	19	2	1040
PVW-4048	48	4000	48 X 64	72 X 96	3400	3100	48 X 64	7	55	28	2	1135
PVW-6048	48	6000	48 X 64	72 X 96	3400	3000	48 X 64	7	55	38	2	1150
PVW-8048	48	8000	48 X 64	72 X 96	4000	2600	48 X 64	8-3/4	56-3/4	44	2	1800
P-2560	60	2500	24 X 84	48 X 120	2500	2500	24 X 84	10	70	28	2	1000
P-4060	60	4000	24 X 84	48 X 120	4000	4000	24 X 84	10	70	42	2	1150
P-6060	60	6000	24 X 84	48 X 120	5700	4000	24 X 84	10	70	57	2	1175
P-8060	60	8000	26 X 84	48 X 120	4000	3700	26 X 84	10	70	64	2	1450
PEW-2560	60	2500	36 X 84	60 X 120	2500	2500	36 X 84	10	70	29	2	1210
PEW-4060	60	4000	36 X 84	60 X 120	4000	4000	36 X 84	10	70	42	2	1335
PEW-6060	60	6000	36 X 84	60 X 120	5700	4400	36 X 84	10	70	57	2	1365
PEW-8060	60	8000	36 X 84	60 X 120	4000	3500	36 X 84	10	70	64	2	2000
PVW-2060	60	2000	48 X 84	72 X 120	2000	2500	48 X 84	10	70	29	2	1365
PVW-4060	60	4000	48 X 84	72 X 120	4000	4000	48 X 84	10	70	42	2	1490
PVW-6060	60	6000	48 X 84	72 X 120	5600	4500	48 X 84	10	70	57	2	1510
PVW-8060	60	8000	48 X 84	72 X 120	4000	2900	48 X 84	10	70	64	2	2200
P-2572	72	2500	26 X 102	48 X 144	2500	2000	26 X 102	10	82	31	2	1250
P-4072	72	4000	26 X 102	48 X 144	4000	2000	26 X 102	10	82	61	2	1300
P-6072	72	6000	26 X 102	48 X 144	4000	3000	26 X 102	10	82	82	2	1400
PEW-2572	72	2500	36 X 102	60 X 144	2500	2000	36 X 102	10	82	31	2	1500
PEW-4072	72	4000	36 X 102	60 X 144	4000	2000	36 X 102	10	82	61	2	1575
PEW-6072	72	6000	36 X 102	60 X 144	4000	3000	36 X 102	10	82	82	2	1675
PVW-2072	72	2000	48 X 102	72 X 144	2000	2000	48 X 102	10	82	31	2	1575
PVW-4072	72	4000	48 X 102	72 X 144	4000	2000	48 X 102	10	82	61	2	1625
PVW-6072	72	6000	48 X 102	72 X 144	4000	3000	48 X 102	10	82	82	2	1750

Double Wide Production (PDW) Series Lift Tables

Model	Travel	Capacity	Std Min Platform	Opt. Max. Paltform	Maximum End	Loading Side	Baseframe Size	Lowered Height	Raised Height	Speed Sec.	Motor H.P.	Ship Wt
PDW-4022	22	4000	48 X 36	72 X 60	5000	3000	48 X 36	8-1/2	30-1/2	20	1-1/2	1000
PDW-6422	22	6400	48 X 36	72 X 60	8000	3600	48 X 36	8-1/2	30-1/2	30	1-1/2	1100
PDW-9622	22	9600	48 X 36	72 X 60	8400	4500	48 X 36	8-1/2	30-1/2	44	1-1/2	1120
PEDW-4022	22	4000	72 X 36	96 X 60	5000	3000	72 X 36	8-1/2	30-1/2	20	1-1/2	1300
PEDW-6422	22	6400	72 X 36	96 X 60	8000	3700	72 X 36	8-1/2	30-1/2	30	1-1/2	1400
PEDW-9622	22	9600	72 X 36	96 X 60	8600	4800	72 X 36	8-1/2	30-1/2	44	1-1/2	1420
PVDW-3222	22	3200	96 X 36	120 X 60	4000	2400	96 X 36	8-1/2	30-1/2	20	1-1/2	1500
PVDW-6422	22	6400	96 X 36	120 X 60	8000	3800	96 X 36	8-1/2	30-1/2	30	1-1/2	1600
PVDW-9622	22	9600	96 X 36	120 X 60	8600	4800	96 X 36	8-1/2	30-1/2	44	1-1/2	1630
PDW-4034	34	4000	48 X 48	72 X 72	5000	3000	48 X 48	8-1/2	42-1/2	22	2	1200
PDW-6434	34	6400	48 X 48	72 X 72	6600	3400	48 X 48	8-1/2	42-1/2	34	2	1300
PDW-9634	34	9600	48 X 48	72 X 72	8200	4200	48 X 48	8-1/2	42-1/2	46	2	1360
PEDW-4034	34	4000	72 X 48	96 X 72	5000	3000	72 X 48	8-1/2	42-1/2	22	2	1530
PEDW-6434	34	6400	72 X 48	96 X 72	6600	3700	72 X 48	8-1/2	42-1/2	34	2	1630
PEDW-9634	34	9600	72 X 48	96 X 72	8600	4400	72 X 48	8-1/2	42-1/2	46	2	1690
PVDW-3234	34	3200	96 X 48	120 X 72	3200	2400	96 X 48	8-1/2	42-1/2	22	2	1740
PVDW-6434	34	6400	96 X 48	120 X 72	6600	3700	96 X 48	8-1/2	42-1/2	34	2	1840
PVDW-9634	34	9600	96 X 48	120 X 72	8600	4500	96 X 48	8-1/2	42-1/2	46	2	1890
PDW-4046	46	4000	48 X 64	72 X 96	5000	2600	48 X 64	9	55	38	2	1460
PDW-6446	46	6400	48 X 64	72 X 96	7000	3300	48 X 64	9	55	56	2	1660
PDW-9646	46	9600	48 X 64	72 X 96	7000	3600	48 X 64	9	55	76	2	1700
PEDW-4046	46	4000	72 X 64	96 X 96	5000	2700	72 X 64	9	55	38	2	1840
PEDW-6446	46	6400	72 X 64	96 X 96	6800	3600	72 X 64	9	55	56	2	2030
PEDW-9646	46	9600	72 X 64	96 X 96	6800	3600	72 X 64	9	55	76	2	2080
PVDW-3246	46	3200	96 X 64	120 X 96	4000	2400	96 X 64	9	55	38	2	2080
PVDW-6446	46	6400	96 X 64	120 X 96	6800	3700	96 X 64	9	55	56	2	2270
PVDW-9646	46	9600	96 X 64	120 X 96	6800	3600	96 X 64	9	55	76	2	2300
PDW-4058	58	4000	48 X 84	72 X 120	5000	3000	48 X 84	12	70	56	2	2000
PDW-6458	58	6400	48 X 84	72 X 120	8000	4800	48 X 84	12	70	84	2	2300
PDW-9658	58	9600	48 X 84	72 X 120	11400	4800	48 X 84	12	70	114	2	2350
PEDW-4058	58	4000	72 X 84	96 X 120	5000	3000	72 X 84	12	70	56	2	2420
PEDW-6458	58	6400	72 X 84	96 X 120	8000	4800	72 X 84	12	70	84	2	2670
PEDW-9658	58	9600	72 X 84	96 X 120	11400	5200	72 X 84	12	70	114	2	2730
PVDW-4058	58	4000	96 X 84	120 X 120	5000	3000	96 X 84	12	70	56	2	2730
PVDW-6458	58	6400	96 X 84	120 X 120	8000	4800	96 X 84	12	70	84	2	2980
PVDW-9658	58	9600	96 X 84	120 X 120	11200	5400	96 X 84	12	70	114	2	3020

Double Long Production (PDL) Series Lift Tables

Model	Travel	Capacity	Std Min Platform	Opt. Max. Paltform	Maximum End	Loading Side	Baseframe Size	Lowered Height	Raised Height	Speed Sec.	Motor H.P.	Ship Wt	Length
PDL-5024	24	5000	24 X 74	48 X 98	2500	5000	24 X 74	6-1/2	30-1/2	20	1-1/2	1000	74"-98"
PDL-8024	24	8000	24 X 74	48 X 98	4000	6000	24 X 74	6-1/2	30-1/2	30	1-1/2	1100	74"-98"
PDL-12024	24	12000	24 X 74	48 X 98	4200	7600	24 X 74	6-1/2	30-1/2	44	1-1/2	1120	74"-98"
PEWDL-5024	24	5000	36 X 74	60 X 98	2500	5000	36 X 74	6-1/2	30-1/2	22	1-1/2	1300	74"-98"
PEWDL-8024	24	8000	36 X 74	60 X 98	4000	6200	36 X 74	6-1/2	30-1/2	32	1-1/2	1400	74"-98"
PEWDL-12024	24	12000	36 X 74	60 X 98	4300	8000	36 X 74	6-1/2	30-1/2	46	1-1/2	1420	74"-98"
PVWDL-4024	24	4000	48 X 74	72 X 98	2000	4000	48 X 74	6-1/2	30-1/2	24	1-1/2	1500	74"-98"
PVWDL-8024	24	8000	48 X 74	72 X 98	4000	6400	48 X 74	6-1/2	30-1/2	32	1-1/2	1600	74"-98"
PVWDL-12024	24	12000	48 X 74	72 X 98	4300	8000	48 X 74	6-1/2	30-1/2	46	1-1/2	1630	74"-98"
PEDL-5024	24	5000	24 X 84	48 X 108	2500	5000	24 X 84	6-1/2	30-1/2	20	1-1/2	1070	84″-108″
PEDL-8024	24	8000	24 X 84	48 X 108	4000	6000	24 X 84	6-1/2	30-1/2	30	1-1/2	1170	84″-108″
PEDL-12024	24	12000	24 X 84	48 X 108	4200	7400	24 X 84	6-1/2	30-1/2	44	1-1/2	1190	84″-108″
PEWEDL-5024	24	5000	36 X 84	60 X 108	2500	5000	36 X 84	6-1/2	30-1/2	22	1-1/2	1390	84″-108″
PEWEDL-8024	24	8000	36 X 84	60 X 108	4000	6200	36 X 84	6-1/2	30-1/2	32	1-1/2	1490	84″-108″
PEWEDL-12024	24	12000	36 X 84	60 X 108	4300	7800	36 X 84	6-1/2	30-1/2	46	1-1/2	1510	84″-108″
PVWEDL-4024	24	4000	48 X 84	72 X 108	2000	4000	48 X 84	6-1/2	30-1/2	24	1-1/2	1600	84″-108″
PVWEDL-8024	24	8000	48 X 84	72 X 108	4000	6200	48 X 84	6-1/2	30-1/2	32	1-1/2	1700	84″-108″
PVWEDL-12024	24	12000	48 X 84	72 X 108	4300	8000	48 X 84	6-1/2	30-1/2	46	1-1/2	1730	84″-108″
PVDL-5024	24	5000	24 X 108	48 X 144	2500	5000	24 X 108	6-1/2	30-1/2	20	1-1/2	1150	108"-144"
PVDL-8024	24	8000	24 X 108	48 X 144	4000	6000	24 X 108	7	31	30	1-1/2	1310	108"-144"
PVDL-12024	24	12000	24 X 108	48 X 144	4200	7400	24 X 108	7-1/2	31-1/2	44	1-1/2	1330	108"-144"
PEWVDL-5024	24	5000	36 X 108	60 X 144	2500	5000	36 X 108	6-1/2	30-1/2	22	1-1/2	1700	108"-144"
PEWVDL-8024	24	8000	36 X 108	60 X 144	4000	6200	36 X 108	7	31	32	1-1/2	1830	108"-144"
PEWVDL-12024	24	12000	36 X 108	60 X 144	4300	7800	36 X 108	7-1/2	31-1/2	46	1-1/2	1920	108"-144"
PVWVDL-4024	24	4000	48 X 108	72 X 144	2000	4000	48 X 108	6-1/2	30-1/2	24	1-1/2	1940	108"-144"
PVWVDL-8024	24	8000	48 X 108	72 X 144	4000	6200	48 X 108	7	31	32	1-1/2	2070	108"-144"
PVWVDL-12024	24	12000	48 X 108	72 X 144	4300	7800	48 X 108	7-1/2	31-1/2	46	1-1/2	2160	108"-144"
PDL-5036	36	5000	24 X 98	48 X 122	2500	5000	24 X 98	6-1/2	42-1/2	22	2	1200	98″-122″
PDL-8036	36	8000	24 X 98	48 X 122	3300	5800	24 X 98	6-1/2	42-1/2	34	2	1320	98″-122″
PDL-12036	36	12000	24 X 98	48 X 122	4100	7000	24 X 98	6-1/2	42-1/2	46	2	1380	98″-122″
PEWDL-5036	36	5000	36 X 98	60 X 122	2500	5000	36 X 98	6-1/2	42-1/2	24	2	1550	98″-122″
PEWDL-8036	36	8000	36 X 98	60 X 122	3300	6000	36 X 98	6-1/2	42-1/2	36	2	1650	98″-122″
PEWDL-12036	36	12000	36 X 98	60 X 122	4300	7400	36 X 98	6-1/2	42-1/2	48	2	1710	98″-122″
PVWDL-4036	36	4000	48 X 98	72 X 122	2000	4000	48 X 98	6-1/2	42-1/2	24	2	1760	98″-122″
PVWDL-8036	36	8000	48 X 98	72 X 122	3300	6200	48 X 98	6-1/2	42-1/2	36	2	1860	98″-122″
PVWDL-12036	36	12000	48 X 98	72 X 122	4300	7400	48 X 98	6-1/2	42-1/2	48	2	1910	98″-122″
PEDL-5036	36	5000	24 X 120	48 X 144	2500	5000	24 X 120	6-1/2	42-1/2	22	2	1350	120"-144"
PEDL-8036	36	8000	24 X 120	48 X 144	3300	5800	24 X 120	6-1/2	42-1/2	34	2	1400	120"-144"
PEDL-12036	36	12000	24 X 120	48 X 144	4100	7000	24 X 120	7	43	46	2	1500	120"-144"
PEWEDL-5036	36	5000	36 X 120	60 X 144	2500	5000	36 X 120	6-1/2	42-1/2	24	2	1650	120"-144"
PEWEDL-8036	36	8000	36 X 120	60 X 144	3300	6000	36 X 120	6-1/2	42-1/2	36	2	1750	120"-144"
PEWEDL-12036	36	12000	36 X 120	60 X 144	4300	7400	36 X 120	7	43	48	2	1850	120"-144"
PVWEDL-4036	36	4000	48 X 120	72 X 144	2000	4000	48 X 120	6-1/2	42-1/2	24	2	1880	120"-144"
PVWEDL-8036	36	8000	48 X 120	72 X 144	3300	6200	48 X 120	6-1/2	42-1/2	36	2	1980	120"-144"
PVWEDL-12036	36	12000	48 X 120	72 X 144	4300	7400	48 X 120	7	43	48	2	2070	120"-144"
PVDL-5036	36	5000	24 X 144	48 X 192	2500	4800	24 X 144	6-1/2	42-1/2	22	2	1450	144″-192″
PVDL-8036	36	8000	24 X 144	48 X 192	3300	5800	24 X 144	7-1/2	43-1/2	34	2	1580	144″-192″
PVDL-12036	36	12000	24 X 144	48 X 192	4100	7000	24 X 144	8	44	46	2	1680	144″-192″
PEWVDL-5036	36	5000	36 X 144	60 X 192	2500	5000	36 X 144	6-1/2	42-1/2	24	2	1770	144″-192″
PEWVDL-8036	36	8000	36 X 144	60 X 192	3200	6000	36 X 144	7-1/2	43-1/2	36	2	1950	144″-192″
PEWVDL-12036	36	12000	36 X 144	60 X 192	3900	7200	36 X 144	8	44	48	2	2050	144″-192″
PVWVDL-4036	36	4000	48 X 144	72 X 192	2000	4000	48 X 144	6-1/2	42-1/2	24	2	2020	144″-192″
PVWVDL-8036	36	8000	48 X 144	72 X 192	3200	6000	48 X 144	7-1/2	43-1/2	36	2	2210	144″-192″
PVWVDL-12036	36	12000	48 X 144	72 X 192	3900	7400	48 X 144	8	44	48	2	2300	144″-192″

Double Extra Long Production (PDL) Series Lift Tables

Model	Travel	Capacity	Std Min Platform	Opt. Max. Paltform	Maximum End	Loading Side	Baseframe Size	Lowered Height	Raised Height	Speed Sec.	Motor H.P.	Ship Wt	Length
PDL-5048	48	5000	24 X 130	48 X 160	2500	4400	24 X 130	7	55	36	2	1540	130″-160″
PDL-8048	48	8000	24 X 130	48 X 160	3500	5600	24 X 130	7	55	54	2	1680	130″-160″
PDL-12048	48	12000	24 X 130	48 X 160	3500	5600	24 X 130	7	55	74	2	1720	130″-160″
PEWDL-5048	48	5000	36 X 130	60 X 160	2500	4600	36 X 130	7	55	38	2	1860	130″-160″
PEWDL-8048	48	8000	36 X 130	60 X 160	3400	6000	36 X 130	7	55	56	2	2050	130″-160″
PEWDL-11848	48	11800	36 X 130	60 X 160	3400	6000	36 X 130	7	55	76	2	2100	130″-160″
PVWDL-4048	48	4000	48 X 130	72 X 160	2000	4000	48 X 130	7	55	38	2	2100	130″-160″
PVWDL-8048	48	8000	48 X 130	72 X 160	3400	6000	48 X 130	7	55	56	2	2290	130″-160″
PVWDL-11648	48	11600	48 X 130	72 X 160	3400	6000	48 X 130	7	55	76	2	2320	130″-160″
PEDL-5048	48	5000	24 X 160	48 X 192	2500	4400	24 X 160	7	55	36	2	1660	160″-192″
PEDL-8048	48	8000	24 X 160	48 X 192	3400	5400	24 X 160	7-1/2	55-1/2	54	2	1860	160″-192″
PEDL-11848	48	11800	24 X 160	48 X 192	3400	5600	24 X 160	8	56	74	2	1900	160″-192″
PEWEDL-5048	48	5000	36 X 160	60 X 192	2500	4600	36 X 160	7	55	38	2	2000	160″-192″
PEWEDL-8048	48	8000	36 X 160	60 X 192	3400	6000	36 X 160	7-1/2	55-1/2	56	2	2210	160″-192″
PEWEDL-11648	48	11600	36 X 160	60 X 192	3400	6000	36 X 160	8	56	76	2	2300	160″-192″
PVWEDL-4048	48	4000	48 X 160	72 X 192	2000	4000	48 X 160	7	55	38	2	2270	160″-192″
PVWEDL-8048	48	8000	48 X 160	72 X 192	3200	6000	48 X 160	7-1/2	55-1/2	56	2	2480	160″-192″
PVWEDL-11448	48	11400	48 X 160	72 X 192	3300	6000	48 X 160	8	56	76	2	2560	160″-192″
PVDL-4848	48	4800	24 X 192	48 X 256	2400	4200	24 X 192	7	55	36	2	1800	192″-256″
PVDL-8048	48	8000	24 X 192	48 X 256	3400	5400	24 X 192	8	56	54	2	2040	192″-256″
PVDL-11448	48	11400	24 X 192	48 X 256	3300	5400	24 X 192	9	57	74	2	2180	192″-256″
PEWVDL-4848	48	4800	36 X 192	60 X 256	2400	4600	36 X 192	7	55	40	2	2170	192″-256″
PEWVDL-8048	48	8000	36 X 192	60 X 256	3300	5800	36 X 192	8	56	56	2	2470	192″-256″
PEWVDL-11248	48	11200	36 X 192	60 X 256	3300	5800	36 X 192	9	57	76	2	2620	192″-256″
PVWVDL-4048	48	4000	48 X 192	72 X 256	2000	4000	48 X 192	7	55	40	2	2470	192″-256″
PVWVDL-8048	48	8000	48 X 192	72 X 256	3300	6000	48 X 192	8	56	56	2	2770	192″-256″
PVWVDL-11048	48	11000	48 X 192	72 X 256	3200	5800	48 X 192	9	57	76	2	2900	192″-256″
PDL-5060	60	5000	24 X 170	48 X 212	3300	5600	24 X 170	10	70	58	2	2100	170″-212″
PDL-8060	60	8000	24 X 170	48 X 212	5600	8000	24 X 170	10	70	84	2	2300	170″-212″
PDL-12060	60	12000	24 X 170	48 X 212	5700	8000	24 X 170	10	70	114	2	2350	170″-212″
PEWDL-5060	60	5000	36 X 170	60 X 212	2900	5000	36 X 170	10	70	59	2	2560	170″-212″
PEWDL-8060	60	8000	36 X 170	60 X 212	5600	8000	36 X 170	10	70	85	2	2680	170″-212″
PEWDL-12060	60	12000	36 X 170	60 X 212	5700	8800	36 X 170	10	70	115	2	2740	170″-212″
PVWDL-5060	60	5000	48 X 170	72 X 212	2800	5000	48 X 170	10	70	60	2	2905	170″-212″
PVWDL-8060	60	8000	48 X 170	72 X 212	5600	9000	48 X 170	10	70	86	2	2995	170″-212″
PVWDL-12060	60	12000	48 X 170	72 X 212	5600	9000	48 X 170	10	70	116	2	3035	170″-212″
PEDL-5060	60	5000	24 X 212	48 X 254	3300	5600	24 X 212	10	70	58	2	2300	212″-254″
PEDL-8060	60	8000	24 X 212	48 X 254	5600	8000	24 X 212	10	70	84	2	2510	212″-254″
PEDL-12060	60	12000	24 X 212	48 X 254	5700	8000	24 X 212	10	70	114	2	2560	212″-254″
PEWEDL-4860	60	4800	36 X 212	60 X 254	2400	4800	36 X 212	10	70	59	2	2790	212″-254″
PEWEDL-8060	60	8000	36 X 212	60 X 254	5600	8600	36 X 212	10	70	85	2	2920	212″-254″
PEWEDL-12060	60	12000	36 X 212	60 X 254	5600	8600	36 X 212	10	70	115	2	2980	212″-254″
PVWEDL-4860	60	4800	48 X 212	72 X 254	2300	4600	48 X 212	10	70	60	2	3170	212″-254″
PVWEDL-8060	60	8000	48 X 212	72 X 254	5600	8800	48 X 212	10	70	86	2	3270	212″-254″
PVWEDL-12060	60	12000	48 X 212	72 X 254	5600	8800	48 X 212	10	70	116	2	3310	212″-254″
PVDL-5060	60	5000	24 X 252	48 X 336	3200	5600	24 X 252	10	70	59	2	2485	252″-336″
PVDL-8060	60	8000	24 X 252	48 X 336	5600	8000	24 X 252	10	70	85	2	2710	252″-336″
PVDL-12060	60	12000	24 X 252	48 X 336	5600	7800	24 X 252	11	71	115	2	2890	252″-336″
PEWVDL-4660	60	4600	36 X 252	60 X 336	2300	4600	36 X 252	10	70	60	2	3010	252″-336″
PEWVDL-8060	60	8000	36 X 252	60 X 336	5600	8600	36 X 252	10	70	86	2	3130	252″-336″
PEWVDL-12060	60	12000	36 X 252	60 X 336	5500	8600	36 X 252	11	71	116	2	3345	252″-336″
PVWVDL-4460	60	4400	48 X 252	72 X 336	2200	4400	48 X 252	10	70	61	2	3430	252″-336″
PVWVDL-8060	60	8000	48 X 252	72 X 336	5500	8800	48 X 252	10	70	86	2	3530	252″-336″
PVWVDL-12060	60	12000	48 X 252	72 X 336	5500	8600	48 X 252	11	71	117	2	3710	252″-336″

FAQs

What capacity range does the Advance Lifts P-Series cover?

The Production P-Series offers load capacities from 2,000 lbs to 8,000 lbs for single-scissors models and up to 12,000 lbs for double-long and double-extra-long configurations. The right capacity depends on the weight of the load, the loading method (end loading vs. side loading), and whether the load is centered or offset on the platform.

How does the Platform Centering Device extend lift table life?

The patented Platform Centering Device keeps the scissor mechanism properly aligned during each lifting cycle, which reduces uneven stress on the structural components and pivot points. This feature has been shown to extend the working life of the unit by two to three times compared to standard designs, contributing directly to a lower overall cost per cycle.

What warranty comes with the P-Series production lift tables?

Standard P-Series units include a 1-year parts-and-labor warranty along with a 10-year or 250,000-cycle structural warranty. For higher-demand applications, Advance Lifts offers optional HC-Series coverage (10 years / 1,000,000 cycles) and UHC-Series coverage (10 years / 3,000,000 cycles). These cycle-rated warranties ensure coverage reflects actual usage rather than calendar time alone.

Can the P-Series be customized for specific manufacturing environments?

Yes. Advance Lifts offers a wide range of options including stainless steel construction for washdown or corrosive environments, lift-and-turn or lift-and-tilt combinations for complex positioning needs, and custom platform sizes beyond the standard catalog. If a standard or combined unit does not meet your needs, Advance Lifts will quote a fully custom-engineered solution.

What is the expected life of a P-Series lift table beyond the warranty?

When installed and applied properly, the expected service life of a P-Series lift table is typically three to four times the warranty cycle rating. Advance Lifts publishes an application guide to help ensure each unit is matched to the right duty cycle, which maximizes both performance and longevity.

Advance Lifts P-Series Production Scissor Lift Tables

Overview

Features and Benefits

Available Configurations

Applications

Request a Quote

Product Specifications

Single Scissors Production (P) Series Lift Tables

Double Wide Production (PDW) Series Lift Tables

Double Long Production (PDL) Series Lift Tables

Double Extra Long Production (PDL) Series Lift Tables

FAQs

What capacity range does the Advance Lifts P-Series cover?

How does the Platform Centering Device extend lift table life?

What warranty comes with the P-Series production lift tables?

Can the P-Series be customized for specific manufacturing environments?

What is the expected life of a P-Series lift table beyond the warranty?

Request a Quote

Summary
