Overview
Barron Equipment offers the Advance Lifts Pallet Pro line of self-leveling palletizers for facilities that need an ergonomic, efficient approach to palletizing and depalletizing. Unlike powered scissor lift tables that require manual controls to adjust height, self-leveling palletizers automatically raise or lower the platform as items are added or removed from the pallet. This keeps the working height consistent throughout the loading or unloading process, reducing bending, reaching, and operator fatigue.
The Pallet Pro series is available in three distinct configurations — mechanical, pneumatic, and electric/hydraulic — so you can match the unit to your power availability, budget, and positioning precision requirements. All three styles share a common set of safety and durability features, including a finger-protected rotating turntable, a solid platform beneath the turntable to protect internal components, and a fully primed baked enamel finish for lasting corrosion resistance.
Available Configurations
Each Pallet Pro model addresses a different operational need. The right choice depends on your facility’s power infrastructure, how precisely you need to control platform height, and whether the unit needs to be relocated frequently.

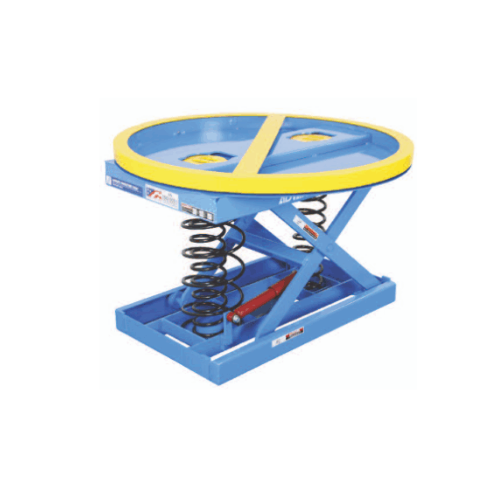

The SL-S Mechanical Self-Leveling Palletizer is the most cost-efficient option and requires no electrical or air connections. It operates entirely on spring power — select the appropriate spring set for your load range, and the unit automatically levels as weight is added or removed. This model is completely maintenance-free, comes equipped with three powder-coated springs for corrosion resistance, and can be placed anywhere in your facility without utility planning. Advance Lifts backs this model with a lifetime structural warranty.

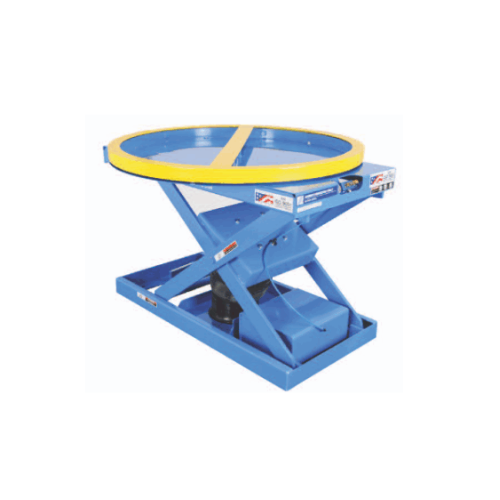

The SL-P Pneumatic Self-Leveling Palletizer uses a Firestone air spring instead of mechanical springs, giving operators the ability to fine-tune leveling behavior by adjusting air pressure via a built-in gauge and bleed valve. Like the mechanical model, this palletizer is free-standing and requires no electrical connections — only a compressed air supply. It is ideal for environments where load weights vary frequently and the operator needs to adapt leveling response on the fly. This model carries a 10-year structural warranty.

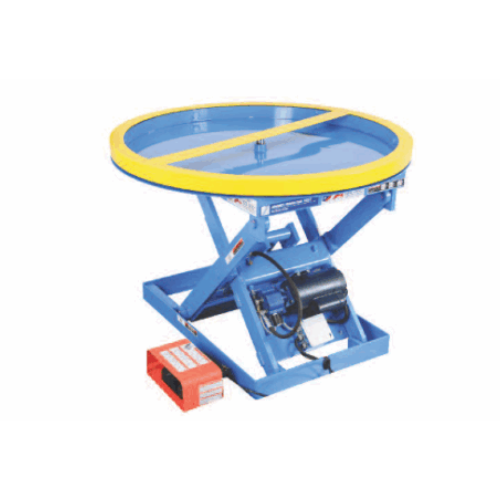

The PL-2524 and PL-4024 Series Electric/Hydraulic Palletizers are the right choice when exact vertical positioning is required. A foot switch provides hands-free operation, allowing the operator to raise or lower the platform to their preferred working height with precision. These units run on standard 110V power, making them easy to deploy in virtually any facility. All controllers are Underwriter Laboratory (UL) listed, and the units include the patented Platform Centering Device for extended service life. The electric/hydraulic models carry a 10-year structural warranty.
Features and Benefits
Every Pallet Pro model is built around the same core design principles that define the Advance Lifts product line. The finger-protected rotating turntable allows operators to turn the pallet without leaving their station, reducing unnecessary reaching and twisting. A solid platform sits beneath the turntable to shield internal mechanisms from debris and damage. Built-in fork truck pick-up points make it easy to relocate any model using a standard pallet jack or fork truck — no disassembly or rigging required.
The self-leveling function is the primary ergonomic benefit. By automatically adjusting the platform height as items are loaded or unloaded, these palletizers keep the top layer of the pallet at a consistent working height throughout the process. This eliminates the deep bending required at the start of a palletizing task and the overhead reaching required at the end — two of the most common causes of workplace strain injuries in manual palletizing operations.
All models conform to applicable ANSI codes and are finished with a baked enamel coating for durability in demanding industrial environments.
Applications
Self-leveling palletizers are used wherever workers manually build or break down pallets on a regular basis. Common applications include order fulfillment and pick-and-pack stations, end-of-line palletizing in manufacturing, receiving and depalletizing in warehouses and distribution centers, and packaging operations where cartons, cases, or containers are stacked by hand. The rotating turntable makes these units especially valuable in tight spaces where the operator cannot walk around the pallet to access all four sides.
Because all three models include fork truck pick-up points, they can be moved between workstations as demand shifts — making them a flexible addition to facilities that handle varying product lines or seasonal volume changes.
Request a Quote
The Advance Lifts Pallet Pro self-leveling palletizer line is available through authorized distributors. Barron Equipment can help you determine which configuration — mechanical, pneumatic, or electric/hydraulic — is the right fit for your application. Fill out the form below or contact our team directly for pricing and lead time information.
