Overview

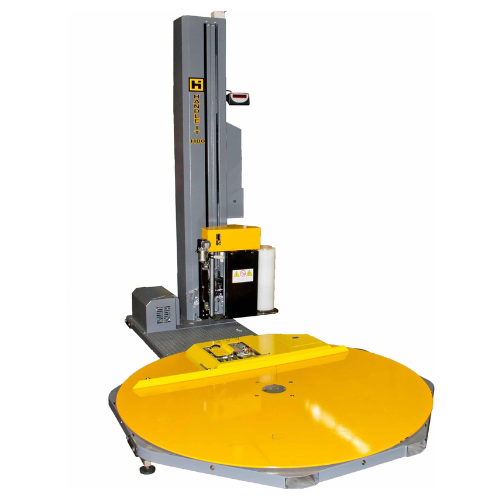

The Handle It 1100AA-C is an automatic pallet wrapper designed for facilities that want fully hands-free wrapping without investing in a conveyor-fed system. This model serves as a bridge between semi-auto and fully-automatic stretch wrappers. Equipped with automatic film attach, cut, and hot weld features, the 1100AA-C eliminates the need for operator intervention; this unit performs the entire wrap cycle without even needing to leave the forklift.
The operator loads a pallet onto the 71″ turntable with a forklift, presses the remote control, and walks away — or more accurately, drives away. The machine automatically attaches the film, wraps the load to the programmed cycle, cuts the film, and heat-seals the tail to the pallet. No manual film threading, no hand-tearing, and no film tails left loose. With a 4,400 lb load capacity, up to 300 average loads per day, and standard 110V power, the 1100AA-C delivers automatic-class productivity without the footprint or infrastructure of a conveyor system.
Features and Benefits

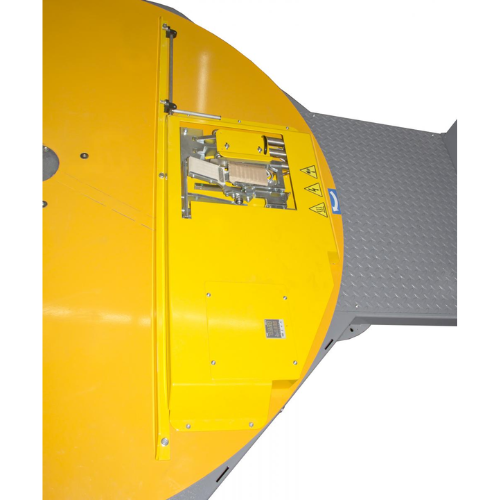

The integrated 3-in-1 automatic system handles film attach, cut, and hot weld sealing directly on the turntable. The 1100AA-C uses a 2-step tail treatment process to effectively secure loads — it ropes and welds the end of the film to ensure the pallet’s integrity. Other machines simply wipe or leave the tail untreated, which can compromise wrap quality or unravel during transit.

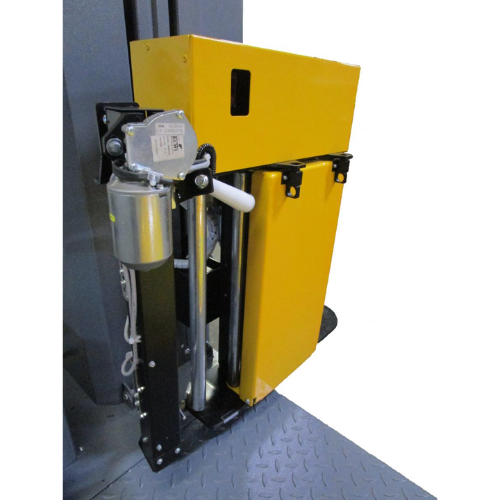

The 250% powered pre-stretch carriage reduces film usage significantly compared to hand wrapping or machines without powered pre-stretch. An electronically controlled load sensor dynamically adjusts film application for consistent stretch across different load types — from uniform cartons to irregular stacks. Variable film tension, adjustable carriage speed, and reinforcement wrap settings give you precise control over how every pallet is wrapped.

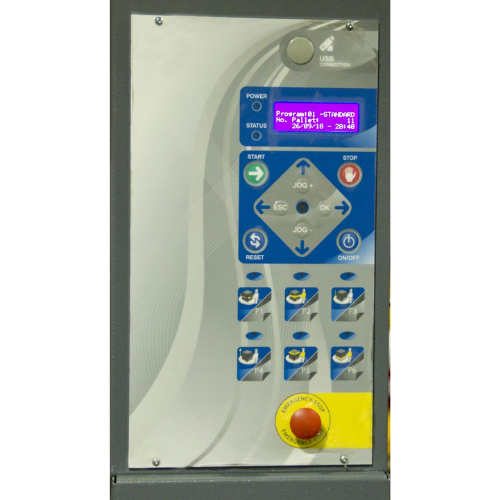

The PLC control panel offers up to 32 programmable wrap cycle recipes with 6 quick-select buttons for fast navigation. Six working cycles are available: ascent/descent, topsheet, ascent only, descent only, layers, and stack. On-board diagnostics, a USB port for data upload and download, and a wrapped pallet counter provide full visibility into machine performance. Password protection prevents unauthorized changes to wrap settings.
The entire automatic system is integrated into the turntable rather than mounted on an external arm. The slim profile reduces the chance of damage during loading. Machines with outboard arms commonly experience this sort of damage. The 1100AA-C also includes a mirror to help operators spot their loading position, and the system will work even if the pallet isn’t loaded perfectly or the load isn’t fully uniform.
Why Remote-Controlled Automatic Wrapping
In a semi-automatic wrapping workflow, the forklift operator loads the pallet, gets off the forklift, walks to the machine, manually attaches the film, starts the cycle, waits, then manually cuts or tears the film before getting back on the forklift to unload. That process repeats hundreds of times per day.
The 1100AA-C eliminates every manual touchpoint. The operator stays on the forklift for the entire process — load, press the remote, unload. For facilities wrapping 100+ pallets per day, that labor savings alone can justify the investment. It also reduces the risk of repetitive strain injuries associated with manual film handling and eliminates inconsistent wrapping caused by operator fatigue or varying technique.
Applications
The 1100AA-C is built for warehousing, distribution, manufacturing, and logistics operations that wrap between 100 and 300 pallets per day and want to minimize labor at the wrapping station. It is especially well suited for facilities where forklift operators handle both pallet transport and wrapping duties, since the remote control keeps the operator in the seat throughout the process.
Common applications include outbound shipping preparation, end-of-line packaging in manufacturing, third-party logistics fulfillment, and any high-volume operation where wrapping speed, consistency, and labor reduction are priorities. The machine handles standard pallets up to a 93″ diagonal with a max wrap height of 94″ — extendable to 118″ for taller loads.
Specifications
- Model: SWM-SA-1100AA-C
- Type: Automatic Remote-Controlled Turntable Stretch Wrapper
- Turntable Diameter: 71″ (93″ max load diagonal)
- Turntable Height: 3″
- Load Capacity: 4,400 lbs
- Max Wrap Height: 94″ (118″ with optional extension)
- Throughput: Up to 35 loads per hour / 300 max average loads per day
- Pre-Stretch: 250% powered
- Turntable Speed: Up to 12 RPM
- Power Supply: 110V, 20 amp

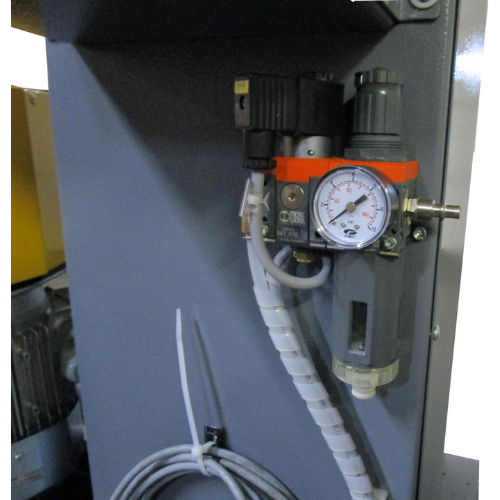

- Air Supply: 90 PSI minimum / 8-gallon tank
- Machine Dimensions: 113″ L x 71″ W x 97″ H
- Machine Weight: 1,300 lbs
- Wrap Programs: 18 customizable / 32 programmable recipes
- Warranty: 3-Year
Available Options
- Extended wrap height to 118″
- Integrated scale
- 4″ label printer
- Safety fencing and light curtain (for automated zones)
- 24″ extended frame
- Additional remotes
- Top press
- Photocell for dark loads
- Cold environment kit
- Film usage diagnostics
- Film slitter for ventilation
- 30″ carriage
- Anti-static brush
- Forklift wheel stop
- 3-sided guard rail package
Selection Assistance
The 1100AA-C is the right choice when your facility wraps high volumes with forklifts and you want to eliminate manual film handling entirely. If any of the following describe your operation, this model is likely the best fit:
Your forklift operators currently handle both pallet transport and wrapping duties. You wrap 100 or more pallets per day and want to reduce labor at the wrapping station. Consistent, secure wrap quality is critical for transit — loose film tails or inconsistent tension are causing load failures. You want automatic-class performance without installing conveyors or making major infrastructure changes.
If your operation loads primarily with pallet jacks and wraps fewer than 100 loads per day, the 1200UL Ultra Low Profile Stretch Wrap Machine may be a better fit — it offers the same 250% pre-stretch technology in a pallet-jack-friendly, ultra-low-profile design. For fully conveyor-integrated automation, ask about the Handle It FA Series automatic conveyor pallet wrappers.
Not sure which wrapper matches your throughput and workflow? Contact Barron Equipment — we can help you evaluate your volume, load types, and floor plan to recommend the right machine.
