Overview

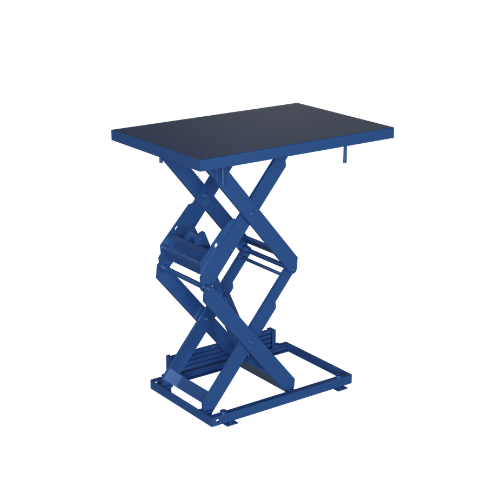

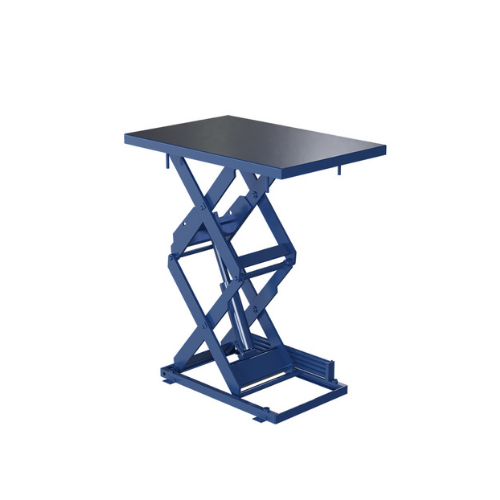

The Autoquip TorkLift T2 Double Pantograph is the mid‑range configuration in Autoquip’s premium TorkLift heavy duty scissor lift family. Two sets of vertically stacked scissors are pinned directly together, stabilized, and raised simultaneously by common hydraulic cylinders. This double pantograph design delivers extended vertical travel from 48 to 96 inches while maintaining a smaller footprint than a single‑pantograph lift covering the same height range. Capacities reach up to 10,000 lbs.
Like every lift in the TorkLift family, the T2 delivers five times the life cycles of competitive heavy duty scissor lift tables. Originally developed by American Lifts and manufactured in the USA for over 30 years, the TorkLift T2 comes standard with captured rollers, two‑piece self‑aligning cylinders, and high‑impact spiral wound bearings—the same premium construction found in the single TorkLift and T3 Triple Pantograph. For applications that need more travel than the single TorkLift but do not require the extreme reach of the T3, the T2 is the ideal configuration.
Features and Benefits
The double pantograph design stacks two scissor sets to achieve higher travel from a compact base, consuming less floor space than a single‑pantograph lift of equivalent raised height. All scissor rollers are captured within structural steel channels for excellent load stability. High‑impact, spiral wound bearings at every pivot point provide maintenance‑free resistance to abrasion, impact, and uneven loads. Structural cross‑members at every pinned joint minimize leg deflection from twisting or spreading.
All hydraulic cylinders contain two‑piece, self‑aligning piston rods that transmit minimal side forces to cylinder hinges, significantly reducing wear. A low‑pressure hydraulic circuit extends the life of all hydraulic components and reduces motor stress. Structural steel channels in all top and lower frames provide additional rigidity. Chrome‑plated, 100,000 psi ultimate‑strength pins at every joint deliver premium load strength and long life.
A minimum 1/4‑inch‑thick steel‑reinforced platform minimizes deck deflection. Semi‑transparent polyurethane oil reservoir provides clear fluid monitoring. Double wire‑braided Parker hydraulic hoses resist wear, abrasion, and leaks. On‑board maintenance devices allow safe blocking during inspection. Autoquip backs the TorkLift T2 with an industry‑best 2‑year warranty on all parts.
Safety and Compliance
Hydraulic velocity fuses completely stop the lift in the unlikely event of uncontrolled descent. A minimum 3:1 structural factor of safety ensures reliable performance at extended heights. Each unit complies with ANSI MH29.1 for industrial scissor lifts, NFPA 70 National Electric Code, ASTM A36 structural steel standards, ANSI Z535 safety labeling requirements, AWS D.1 welding standards, and applicable portions of OSHA 29CFR1910 for general workplace safety.
Applications
The TorkLift T2 serves applications that require extended vertical travel with premium durability and maximum cycle life. Common uses include high‑cycle parts assembly and disassembly at elevated workstations, personnel work platforms that must meet strict safety and structural requirements at moderate heights, multi‑landing access where the lift serves two elevated positions with high reliability demands, ergonomic work positioning in demanding manufacturing environments where lifts cycle continuously across shifts, and any production process where a standard‑duty double high scissor lift cannot deliver the required cycle life or has experienced premature failure.
Selection Assistance
The TorkLift T2 is the right choice when your application requires 48 to 96 inches of travel with premium heavy duty construction and maximum cycle life. For applications needing less travel (24–60 in.) at the same premium quality level, the single TorkLift is more cost‑effective. For applications requiring travel above 96 inches, the T3 Triple Pantograph extends the range up to 300 inches. For standard‑duty double high applications where premium cycle life is not required, the Series 35 Double High offers a lower‑cost alternative. Barron Equipment can help you evaluate both product lines and recommend the right solution. Contact our team to discuss your application and request a quote.
