Overview

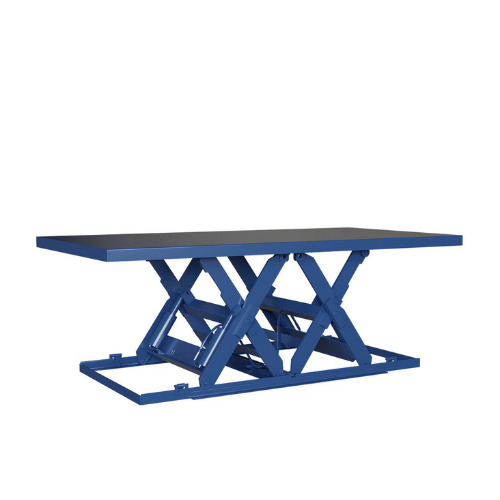

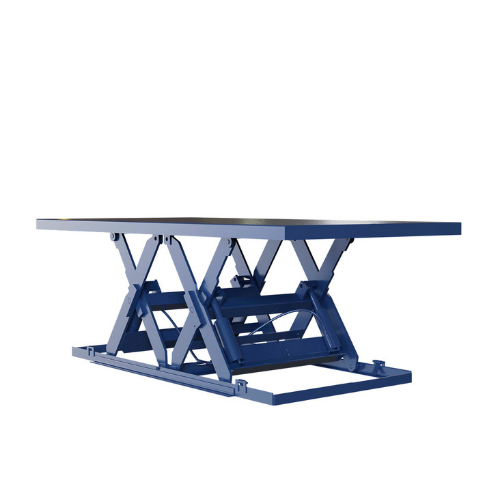

The Autoquip Series 35 EXW Double Long combines the extra wide leg stance with the double long end‑to‑end scissor configuration, creating the most versatile heavy duty platform in the Series 35 family. Two wide‑stance scissor mechanisms are arranged end to end, delivering an extended platform that is both wider and longer than any single‑configuration model can achieve. This hybrid design handles loads that are too long, too wide, or too heavy for standard, Extra Wide, or standard Double Long scissor lift tables individually.
Standard models offer travel ranges from 24 to 60 inches with load capacities from 4,000 to 24,000 lbs. Platform widths extend up to 90 inches and platform lengths reach up to 212 inches on the largest configurations. Collapsed heights start as low as 6.5 inches, maintaining the low‑profile design that allows loads to be transferred on and off the platform with minimal ramp height. The hydraulic power unit comes prewired and mounted onboard, and installation requires only lagging the unit to the floor and connecting to electricity.
Features and Benefits
The EXW Double Long’s defining advantage is its ability to accept loads from both the ends and sides of the platform with complete stability. The wide‑stance base frame prevents lateral deflection when loads are transferred across the platform width, while the dual end‑to‑end scissor mechanisms support elongated loads across the full platform length. This means operators can use conveyors, roller systems, pallet jacks, or powered transport equipment to move heavy materials onto the lift from any direction without worrying about edge load limitations.
Chrome‑plated, 100,000 psi ultimate‑strength pins at every joint deliver premium load strength and long service life. A minimum 1/4‑inch‑thick steel‑reinforced platform minimizes deck deflection across the expanded surface area. Solid steel legs with added stiffeners provide straight, repeatable roller tracking under heavy or uneven loads. A flow control valve ensures safe lowering speed across all models.
On‑board maintenance devices let crews safely block open the scissors during inspection. A semi‑transparent polyurethane oil reservoir provides clear fluid level visibility and prevents rust contamination. Double wire‑braided Parker hydraulic hoses resist wear, abrasion, and leaks, and high‑strength steel rollers are designed for easy replacement. Autoquip backs every Series 35 EXW Double Long with an industry‑best 2‑year warranty on all parts.
Safety and Compliance
Hydraulic velocity fuses completely stop the lift in the unlikely event of uncontrolled descent from a sudden hose rupture. A minimum 3:1 structural factor of safety makes these lifts among the most structurally sound industrial scissor lift tables available. Each unit complies with ANSI MH29.1 for industrial scissor lifts, NFPA 70 National Electric Code, ASTM A36 structural steel standards, ANSI Z535 safety labeling requirements, AWS D.1 welding standards, and applicable portions of OSHA 29CFR1910 for general workplace safety.
Applications
The Series 35 EXW Double Long is purpose‑built for applications involving large, heavy loads that are both longer and wider than what standard or single‑variant scissor lift tables can handle. Common uses include heavy fabrication and welding operations where oversized steel assemblies, frames, or structural components must be raised to working height, die change and tooling stations where wide, long molds or fixtures need stable lifting with access from multiple sides, vehicle and equipment maintenance where a large chassis or subassembly requires a wide, extended platform, truck loading and unloading where oversized goods must be transferred laterally and longitudinally across the deck, and large‑format manufacturing lines where the workpiece exceeds both the width and length limits of a standard lift. The ability to load and unload from both the ends and sides of the platform gives facilities maximum flexibility in how they integrate this lift into their material flow.
Selection Assistance
Choosing the right configuration depends on your load dimensions, weight, transfer method, and the direction loads need to move on and off the platform. If your loads are long but not unusually wide, the standard Double Long may be sufficient. If your loads are wide but standard length, the Extra Wide or Double Wide may be the better fit. The EXW Double Long is the right choice when your application demands both extended length and extended width in a single platform with the highest capacity and complete load transfer flexibility. Autoquip offers extensive customization for all models, and Barron Equipment can help you evaluate the full Series 35 lineup and recommend the ideal configuration. Contact our team to discuss your application and request a quote.
