Autoquip Series 35 Rover Mobile

Category

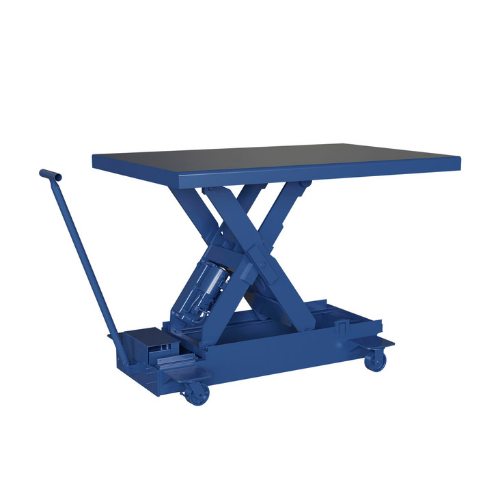

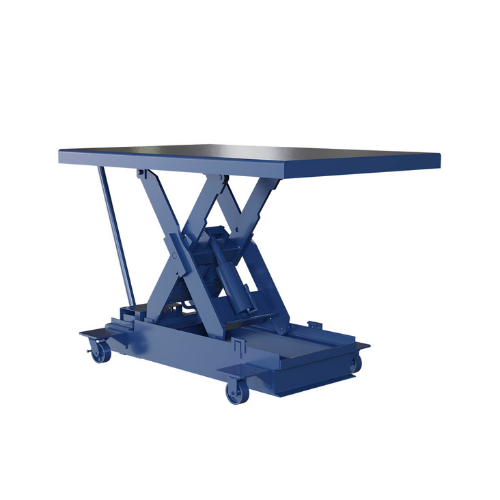

DC Powered Mobile Scissor Lift Is Flexible While Serving Multiple Locations

Completely self-contained and battery powered, these lifts are designed to be safe and reliable for applications requiring one hydraulic scissor table to be shared among multiple work stations. Utilizing the lifts for work positioning and conveyor systems also allow for improved ergonomics, worker productivity, and factory throughput. The Series 35 Rover Mobile lift offers travel ranges from 24″ to 60″ with capacity ranges from 2,500 to 6,000 lbs., and come standard with a removable tow handle and lockable casters.

Flexibility and Ease of Use

  • Availability of various models and standard options make these lifts the most customizable in the industry.
  • Standard mobility package includes 4 casters and removable push handle for easy movement.
  • Standard controls are prewired and internal 12VDC power unit, battery, and 110 VAC battery charger are onboard. First-time setup only involves charging the battery.
  • Exceptionally low lowered height allows on and off load flexibility.
  • Single-piece, steel reinforced legs and a 1/4- to 3/8-inch-thick steel platform make for extremely solid construction and easy adaptability.

Durability and Quality

  • Joints, the most critical wear points in the lift, feature chrome-plated, 100,000 psi, ultimate-strength pins for premium load strength and long life.
  • Solid steel leg and added stiffeners provide optimal overall stability and straight, repeatable tracking of the rollers as the lift raises and lowers.
  • Minimum 1/4-inch-thick steel-reinforced platform minimizes deck deflection, maximizes load stability, and greatly extends the life of the platform deck.

Maintenance and Warranty

  • On-board maintenance devices enable maintenance crews to safely and effectively block open the scissors during inspection and routine maintenance.
  • Sturdy, semi-transparent polyurethane oil reservoir provides an easily visible method of checking fluid levels and eliminates oil contamination due to rust.
  • Double wire braided Parker hydraulic hoses resist wear, abrasion, and leaks.
  • Easy replacement of high-strength steel rollers minimizes downtime.
  • Autoquip offers an industry-best 2-year warranty on all parts as a promise that you’ve purchased the industry’s most reliable lift.

Safety

  • Lockable casters add load stability.
  • Removable battery cover prevents accidental contact with the battery terminals.
  • Hydraulic velocity fuses completely stop lifts in the unlikely event of uncontrolled descent due to sudden hose rupture.
  • Minimum 3:1 structural factor of safety makes these lifts the most structurally sound in the industry.
  • Compliance with recognized standards:
    • ANSI MH29.1 – Safety Requirements for Industrial Scissor Lifts
    • NFPA 70 – National Electric Code
    • ASTM – A36 – Structural Steel Standard
    • ANSI Z535 – Safety Labeling Requirements
    • AWS D.1 – Welding Standards
    • Applicable portions of OSHA 29CFR1910 – General Workplace Safety
