Overview

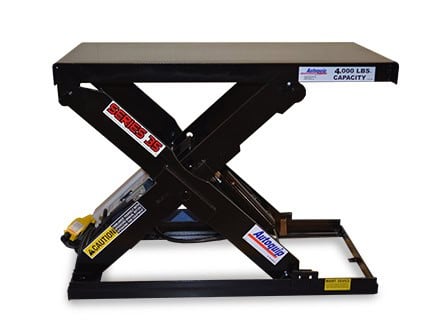

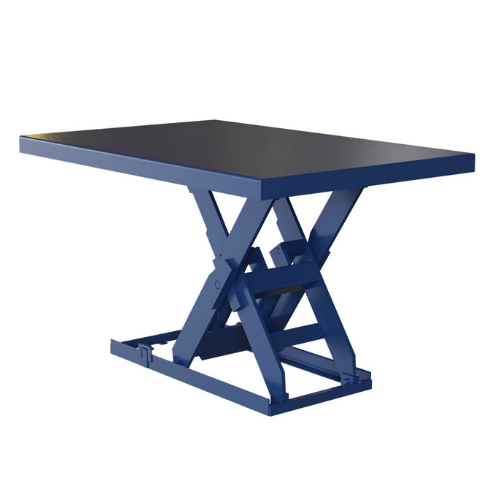

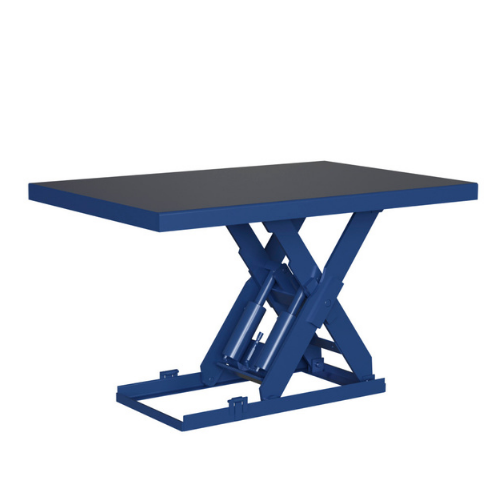

The Autoquip Series 35 is the most proven, versatile, and widely used industrial scissor lift table on the market. Built to provide long service life, durability, and outstanding lifting power, the Series 35 offers 20 standard models with travel ranges from 24 to 60 inches and load capacities from 1,500 to 15,000 lbs. Whether the application involves pallet handling, parts assembly, ergonomic work positioning, or conveyor integration, the Series 35 has a standard model to fit—and a full customization program to adapt it further.
The Series 35 also serves as the foundation for an extensive family of specialized variants, including the Double High for extended vertical travel, Double Long for elongated loads, Double Wide for maximum end load capacity, Extra Narrow and Extra Wide for specific footprint requirements, Low Profile for the lowest collapsed height, and the battery‑powered Rover for portable applications. No matter how unique your lifting challenge, the Series 35 platform can be configured to solve it.
Features and Benefits
More standard models and options are available in the Series 35 than in any other competing scissor lift table lineup, making it easy to find a close match for virtually any application and customize from there. Standard controls come prewired and the internal power unit is mounted onboard, so installation requires only lagging the lift to the floor and connecting to electricity. An exceptionally low collapsed height allows flexible on‑and‑off loading across all travel ranges.
Chrome‑plated, 100,000 psi ultimate‑strength pins at every joint deliver premium load strength and long service life at the most critical wear points. Single‑piece, steel‑reinforced legs and a 1/4‑ to 3/8‑inch‑thick steel platform make for extremely solid construction with minimal deck deflection. Solid steel legs with added stiffeners provide optimal overall stability and straight, repeatable roller tracking as the lift raises and lowers under heavy or off‑center loads.
On‑board maintenance devices let crews safely block open the scissors during inspection and routine service. A semi‑transparent polyurethane oil reservoir provides clear fluid level visibility and eliminates contamination from rust. Double wire‑braided Parker hydraulic hoses resist wear, abrasion, and leaks, and high‑strength steel rollers are designed for easy replacement to minimize downtime. Autoquip backs every Series 35 with an industry‑best 2‑year warranty on all parts.
Safety and Compliance
Hydraulic velocity fuses completely stop the lift in the unlikely event of uncontrolled descent from a sudden hose rupture. A minimum 3:1 structural factor of safety makes the Series 35 among the most structurally sound industrial scissor lift tables in the industry. Each unit is designed and manufactured to comply with ANSI MH29.1 for industrial scissor lifts, NFPA 70 National Electric Code, ASTM A36 structural steel standards, ANSI Z535 safety labeling requirements, AWS D.1 welding standards, and applicable portions of OSHA 29CFR1910 for general workplace safety.
Applications
The Series 35 is built to handle the widest range of industrial lifting applications of any scissor lift table family. Common uses include pallet build‑up and tear‑down operations at shipping, receiving, and production workstations, parts assembly and disassembly where operators need adjustable height positioning throughout the task, ergonomic work positioning that reduces bending, reaching, and manual lifting to improve worker comfort and productivity, conveyor system integration where the lift must raise materials to match infeed or discharge heights, and general material handling tasks that benefit from a stable, height‑adjustable work surface. The breadth of available models, platform sizes, and options makes the Series 35 the default starting point for any new scissor lift table application.
Selection Assistance
The standard Series 35 is the right choice for the majority of industrial scissor lift table applications. For applications that fall outside its standard dimensions, Autoquip offers a complete family of specialized variants built on the same platform. If your application requires higher vertical travel, consider the Double High. For elongated loads, the Double Long. For wider loads or higher end load ratings, the Double Wide or Extra Wide. For tight spaces, the Extra Narrow. For the lowest collapsed height, the Low Profile. For portability, the Rover. Autoquip also offers extensive custom options for any model including controls, mobility packages, turntables, tilt functionality, conveyor decks, special platform shapes, stainless steel surfaces, and automation‑ready configurations. Barron Equipment can help you evaluate the full lineup and recommend the right solution. Contact our team to discuss your application and request a quote.
