Overview
The Autoquip TorkLift T3 is the premium heavy duty scissor lift in Autoquip’s lineup, engineered for manufacturing environments that demand maximum durability, minimum downtime, and extreme cycle life. Originally developed by American Lifts and manufactured in the USA for over 30 years, the TorkLift T3 delivers five times the life cycles of competitive heavy duty scissor lift tables—making it the recognized industry standard for high‑demand workstation applications.

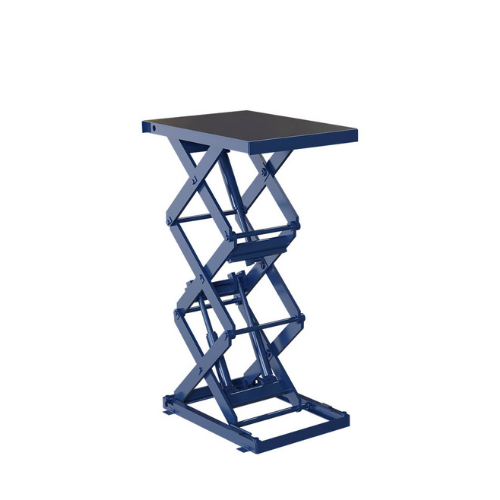

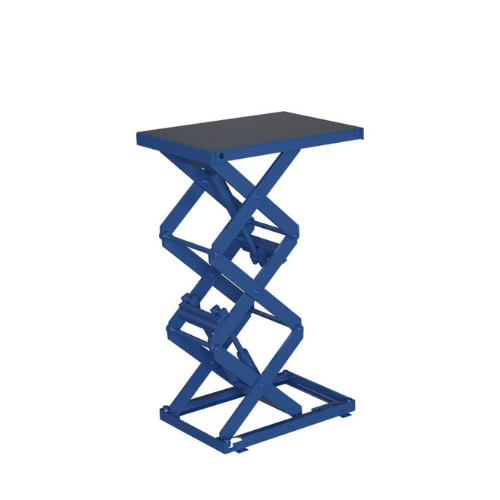

Three sets of vertically stacked scissors are pinned directly together, stabilized, and raised simultaneously by common hydraulic cylinders. This triple pantograph design creates a rigid, stable structure that consumes less floor space than single or double pantograph lifts while achieving the same vertical travel distance. Standard models offer travel from 48 to 300 inches with capacities from 2,000 to 10,000 lbs across 30 configurations. Raised heights reach up to 332 inches on the largest model.
Features and Benefits
What separates the TorkLift from every other scissor lift is its heavy duty construction at every pivot point. All scissor rollers are captured within structural steel channels, preventing roller escape and providing excellent load stability even under extreme or uneven loading. High‑impact, spiral wound bearings at every pivot point deliver maintenance‑free, rugged resistance to abrasion, impact, and uneven loads—no greasing required. Structural cross‑members at every pinned joint minimize leg deflection from twisting or spreading under high loads.
All hydraulic cylinders contain two‑piece, self‑aligning piston rods that transmit minimal side forces to the cylinder hinges and pins, significantly reducing wear on the most critical moving components. A low‑pressure hydraulic circuit extends the life of all hydraulic components and puts less stress on the electric motor. Structural steel channels in all top and lower frames provide additional rigidity and resistance to twisting and bending under load. The compact footprint allows workers to stand closer to the product, minimizing the floor space required for high vertical travel.
Chrome‑plated, 100,000 psi ultimate‑strength pins at every joint deliver premium load strength and long life. A minimum 1/4‑inch‑thick steel‑reinforced platform minimizes deck deflection. Semi‑transparent polyurethane oil reservoir provides clear fluid monitoring. Double wire‑braided Parker hydraulic hoses resist wear, abrasion, and leaks. On‑board maintenance devices allow safe blocking during inspection. Autoquip backs the TorkLift T3 with an industry‑best 2‑year warranty on all parts.
Safety and Compliance
Hydraulic velocity fuses completely stop the lift in the unlikely event of uncontrolled descent. A minimum 3:1 structural factor of safety ensures reliable performance. Each unit complies with ANSI MH29.1 for industrial scissor lifts, NFPA 70 National Electric Code, ASTM A36 structural steel standards, ANSI Z535 safety labeling requirements, AWS D.1 welding standards, and applicable portions of OSHA 29CFR1910 for general workplace safety.
Applications
The TorkLift T3 is built for the most demanding industrial lifting applications where standard scissor lift tables cannot deliver the required cycle life, durability, or vertical reach. Common uses include high‑cycle parts assembly and disassembly workstations that run continuously across multiple shifts, personnel work platforms that must meet strict safety and structural requirements, multi‑landing access applications where the lift serves as a vertical transport between two or more elevated positions, mezzanine loading where materials must be raised to upper levels in a compact footprint, and any production process where downtime from lift failure is unacceptable. The TorkLift’s five‑times cycle life advantage makes it the preferred choice for facilities that have experienced premature failure or excessive maintenance on standard‑duty scissor lift tables.
Selection Assistance
Choosing the right heavy duty scissor lift depends on your required travel range, load capacity, cycle frequency, and whether the application demands premium durability over standard‑duty construction. For standard industrial applications with moderate cycle demands, the Series 35 family offers a wider variety of configurations at lower price points. For applications requiring extreme travel with standard‑duty construction, the Series 35 Triple High is available. The TorkLift T3 is the right choice when the application demands premium cycle life, captured rollers, spiral wound bearings, self‑aligning cylinders, and the most robust heavy duty scissor lift construction available. Barron Equipment can help you evaluate both product lines and recommend the right solution. Contact our team to discuss your application and request a quote.
