Overview

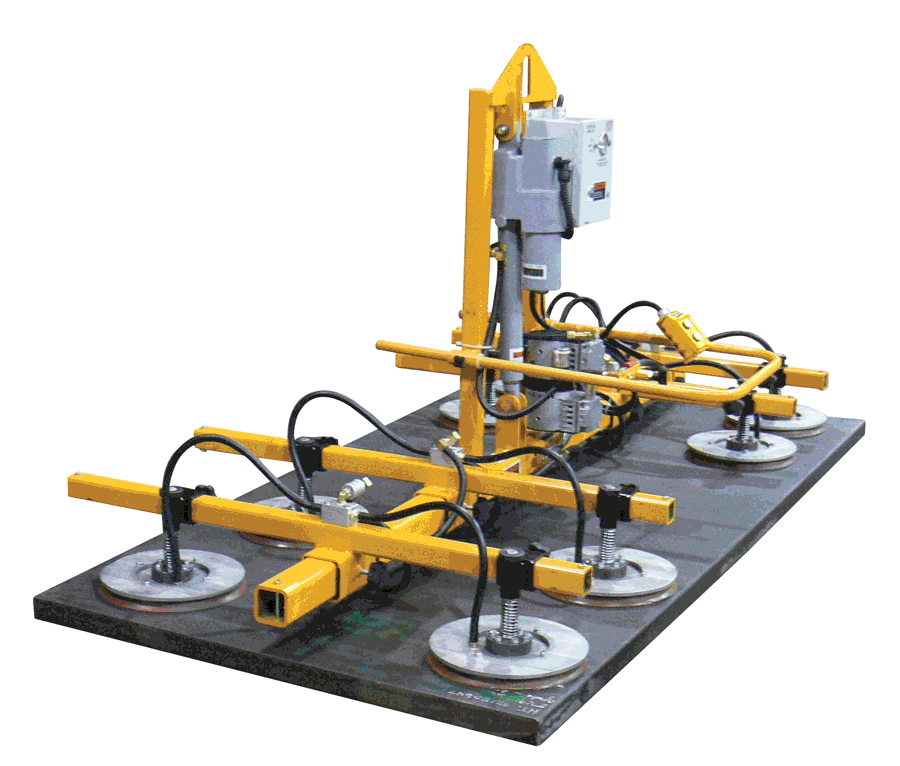

Barron Equipment carries the Caldwell Model U Standard Duty Vacuum Upender — a plug-in electric vacuum system that lifts non-porous materials and tilts them through a controlled 90-degree arc. Available in twin crossarm (4-pad) and quad crossarm (8-pad) configurations, this standard duty upender eliminates the extra labor and secondary equipment typically needed to transition flat materials between horizontal and vertical positions.
Designed for straightforward installation, this vacuum tilt lifter runs on a standard 110V outlet and does not require dedicated wiring or compressed air connections. A built-in vacuum reservoir maintains load grip even in the event of a power interruption, adding a critical layer of safety to every tilt cycle. For operations that handle glass, panels, or sheet goods at moderate frequency, this is an efficient, cost-effective alternative to a heavy duty upender.
Twin Crossarm and Quad Crossarm Configurations
The standard duty vacuum upender is available in two crossarm layouts to match different material sizes and handling requirements. Twin crossarm models use four vacuum pads and are available with main beam lengths of 4 ft., 6 ft., or 8 ft. Quad crossarm models use eight pads and are available with main beam lengths of 6 ft., 8 ft., or 10 ft. Both configurations offer crossarm lengths of 3 ft., 4 ft., or 5 ft.
The twin crossarm layout is well suited for moderate-width materials that need to be tilted for vertical storage or placement into shipping racks. The quad crossarm configuration provides additional suction coverage for wider or more flexible materials that require more grip points to stay stable during the rotation cycle.
Features and Benefits
The Caldwell standard duty vacuum upender is built with operator safety and ease of use as core design priorities. Key features include:
- Standard 110V plug-in power supply — no hardwiring or compressed air infrastructure needed, making installation fast and relocating the unit easy
- Vacuum reservoir that maintains grip on the load in the event of a power loss, preventing sudden load release during the tilt cycle
- Linear actuator that provides smooth, continuous 90-degree tilting without jerking, sudden stops, or abrupt direction changes
- Color-coded vacuum level indicator gauge that gives the operator a clear, at-a-glance reading of vacuum status during every lift
- Adjustable guide handle for ergonomic operation, allowing different operators to customize the handle position for comfortable control
- Non-marking neoprene vacuum pads that protect load surfaces from scuffing, scratching, or marring — especially important for glass and finished panel applications
The combination of plug-in power, safety reservoir, and operator-friendly controls makes this upender accessible to a wide range of facilities without requiring significant infrastructure investment.
Applications
This standard duty vacuum upender is designed for operations that regularly tilt flat materials between horizontal and vertical orientations. Common applications include glass fabrication shops upending or downending panels for vertical storage racks, window and door manufacturers positioning glass lites for frame assembly, cabinetry and millwork operations tilting large finished panels for inspection or crating, building material suppliers loading sheet goods into vertical shipping containers, and quality control stations that need to view both sides of a flat workpiece.
The upender connects to overhead cranes, jib cranes, and gantry systems through a standard hook. Its 110V plug-in design makes it particularly practical for facilities that need tilt capability in multiple work areas without routing dedicated power or air lines to each location.
Standard Duty vs. Heavy Duty Vacuum Upenders
Barron Equipment carries both the standard duty and heavy duty versions of the Caldwell vacuum upender. The standard duty Model U is the right choice for facilities that tilt materials at moderate frequency and benefit from the simplified 110V plug-in installation. It includes safety features like the vacuum reservoir and color-coded indicator gauge that are specific to this model.
The heavy duty Model T upender is built for higher cycle rates and more demanding production environments where sustained, continuous tilting is required. Barron's team can help evaluate your tilt frequency, material weights, and facility conditions to recommend the right model.
Selection Assistance
Configuring the right standard duty vacuum upender involves selecting between the twin crossarm (4-pad) and quad crossarm (8-pad) layout, choosing the correct main beam length and crossarm span for your materials, and confirming that a standard 110V power outlet is available at your work area.
Barron Equipment works directly with each customer to identify the optimal configuration. For operations that only need flat vacuum lifting without the tilt function, Barron also carries the full Caldwell UNIVAC crossarm vacuum lifter line in standard and heavy duty ratings. For applications that require both flat lifting and occasional tilting, our team can recommend the best combination of equipment.
Contact Barron Equipment to request a quote or discuss the right vacuum upending solution for your operation.
