Dock Light with Fan

Item ID: H14A-TC-BLUE-1 Category

Improve visibility with a dock light fan combo while keeping truck trailers cool when loading and unloading product from a loading dock area.

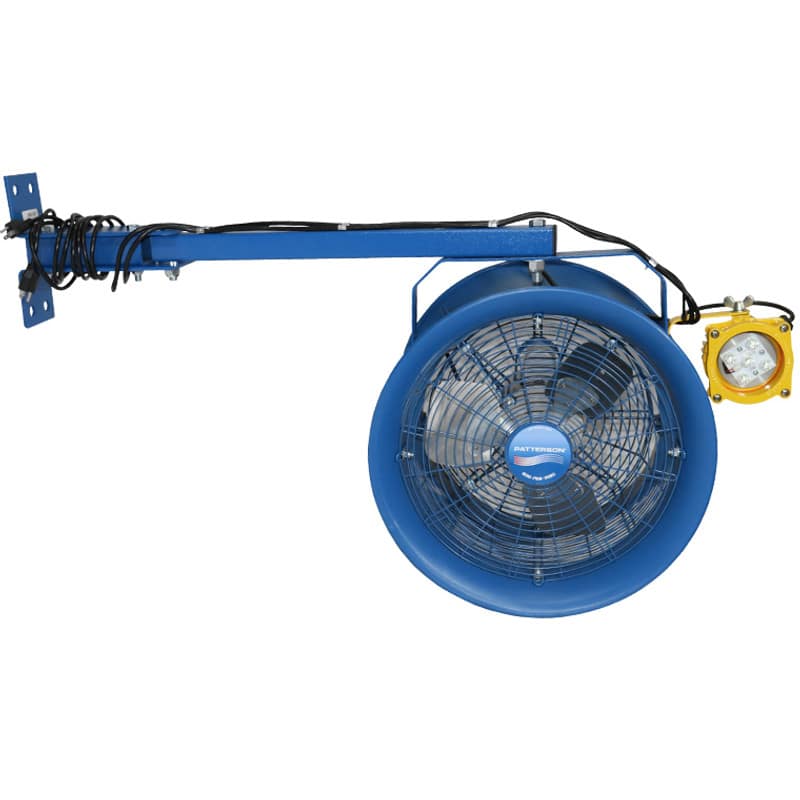

Our Dock Light with Fan is a combo of a high velocity truck cooling fan with an LED Dock Light, allowing for cooling features as well as additional visibility, ensuring a higher level of safety for personnel. This combo essentially comes with 3 components: the truck cooler fan, the truck cooler arm and the LED Dock Light. All of which are designed to provide flexibility, air circulation and visibility while loading and unloading trailers.

Product Details

Truck Cooling Fan

  • CFM 2600
  • HP: 1/4
  • Air Throw Distance 60'
  • Coverage: 1800 Sq. Ft. Max
  • Fan Inlet/Outlet High Impact Polypropylene
  • Motor 115V/208-230 Single Phase

Truck Cooler Arm

  • 25" Length from Mounted Location

LED Dock Light

  • 15 Watt LED Light
  • Input Line Voltage: 100-240,277 Volts
  • Input Line Frequency: 50/60HZ
  • Lamp Life: 50,000 hrs
  • Focused Lumens: 660
  • Minimum Operating Temp: -30’C
  • Maximum Operating Temp: 40’C
  • UL/cUL Listed: Yes
  • Power Factor: 0.9
