Overview
Relocating a loaded file cabinet is one of the most common — and most dreaded — tasks during an office move. Full drawers make cabinets dangerously heavy, and tipping is a constant risk when trying to slide or drag them across a floor. This file cabinet dolly eliminates those problems with a lever-lift mechanism that raises the cabinet off the ground and a built-in counter-balance system that prevents tipping during transport. One person can lift and roll a fully loaded filing cabinet weighing up to 600 lbs without emptying a single drawer.
Available in three platform widths — 15″ (letter-size), 18″ (legal-size), and 20″ (extra-wide) — this filing cabinet dolly accommodates the full range of standard and oversized cabinets found in offices, schools, and government buildings. Every unit is manufactured by Raymond Products in Minneapolis, Minnesota and backed by a lifetime warranty against manufacturing defects.
Features and Benefits

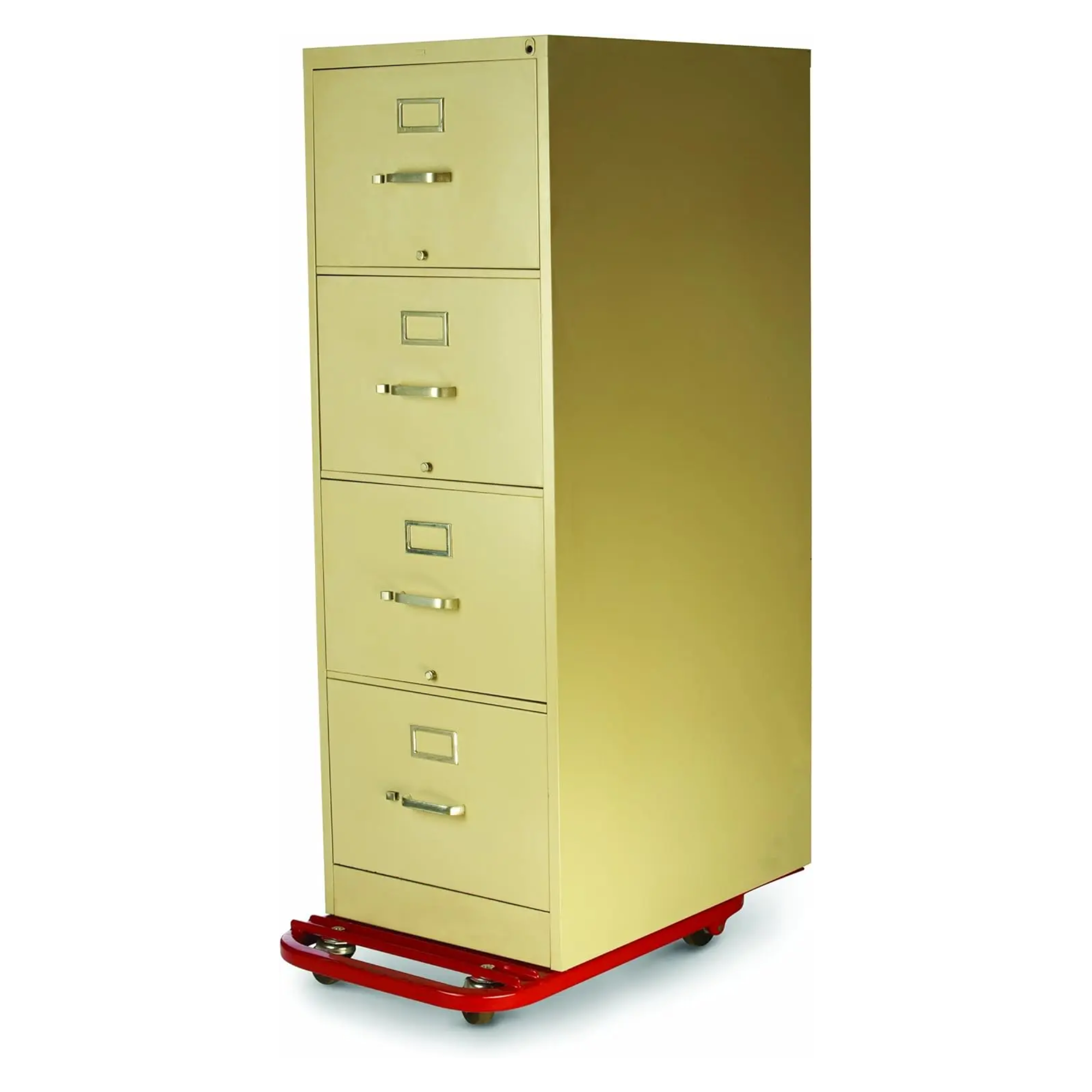

The lever-action lift mechanism is the defining feature of this file cabinet dolly. Instead of forcing workers to tip a cabinet onto a standard dolly — which risks back injury and furniture damage — the operator slides the low-profile frame under the cabinet base and presses a foot-operated lever to raise it. The counter-balance design keeps the load stable throughout the lift, preventing the cabinet from tipping forward, backward, or to the side during the raising process and transport.
The platform is coated with Raymond’s signature non-skid, bonded red vinyl, which grips the base of the cabinet and cushions it against scratches and surface damage. Two 3″ fixed rear wheels provide straight-line tracking stability, while two 2½” full-swivel front casters allow the operator to steer around corners, through doorways, and into tight storage areas with full directional control. All four wheels are non-marring hard rubber, safe for use on hardwood, tile, laminate, carpet, and polished concrete.
The compact profile — just 6″ in height — allows the dolly to slide under most standard file cabinets without needing to lift or pre-position the furniture. Each unit ships via UPS in a single carton with no assembly required.
Available Widths
- Model 3215 – 15″ W x 32″ L (Letter-Size) — Designed for standard letter-size file cabinets, lateral files, and compact storage units. The narrowest option with the tightest fit for two-drawer and four-drawer letter cabinets. Shipping weight: 20 lbs.

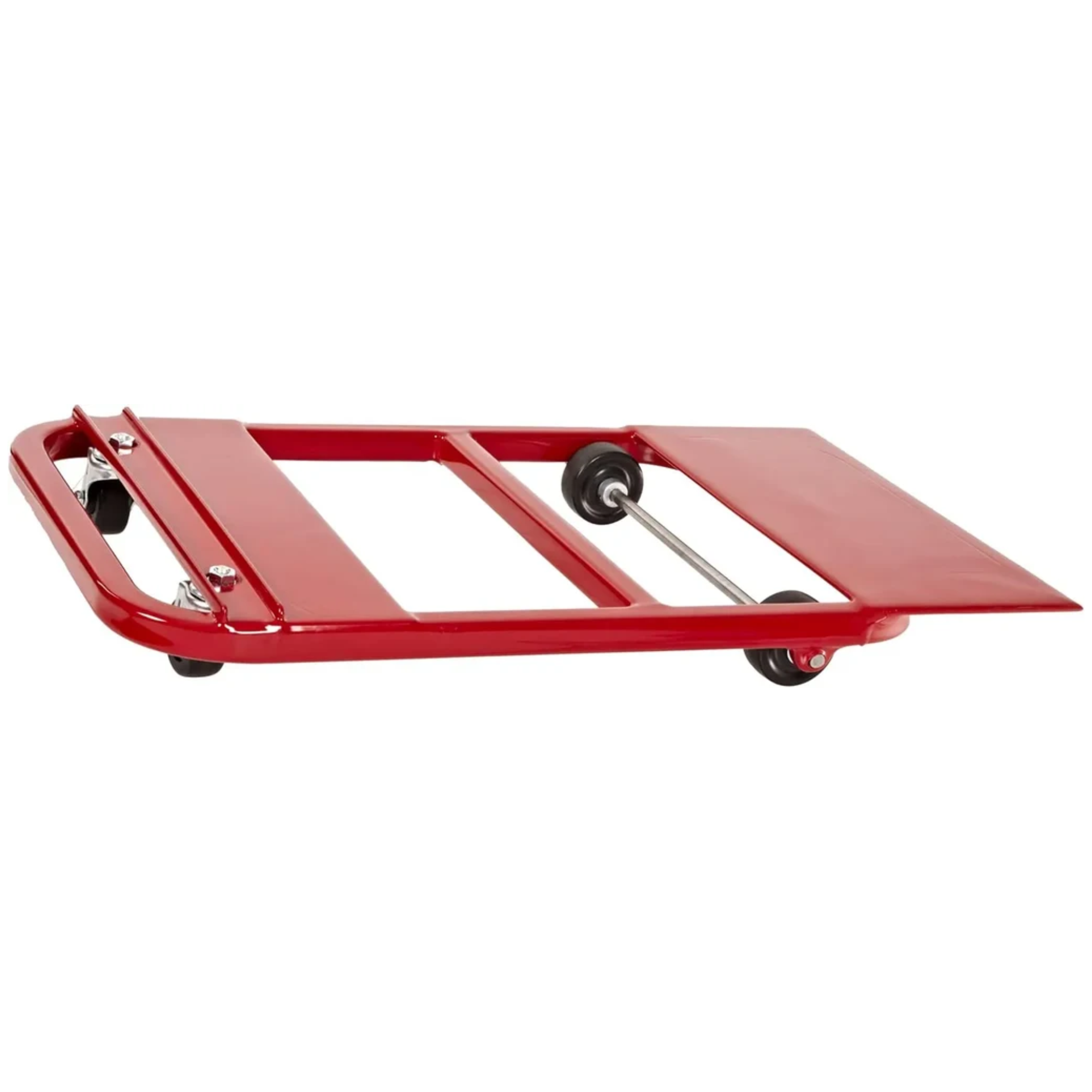

- Model 3218 – 18″ W x 32″ L (Legal-Size) — Built for legal-size file cabinets and wider storage units. Provides additional platform area for cabinets with a wider footprint. Shipping weight: 22 lbs.

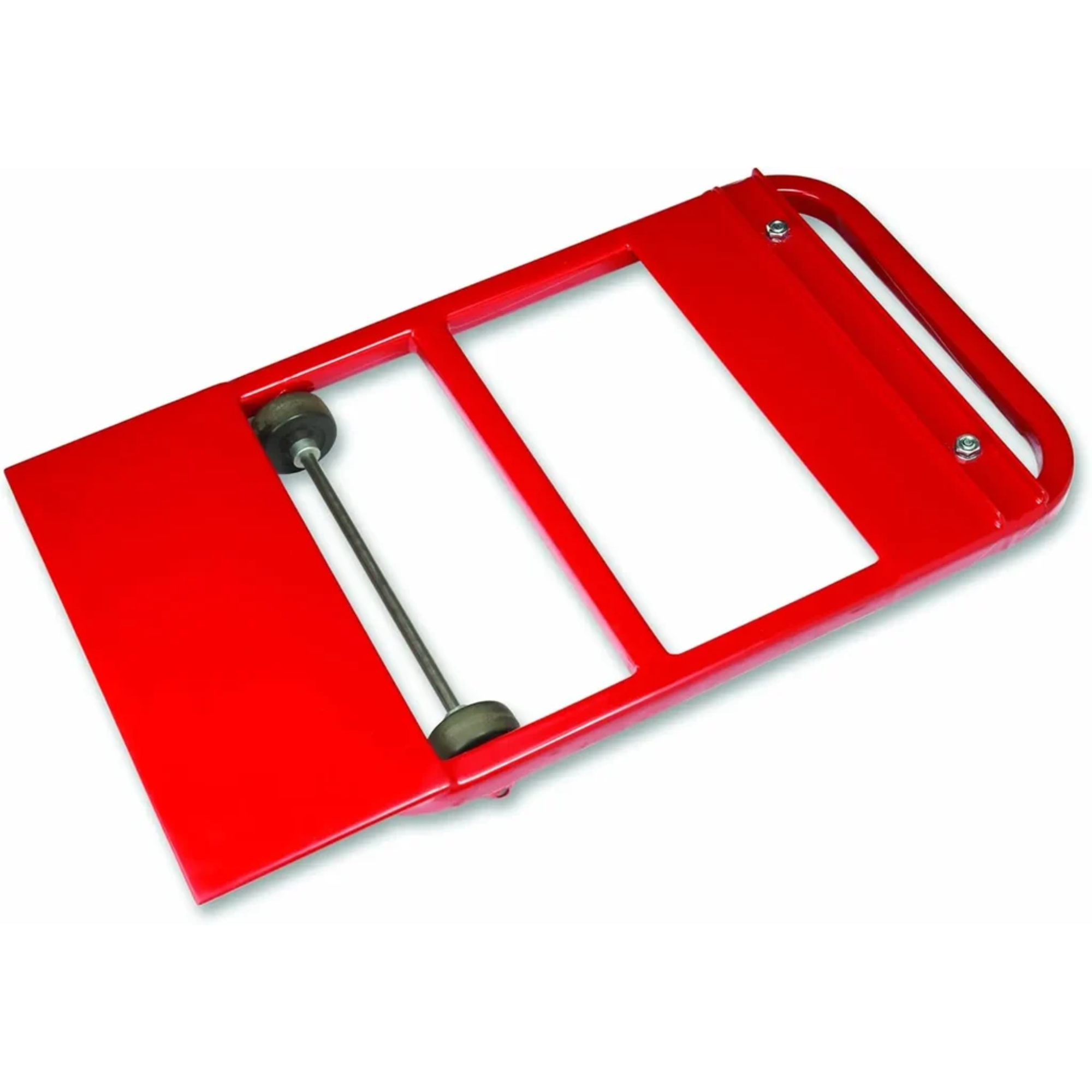

- Model 3220 – 20″ W x 32″ L (Extra-Wide) — The widest platform in the lineup, designed for oversized file cabinets, lateral filing systems, small appliances, and heavy crates that exceed standard cabinet dimensions. Shipping weight: 24 lbs.
All three models share the same 600 lb load capacity, lever-lift mechanism, counter-balance stability system, and non-marring caster configuration. Choose the width that matches the base dimensions of the cabinets you need to move most frequently.
Applications
Office relocations and reconfigurations are the primary use case for this filing cabinet dolly. During tenant build-outs, floor remodels, or departmental reorganizations, facilities teams can reposition loaded cabinets throughout a building without bringing in outside movers or requiring workers to empty and reload drawers. The lever-lift design means a single custodian or maintenance worker can handle the job safely and independently.
Schools and universities use these dollies to relocate administrative file cabinets between offices, move storage units during classroom conversions, and reposition records cabinets in archives and media centers. Government offices, law firms, medical practices, and financial institutions — all environments with high volumes of file storage — depend on the legal-size and extra-wide models for their larger cabinet formats.
Beyond file cabinets, the 600 lb capacity and flat platform make this dolly effective for moving small appliances, safes, drums, crates, and boxed equipment. Any heavy, compact load that fits within the platform dimensions can be lifted and transported with the same lever-action mechanism.
Selection Assistance
Selecting the right file cabinet dolly starts with measuring the width of the cabinet base. The dolly platform must be wide enough to fully support the bottom of the cabinet for a stable, balanced lift. For standard two-drawer and four-drawer letter-size cabinets, the 15″ Model 3215 is the right fit. For legal-size cabinets or wider lateral files, choose the 18″ Model 3218. For oversized lateral filing systems, small appliances, or heavy crates, the 20″ Model 3220 provides the largest carrying surface.
If your facility also needs to move desks, tables, and other large furniture, consider pairing this filing cabinet dolly with a Mighty King desk lift for a complete one-person office moving solution. Both product lines share the same made-in-the-USA construction, non-marring caster design, and lifetime warranty.
Need help choosing? Barron Equipment’s material handling team can help match the right dolly to your cabinets and workflow. Fill out the form below or contact us directly.
