45FSHD-MC-FLP-3
45FSHD-MC-FLP-3

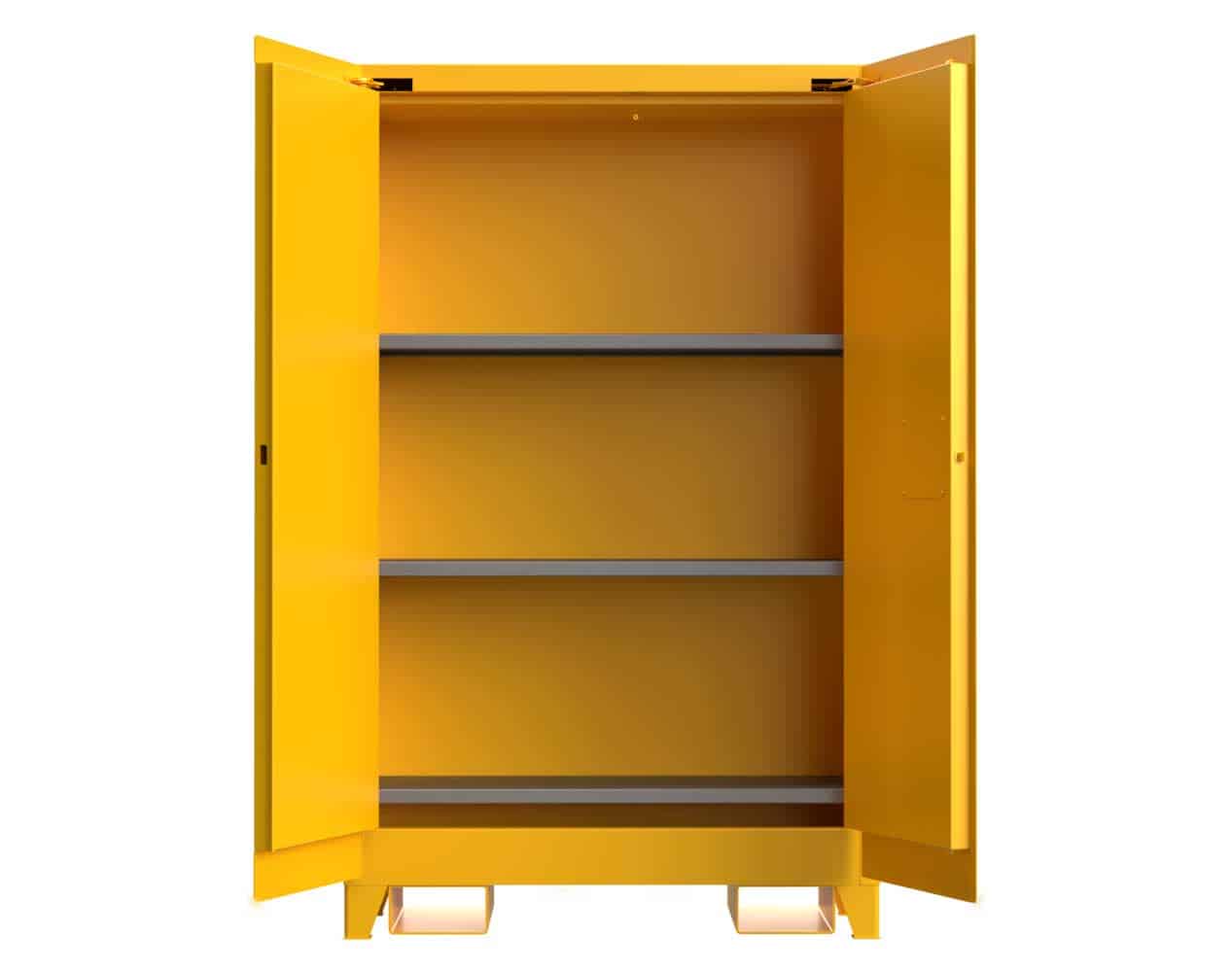

14 Gauge – 45 Gallon Flammable Cabinet With Manual Closing Doors – 43 in. W x 18 in. D x 70 in. H

Item ID: 45FSHD-MC-FLP-3 Category

Lead Time: 4 weeks

Barron’s Flammable Cabinet features 3 galvanized shelves with a capacity of 600 lbs each, along with forklift pockets. Proudly made in the USA, it ships fully assembled and is backed by a 15-year warranty. Efficient storage, enduring quality.

$2,827.11

SKU45FSHD-MC-FLP-3
Material12-Gauge Steel with a Powder Coat Paint Finish
Weight638 Lbs
Width43 Inches
Depth18 Inches
Height70 Inches
Door TypeManual Close
Number of Doors 2
Locking Doors1
Lock Type Keyed Lock - A 3 Point Locking System Secured By a Cylinder Lock
Overall Capacity 45 Gallons
Number of Shelves3
Shelf 1 SKU 3.7-18CGV
Shelf 1 Capacity 600 Lbs
Shelf Finish Galvanized
Leg Type 4-Inch Legs
Forklift Pockets Yes
Approvals OSHA, NFPA, FM
ShippingShips Fully Assembled and Ready for Use.
Warranty15-Year Warranty

Features and Benefits

The 45 gallon flammable safety cabinet has a variety of features and benefits that allow this fire cabinet to surpass your standard safety cabinets in quality and safety. Some of the features and benefits of this flammable liquid cabinet include:

    • 14 gauge, manual closing doors – extra protection for flammable liquid storage in high traffic areas
    • Heavy-duty leaf hinges – prevents common door sag on fire safety cabinets
    • Galvanized shelves – 14 gauge, chemical resistant, and easily adjusted without tools
    • Sloped shelves – divert spills to the back of the flammable storage cabinet and into the sump area
    • Magnetic shelf labels – keep the contents of your cabinet organized
    • 4” legs – allowing for easy forklift or pallet jack transportation of the flammable fire cabinet
    • 45 gallon fire cabinets meet NFPA 30 standards and OSHA standards - Double-wall construction with 1.5” air space, two 2” vents with flash arrestors, 2” deep leakproof sump area, static grounding connection, and non-sparking 3-point locking mechanism with key
    • This flammable material cabinet has been tested and approved by FM approvals and assists with keeping your business compliant with fire codes

Applications

This 45 gallon flammable storage cabinet can be used in environments where chemicals, flammable liquids and other combustible materials are found, or where flammable liquid safety is important. These environments often include hospitals, pharmacies, medical research labs, production facilities, educational labs and more.

Specifications

Selection Assistance

Need help with finding the right cabinet for your company? Our team from Barron Equipment can help with that! Fill out the form and product specialist will be in touch soon.







Product Specification

Steel Gauge

Product Width

Product Depth

Product Height

Shelf Count

3

FAQs

When is a manual-closing flammable cabinet the right choice over a self-closing model?

Manual-closing doors work well in lower-traffic areas where the cabinet is not left open frequently and where budget is a factor. The doors open to a full 180 degrees for easy loading and self-latch when pushed closed, so they still secure the contents. Choose the self-closing version for high-traffic environments where doors may be left open and hands-free closure adds a layer of fire safety.

Does this manual-close fire cabinet still meet NFPA 30 and OSHA standards?

Yes. Both manual-closing and self-closing versions meet NFPA 30 and OSHA requirements. This cabinet includes double-wall construction with a 1.5-inch air space, two 2-inch vents with flash arrestors, a 2-inch leakproof sump, a static grounding connection, and a non-sparking 3-point locking mechanism. It is also tested and approved by FM Approvals.

How much can I save by choosing the manual-closing version?

The manual-closing 45-gallon flammable cabinet is priced lower than the self-closing version. Both models share the same 14-gauge all-welded steel body, three galvanized shelves, and full compliance ratings. The cost difference comes from the door mechanism — manual doors do not include the automatic closure system or fusible link found in the self-closing model.

What shelving is included in this 45 gallon flammable storage cabinet?

Three galvanized steel shelves are included, each supporting up to 600 pounds. The shelves are sloped to direct spills toward the back of the cabinet and into the sump area. They adjust without tools and include magnetic labels for organized content identification.

How do the manual-closing doors latch and lock?

The doors open to a full 180 degrees and self-latch when you push them closed. A non-sparking 3-point locking mechanism secures the doors, and the keyed cylinder lock prevents unauthorized access. The latching action engages automatically — you just need to push the door shut.

Can this flammable liquid cabinet be moved after placement?

Yes. The cabinet stands on legs with built-in forklift pockets, making it easy to reposition with a forklift or pallet jack. It ships fully assembled, so it is ready for use the moment it arrives at your facility.
