14 Gauge – 90 Gallon Flammable Cabinet With Self Closing Doors – 43 in. W x 34 in. D x 70 in. H

Item ID: 90FSHD-SC-FLP-3 Category

Lead Time: 6 weeks

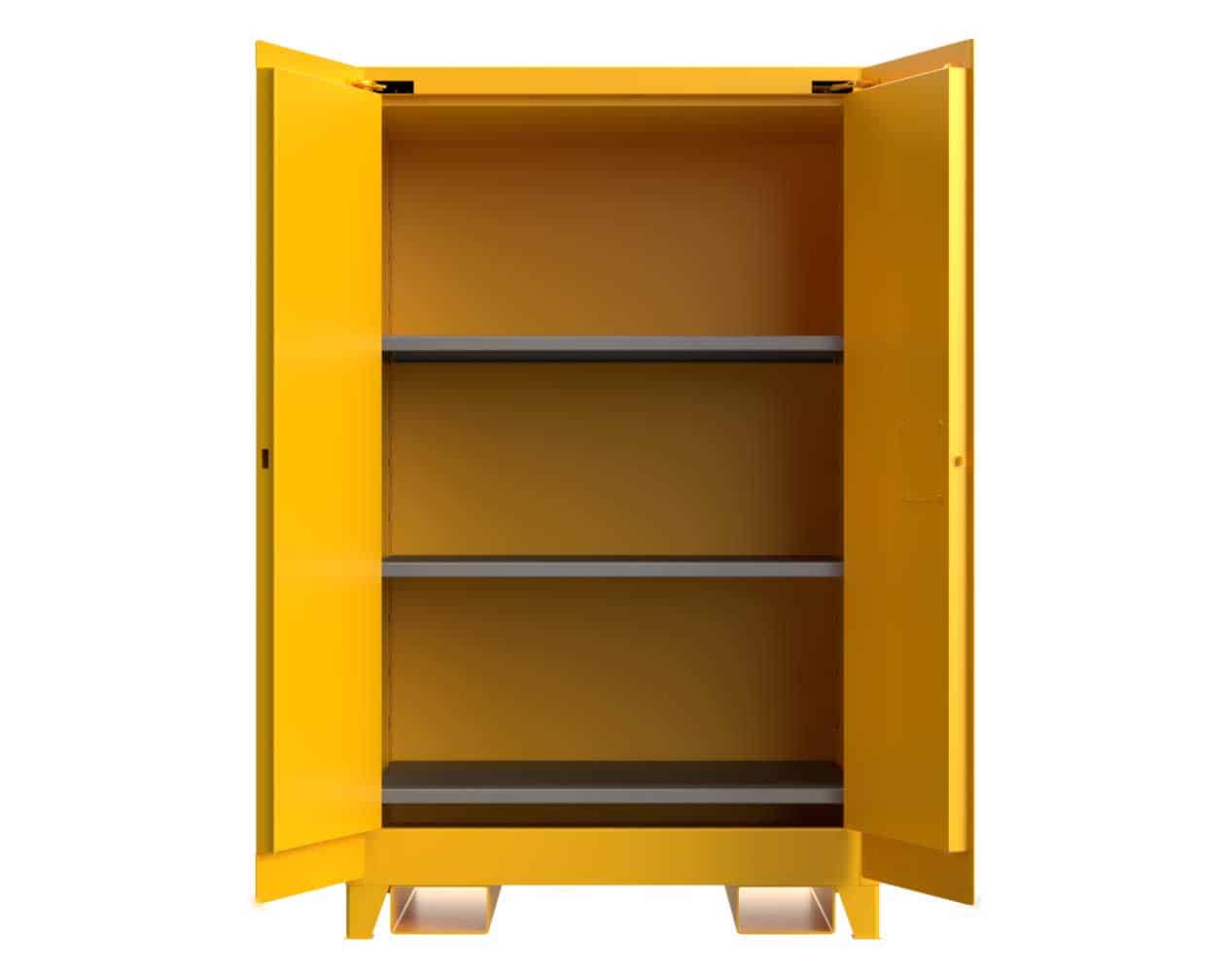

Barron’s Flammable Cabinet features 3 galvanized shelves with a capacity of 600 lbs each, along with forklift pockets. Proudly made in the USA, it ships fully assembled and is backed by a 15-year warranty. Efficient storage, enduring quality.

$4,509.65

SKU90FSHD-SC-FLP-3
Material14-Gauge Steel, All-Welded Body Construction
Weight878 Lbs
Width43 Inches
Depth34 Inches
Height70 Inches
Door TypeSelf Close
Number of Doors 2
Locking Doors1
Lock Type Keyed Lock - A 3 Point Locking System Secured By a Cylinder Lock
Overall Capacity 90 Gallons
Shelf 1 SKU 3.7-34CGV
Shelf 1 Capacity 600 Lbs
Shelf Finish Galvanized
Leg Type 4-Inch Legs
Forklift Pockets Yes
Approvals OSHA, NFPA, FM
ShippingShips Fully Assembled and Ready for Use.
Warranty15-Year Warranty

Features and Benefits

The 90 gallon flammable safety cabinet has a variety of features and benefits that allow this fire cabinet to surpass your standard safety cabinets in quality and safety. Some of the features and benefits of this flammable liquid cabinet include:

  • 14 gauge, self closing doors – extra protection for flammable liquid storage in high traffic areas
  • Heavy-duty leaf hinges – prevents common door sag on fire safety cabinets
  • Galvanized shelves – 14 gauge, chemical resistant, and easily adjusted without tools
  • Sloped shelves – divert spills to the back of the flammable storage cabinet and into the sump area
  • Magnetic shelf labels – keep the contents of your cabinet organized
  • 6” legs – allowing for easy forklift or pallet jack transportation of the flammable fire cabinet
  • 90 gallon fire cabinets meet NFPA 30 standards and OSHA standards - Double-wall construction with 1.5” air space, two 2” vents with flash arrestors, 2” deep leakproof sump area, static grounding connection, and non-sparking 3-point locking mechanism with key
  • This flammable material cabinet has been tested and approved by FM approvals and assists with keeping your business compliant with fire codes

Applications

This 90 gallon flammable storage cabinet can be used in environments where chemicals, flammable liquids and other combustible materials are found, or where flammable liquid safety is important. These environments often include hospitals, pharmacies, medical research labs, production facilities, educational labs and more.

Selection Assistance

Need help with finding the right cabinet for your company? Our team from Barron Equipment can help with that! Fill out the form and product specialist will be in touch soon.





Product Specification

Product Width

Product Depth

Product Height

Shelf Count

3

Steel Gauge

FAQs

Is this the largest flammable storage cabinet available from Barron Equipment?

Yes. At 90 gallons, this is the highest-capacity flammable safety cabinet in the Strong Hold lineup offered by Barron. It stands 70 inches tall and 34 inches deep, giving you the combined height and depth needed to store the maximum volume of flammable liquids in a single code-compliant unit.

How does NFPA 30 limit how many gallons I can store in one area?

NFPA 30 allows up to 120 gallons of Class I, II, and IIIA flammable and combustible liquids in approved safety cabinets within a single fire area. A single 90-gallon cabinet covers most of that allowance in one unit, which can simplify compliance by reducing the number of cabinets your team needs to manage and inspect.

How does this 90 gallon fire cabinet compare to the 60 gallon model?

Both share the same 43-inch width and 34-inch depth. The 90-gallon model adds 21 inches of height (70 inches vs. 49 inches) and includes a third shelf. If your ceiling clearance allows a full-height cabinet and you need maximum flammable liquid storage, this model delivers 50 percent more capacity in the same floor footprint.

What safety features are built into this flammable liquid cabinet?

The cabinet includes double-wall construction with a 1.5-inch insulating air space, two 2-inch vents with flash arrestors, a 2-inch leakproof sump area, a static grounding connection, and a non-sparking 3-point locking mechanism with key. The self-closing doors shut and latch automatically, and a fusible link ensures closure under fire conditions even if doors are held open.

What type of shelving does this 90 gallon flammable cabinet include?

Three galvanized steel shelves are included, each rated at 600 pounds. Galvanized construction provides chemical resistance, and the sloped shelf design directs spills toward the back of the cabinet and into the sump. Magnetic shelf labels are also included to help identify stored contents quickly.

How is this fire safety cabinet moved and secured in place?

The cabinet sits on steel legs with forklift pockets for easy repositioning with a forklift or pallet jack. Floor anchoring plates are also available for permanent installations. Because of its size and weight, mechanical assistance is required for any relocation.
