Overview
Full view commercial garage doors are sectional overhead doors constructed from heavy-duty extruded aluminum frames fitted with wide glass or polycarbonate panels. Designed to maximize natural daylighting and modern aesthetic appeal in fire stations, restaurants, auto dealerships, breweries, wineries, and commercial service bays, these doors feature durable aluminum stiles and rails with clear anodized finishes, custom powder coating options, and a variety of insulated and non-insulated glazing choices.
Features & Benefits
Barron Equipment offers C.H.I. Models 3295 and 3297 Full-View Aluminum Doors, part of the C.H.I. 3200 Series commercial overhead door line. These doors combine contemporary architectural styling with long-lasting performance for both commercial and residential applications.
Engineered with heavy-duty 2-inch 6063-T6 extruded aluminum alloy stiles and rails, these doors provide excellent corrosion resistance, structural strength, and lightweight operation. The aluminum frame construction allows for large expanses of glass while maintaining durability for demanding commercial environments.
Removable interior glazing retainers simplify maintenance and make it easy to replace damaged sections or update the appearance of the door in the future. Available finish options include white, clear anodized aluminum, and RAL powder coat colors, allowing architects and facility managers to match virtually any building design.
Clear anodized finishes help protect aluminum surfaces from weathering and corrosion, while powder coat finishes provide a durable, low-maintenance surface suitable for outdoor applications, humid environments, and facilities exposed to frequent use.
Glazing & Panel Options
C.H.I. Full-View Commercial Garage Doors offer a wide range of glazing configurations to meet daylighting, thermal efficiency, privacy, and impact-resistance requirements.
Available options include clear glass, tinted glass, frosted glass, insulated Low-E glass, Triple-Wall Lexan®/Polygal® polycarbonate panels, and solid aluminum panels.
Low-E insulated glazing helps improve thermal performance and energy efficiency by reducing heat transfer through the door while maximizing natural light. Frosted and tinted glazing options increase privacy without sacrificing daylight.
For facilities that require increased impact resistance or light diffusion, Triple-Wall Lexan® and Polygal® panels provide a durable polycarbonate alternative to traditional glass. Solid aluminum panels are also available for applications where security and privacy are priorities, particularly in lower door sections.
Building Applications
Full-view commercial garage doors are commonly used in:

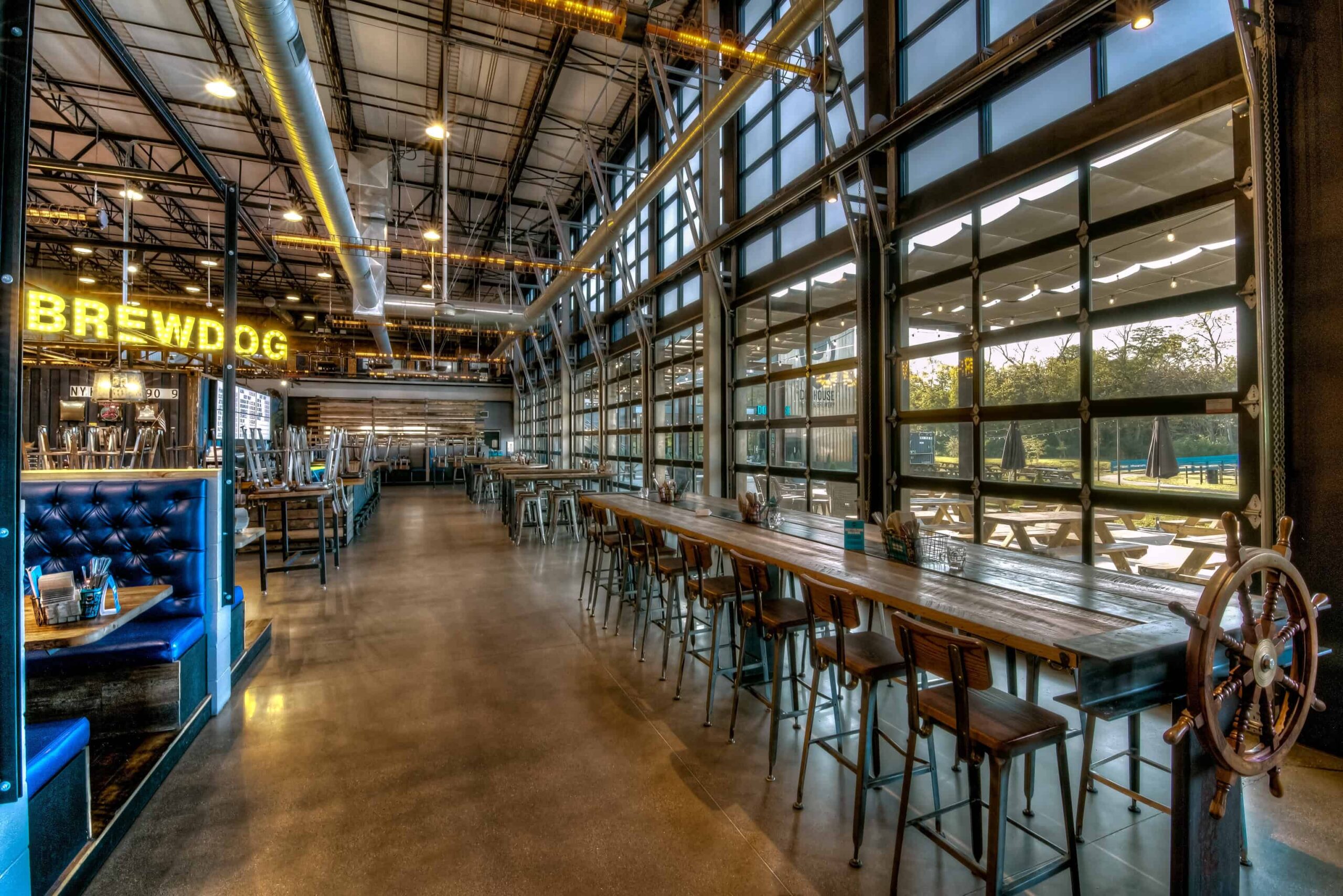

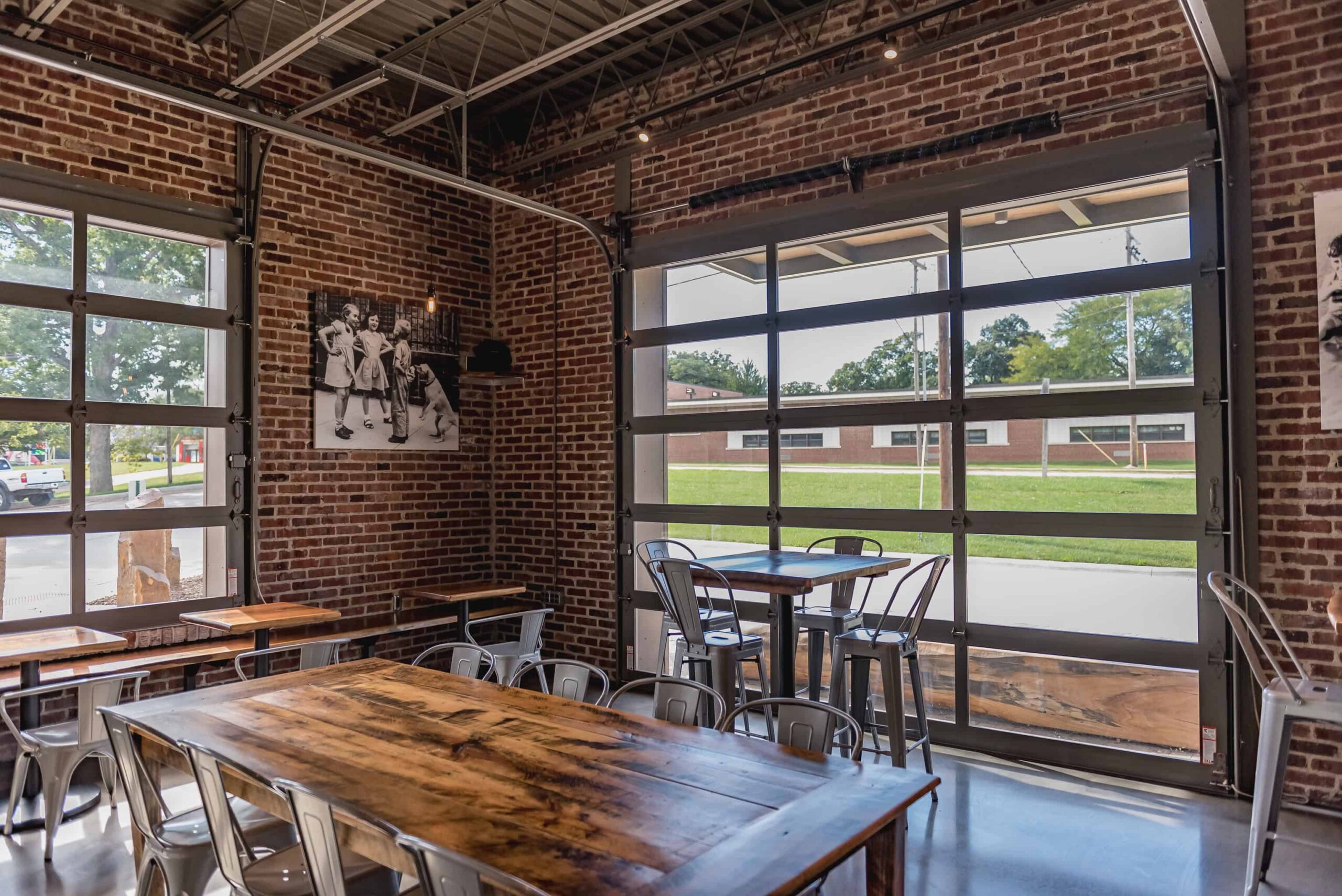

- Restaurants & breweries with indoor/outdoor patio openings
- Fire stations
- Auto dealerships
- Service stations
- Commercial service bays
- Equipment dealerships
- Distribution facilities

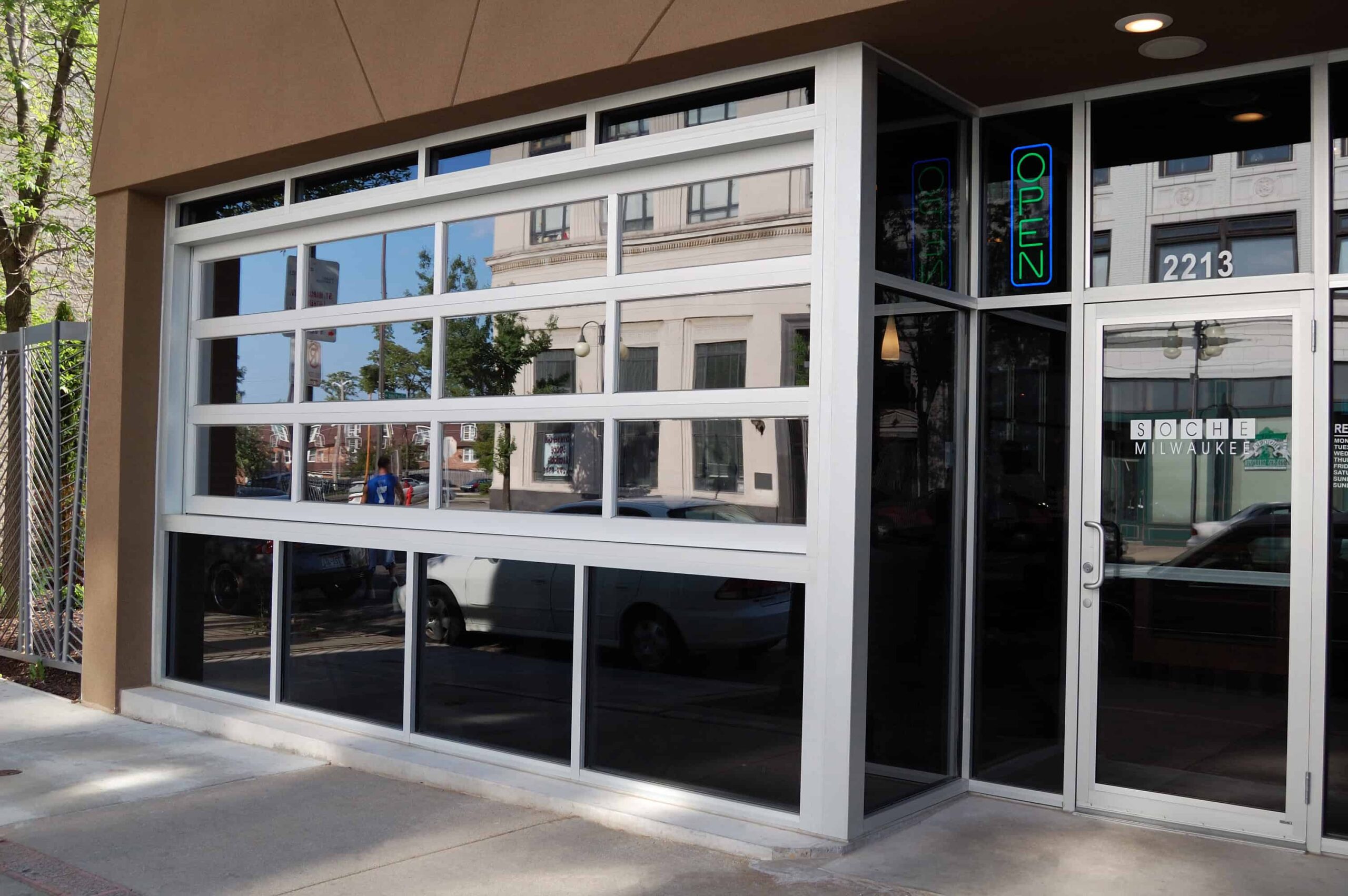

- Retail storefronts
- Wineries
- Modern residential garages
Their combination of visibility, natural lighting, and architectural appeal makes them ideal wherever overhead door functionality and contemporary design are equally important.
Model Selection Chart
| Model | Finishes & Colors | Glass & Panel Options | Door Construction | Max Size |
|---|---|---|---|---|
| 3295 | White; Clear Anodized; RAL Powder Coat (188 Colors) | Clear Glass; White Glass; Low-E Glass; Tinted Grey Glass; White Frosted Glass; Triple-Wall Lexan/Polygal; Solid Aluminum Panels | 2" Thick Stile & Rail Construction | 24'2" x 16'0" |
| 3297 | White; Clear Anodized; RAL Powder Coat (188 Colors) | Clear Glass; White Glass; Low-E Glass; Tinted Grey Glass; White Frosted Glass; Triple-Wall Lexan/Polygal; Solid Aluminum Panels | 2" Thick Stile & Rail Construction | 24'2" x 16'0" |
Model Selection Assistance
Our product specialists at Barron Equipment can help you select the right full-view commercial garage door based on opening size, insulation requirements, glazing preferences, finish options, building use, and aesthetic goals.
Whether you are comparing the C.H.I. Model 3295 or Model 3297, need assistance choosing insulated Low-E glass versus polycarbonate glazing, or require guidance on custom powder coat finishes, our team can help identify the best solution for your application. Contact us using the form below to speak with a product specialist.
