Overview

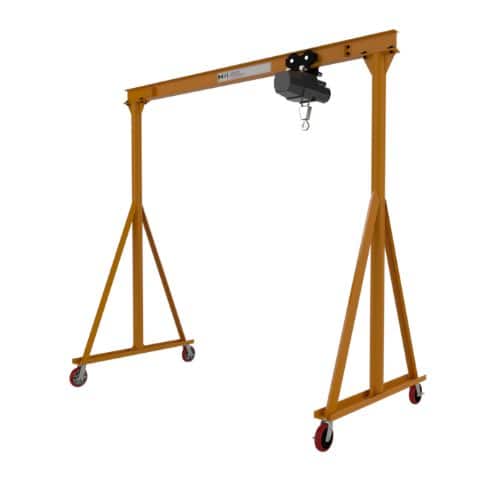

Heavy loads don't always stay in one place. The HSI 511HD Series delivers industrial-grade lifting capacity in a fully portable, no-foundation gantry crane — purpose-built for operations that need serious lift ratings without the permanence and cost of a fixed installation. Designed for everyday use, including production, installation, and maintenance service where portability is required, with no foundation requirement.
Available in capacities from 2 ton (4,000 lbs) to 5 ton (10,000 lbs) for direct ecommerce purchase, the 511HD is the heavy-duty tier in Barron Equipment's portable gantry crane lineup. At these weight ratings, the crane is engineered with forged steel heavy-duty casters and can be optionally equipped with motorized movement for high-cycle industrial use.
Not the right capacity? See the HSI 511 for lighter loads up to 2,000 lbs, or contact Barron Equipment if your application requires configurations beyond 10,000 lbs.
Heavy-Duty Construction for Industrial Applications
At 2 ton and above, gantry crane design demands more than standard caster hardware. Forged steel heavy-duty swivel casters are used at these capacity ratings, featuring roller bearings for ease of movement and grease fittings for ease of maintenance. Swivel locks and wheel locks are available to stabilize the crane during lifts — critical for safety at these load levels. Motorization is available for the 511HD and is strongly recommended for heavier configurations. At 3 ton and 5 ton capacities, manually repositioning a loaded gantry crane introduces ergonomic risk and throughput limitations. Powered movement supports both operator safety and production efficiency.
Capacities, Spans & Options
Barron Equipment's ecommerce platform stocks 511HD configurations in the following capacity ranges:
| Capacity | Pounds |
|---|---|
| 2 ton | 4,000 lbs |
| 3 ton | 6,000 lbs |
| 5 ton | 10,000 lbs |
Span lengths are available up to 30+ feet. Custom spans for non-standard facility requirements are available — contact Barron Equipment for a quote.
Available options and accessories include:
- Tight Wire Kit (Festooning / "Tagline")
- Swivel Locks and Wheel Locks
- Rigid or 'V' Groove Casters
- Hoist & Trolley Packages (electric chain or wire rope, matched to your capacity)
- Motorization for powered floor movement
Industrial Applications — Where Heavy-Duty Portability Wins
At 2 ton and above, a portable gantry crane fills a critical gap: the loads are too heavy for lighter-duty systems, but the operation doesn't justify — or doesn't allow — a fixed installation. Common applications include:
- Heavy manufacturing and metalworking — Positioning large weldments, castings, and fabricated components between operations without ceiling-mounted infrastructure
- Automotive and powertrain service — Engine pulls, transmission removal, and drivetrain work in service bays or production cells
- Maintenance and overhaul — Removing and reinstalling heavy motors, gearboxes, compressors, and pumps in facilities without fixed overhead cranes
- Equipment installation and rigging — Setting heavy machinery during plant build-out or reconfiguration
- Construction and industrial sites — Temporary heavy-lift capability on job sites with flat, stable surfaces
- Warehousing and logistics — Spot-lifting applications where bridge crane coverage doesn't reach
The absence of a foundation requirement is especially valuable at this capacity range: 5-ton installations that would otherwise require significant civil engineering and structural work can instead be deployed and operational in hours.
Request a Quote or Buy Direct
The 511HD is available in 2 ton, 3 ton, and 5 ton configurations for direct ecommerce purchase at Barron Equipment. Select your capacity, span, and accessories and add to cart — or contact our product specialists if your application calls for a custom span, specialized caster configuration, or motorization package.
