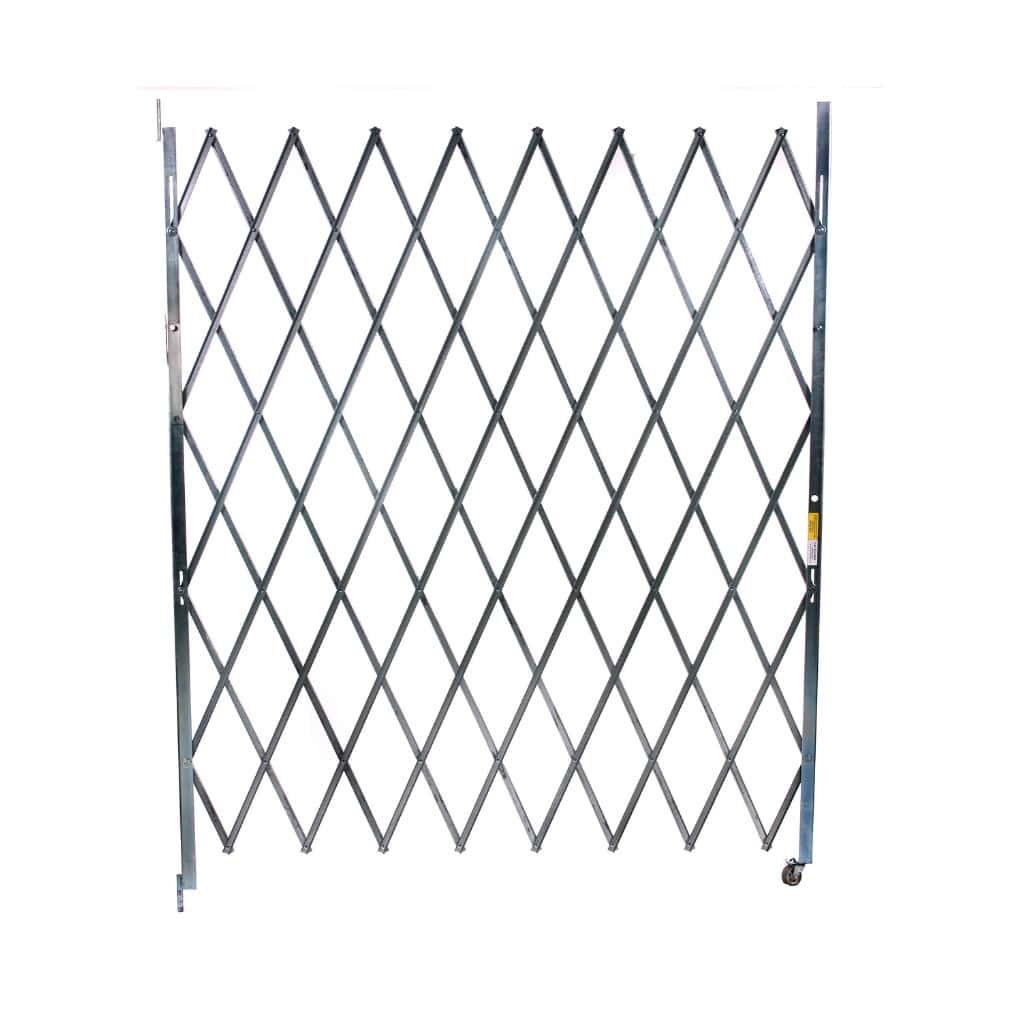

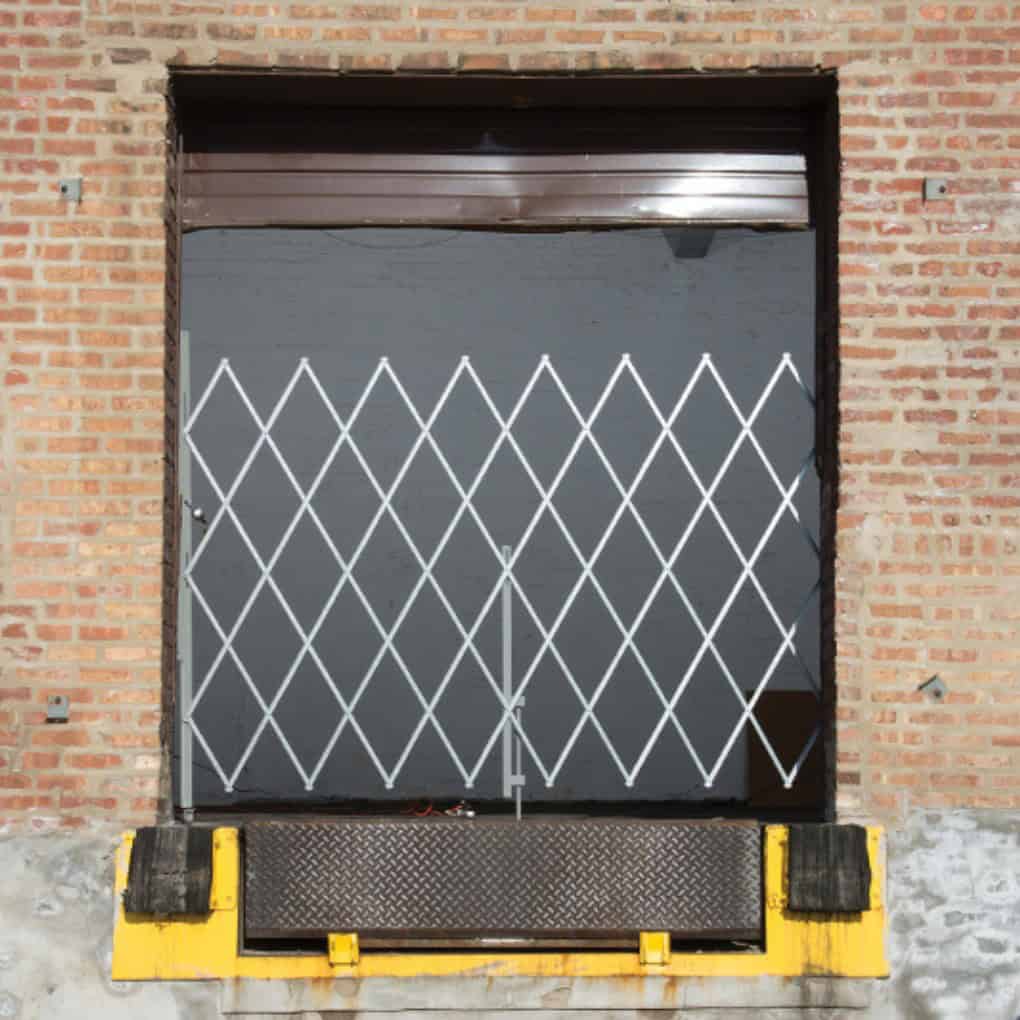

Single Steel Folding Gates are designed to secure dock, receiving, garage and service doorways, hallways and entrance ways up to 12 feet wide without sacrificing visibility or air circulation. For larger openings use a Pair Folding Gate.
Our Galvanized Steel Folding Gates pivot 180 Degrees on their mountings, moving completely out of the opening and leaving it completely clear of obstructions. Illinois Engineered Products Folding Gates can be installed virtually anywhere and any way you need them, including but not limited to inside door jambs, outside door jambs, between posts or bollards, attached to pallet racks, between walls and even on windows! Installs in less than 30 minutes!
SPECIFICATIONS
- Heavy-duty 14-gauge steel u-channel webbing, riveted back-to-back with zinc plated rivets
- Heavy-duty 12-gauge steel 1-1/2”x1-1/2” vertical angle frame
- Galvanized Finish
- Solid Steel Casters
- Locking Bar
- Standard: Locks on right; Optional: Lock on Left
- Install in Door Jamb or Face-mount
| Weight | Varies By Size |
| Dimensions | Varies By Size |
| Channel | 3/8″ x 3/4″, 14 Gauge Galvanized |
| Frame | 1-1/2″ x 1-1/2″, 12 Gauge Angle Iron, Zinc Plated |
| Caster | 2″ Metal Caster Welded To Frame, Zinc Plated |
| Hasp | 3/16″ Hasp Welded To Frame |
| Drop & Suppport Pins | 5/8″ Dia. Welded To Frame, Zinc Plated |
| U-Bracket | 3/16″ Steel Welded To Frame At Top & Bottom |
| Locking Bar | 1-1/2″ x 1-1/2″, 12 Gauge Angle Iron, Zinc Plated |
| Standard Mounting Bkt | 2-1/2″ x 7″ Steel “L” Bracket, Zinc Plated |
| Rivets | 3/16″ x 1/2″ Steel, Zinc Plated |
