Overview
Barron Equipment and Overhead Door carries the LiftStik series of portable lifter transporters from Presto Lifts. With capacities ranging from 185 lbs to over 400 lbs, these sleek, user-friendly machines handle a wide range of lifting and transport tasks. Each lift stick model is battery powered and designed to raise, lower, and move light to mid-weight loads in areas where heavy equipment is not practical.
These transporter lift units are built for single-operator use. The operator rolls the unit up to a load, uses the push-button control to raise it to the desired height, and wheels it to where it needs to go. This makes the lift stick a good fit for lift transportation tasks in laboratories, offices, warehouses, and other spaces where loads need to be moved safely without manual lifting.
| SKU | Product Length | Product Width | Product Height | Load Capacity | Raised Height | Lowered Height | Power Unit | Lifting Speed |
|---|---|---|---|---|---|---|---|---|

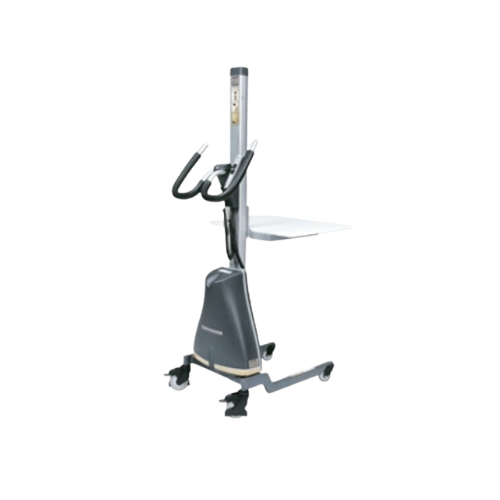

| PLS52-185 | 31 Inches | 23.5 Inches | 63 Inches | 185 Lbs | 56 Inches | 5 inches | 24VDC | 17 Seconds |

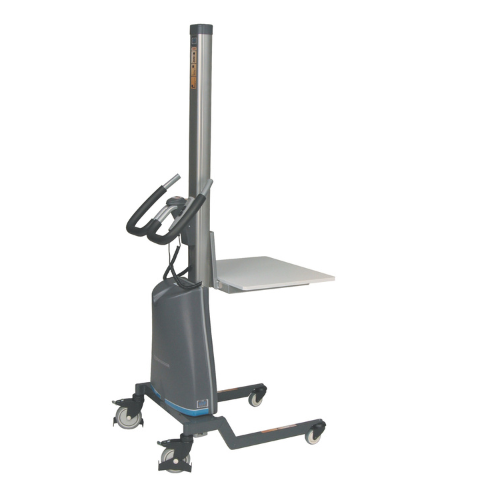

| PLS60-220 | 33 Inches | 23.5 Inches | 76 Inches | 220 Lbs | 65 Inches | 5.5 Inches | 24VDC | 20 Seconds |

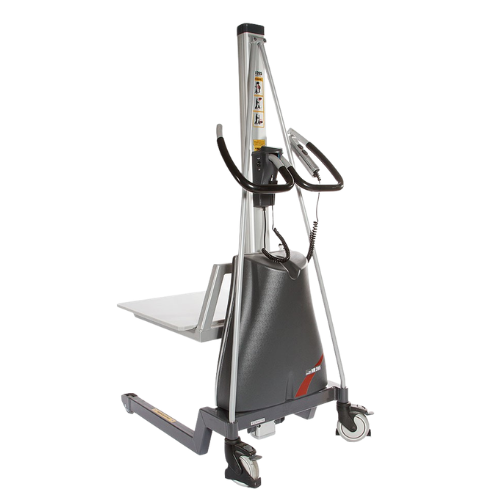

| PLS48-450 | 40 Inches | 22 Inches | 63 Inches | 445 Lbs | 52 Inches | 4.5 Inches | 24VDC | 22 Seconds |
Features and Benefits
A continuous lifting chain provides two vertical travel speeds with smooth starts and stops. It also allows for precise load positioning with zero drift. Because the system is mechanical, there is no risk of hydraulic fluid leaks, so the Lift Stik is suited for a wide range of light industrial, laboratory, and even office applications. The narrow mast design allows operators a clear view of where they are traveling. Two fixed and two swivel casters give the LiftStik exceptional maneuverability even in congested areas. Rear wheels are equipped with toe guards and foot-operated floor locks. Loads are centrally and evenly distributed over all 4 wheels for maximum stability.
All three models in this portable lifter transporters series run on 24VDC power with an on-board 115 Volt charger. A push-button corded remote control mounted on the handle gives the operator simple lift control during use. A battery charge indicator is easily visible, so workers always know when it is time to recharge. All models come standard with a platform mounted on the forks, and the mast and motor covers are sealed for added protection.
Each transporter lift also includes mechanical overload protection and ball bearing wheels that roll easily on all surfaces. Unit weights range from 86 lbs to 142 lbs depending on the model, keeping the machines easy to move and store.
Available accessories expand the range of lift transportation tasks these units can handle. Options include a V-cradle with stainless steel platform and 360-degree rotation for handling rolls, coils, or cylinders, a lifting arm with lift bolt for overhead handling of objects with chain or lifting straps, and a reel mandrel that expands to engage the roll core so it can be reoriented from eye-to-sky to eye-to-horizon.
Applications
The lift stick series handles a wide range of tasks in environments where loads are too heavy for one person but too light to justify a forklift. Common uses include:
- Lifting and positioning parts at workbenches, inspection stations, and assembly areas
- Shelving and stocking in storage rooms, stockrooms, and retail back-of-house areas
- Picking operations at vertical carousels
- Handling rolls, coils, and cylinders using optional V-cradle or reel mandrel accessories
- Loading and unloading materials from shelves, carts, and conveyors
- Transporting blanks and finished parts at CNC machines
These portable lifter transporters work well in laboratories, office storage rooms, and warehouses with light industrial needs. Their light aluminum construction with four casters that include rear foot-operated locks makes them easy to handle, move, and store. A single lift stick can help workers avoid injury, reduce the risk of damaged goods, and speed up workflow in any facility that handles loads in the 185 to 445 pound range.
Selection Assistance
The LiftStik series includes three models. The right choice depends on your load weight and the height you need to reach.
The PLS52-185 has a 185 lb capacity with a raised height of 56 inches and is the lightest unit at 86 lbs. The PLS60-220 has a 220 lb capacity with a raised height of 65 inches and weighs 100 lbs. The PLS48-450 has a 445 lb capacity with a raised height of 52 inches and weighs 142 lbs.
If your loads are lighter and you need to reach higher shelves, the PLS60-220 provides the tallest reach. If your loads are heavier but do not need to go as high, the PLS48-450 offers the most capacity. The PLS52-185 is the most compact and lightweight option for the lightest loads.
Barron Equipment and Overhead Door can help you select the right transporter lift for your workspace and load needs. Fill out the form on this page, and a product specialist will follow up with recommendations.
