“Manual Stacker – Multiple Load Centers, Raised Heights, and Lowered Heights”

Barron Equipment and Overhead Door carries manual lift stackers built for facilities that need a simple, reliable way to raise and move loads without powered equipment. These manual foot pump stackers are compact enough to operate in confined or congested spaces, and most models fit easily through standard doorways. The M100 and M400 series from Presto Lifts give workers the ability to lift loads up to 1,000 pounds using a foot-operated hydraulic pump — no electricity or batteries required.

The M100 series models come with a solid platform for handling items like dies, molds, and boxed goods. The M400 series models feature adjustable forks with a straddle base, making them a good fit for lifting and stacking pallets and skids. Both types of manual stacker lift loads from as low as a few inches off the ground to heights over five feet, depending on the model. This range makes them useful for loading shelves, feeding workstations, and stacking materials at different levels throughout a facility.

Each manual lift stacker in this selection is rated for a 1,000-pound load capacity, which covers the weight of most standard industrial loads. The foot pump hydraulic system lets operators raise loads in a controlled way without bending, straining, or using their upper body. A release valve lowers the platform or forks smoothly when the load needs to come back down.

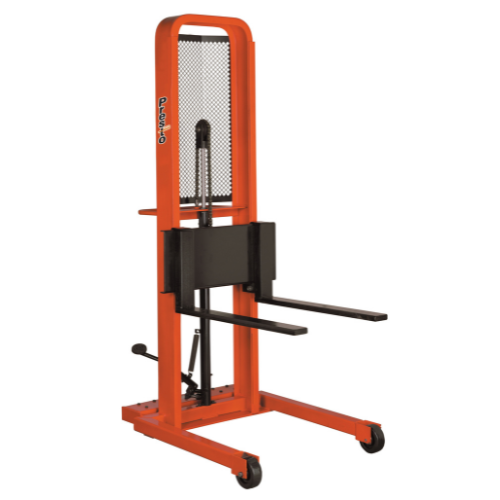

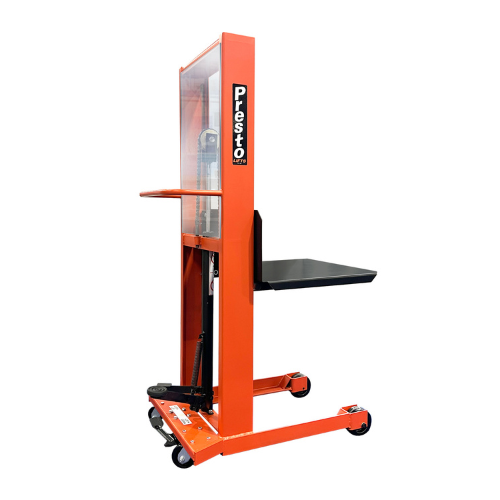

The M100 series platform models (M152 and M166) feature a 24-inch wide by 24-inch long solid platform that supports flat-bottomed items and containers. The M400 series fork models (M452 and M466) use adjustable 30-inch forks with a straddle base, which allows them to pick up pallets and skids directly from the floor. The straddle legs wrap around the load for added stability during lifting.

Raised heights range from 50 inches on the M452 to 66 inches on the M166, giving facilities options for low-level transfers or higher stacking tasks. The low profile of each unit — as low as 3¼ inches on the M400 series — allows forks or platforms to slide under loads with minimal clearance. Standard wheels are phenolic plastic, and optional wheel types are available for different floor conditions.

Because these units run entirely on manual power, there are no motors, batteries, or charging stations to maintain. This keeps operating costs low and makes a manual stacker a practical choice for facilities that handle moderate lift volumes without the need for powered equipment.

A manual lift stacker is a good fit for a wide range of tasks in industrial and commercial settings. Common uses include:

Facilities in manufacturing, maintenance, warehousing, and assembly operations use manual stackers regularly. These units work well in spaces where a full-size forklift is too large or where the volume of lifts does not justify powered equipment. A manual stacker lift also serves as a backup lifting tool in facilities that already use powered stackers, giving teams an option when the main equipment is in use or unavailable.

Choosing between a platform model and a fork model depends on the type of loads your facility handles. If you move flat-bottomed items, containers, or boxed goods, the M100 series platform stackers (M152 or M166) provide a stable, solid surface. If you work with pallets or skids, the M400 series straddle fork stackers (M452 or M466) allow you to pick loads directly off the floor.

Next, consider the height you need. The M152 reaches 52 inches and the M166 reaches 66 inches. On the fork side, the M452 reaches 50 inches and the M466 reaches 64 inches. Match the raised height to the shelving, racking, or work surface where loads need to go.

Barron Equipment and Overhead Door can help you select the right manual stacker for your workspace and load requirements. Fill out the form on this page, and a product specialist will follow up with recommendations based on your specific needs.
