Safe, Reliable, High Capacity Load Transfer Between Multiple Levels

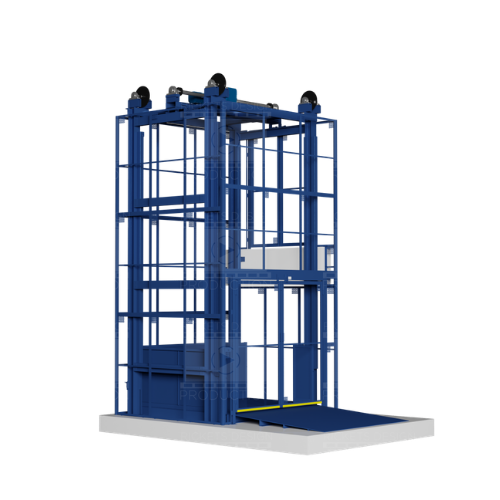

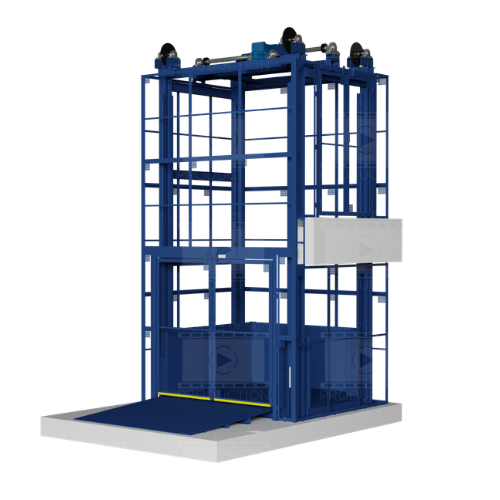

Autoquip’s 4-post high capacity mechanical vertical conveyors (VRCs) employs a heavy-duty SEW Eurodrive gear motor drive with instantaneous braking capability that ensures consistent, repeatable stopping and holding of the suspended carriage during loading and unloading. Carriage sizes can be extremely large and load capacities can be very high. The high capacity 4-Post mechanical freight lift travels up to 100 ft. with capacities up to 20,000 lbs.
All Autoquip lifts are built with standard safety features.
Autoquip ensures a safe operation when using our lifting equipment. We also offer advanced safety features designed to protect the particular needs of the customer’s application, as well as safety products that further protect your personnel, equipment, and operating zone.
To review the information on safety options below, and to have any of these items installed on your custom lift order, give Autoquip a call. Our experienced sales team will work with you to make sure the right lift and proper safety items are provided to get the job done and safeguard both your people and product.
- -Safety Guards & Handrails
- -Safety Mats
- -Bevel Toe-Guards
- -Hanging Toe Indicator Skirt
- -Electric Toe-Guard
- -Non-Skid Walking Surface
- -Velocity Fuses
- -Travel Limit Switch
- -Up-Stop Valve
- -Photo-Eye
- -Light Curtains
- -Accordion Skirts
- -Safety Enclosure System
- -Foot Activated Floor Locks
- -Emergency Stop Button
- -Key Lock Out Switch
- -Collision Detection
- -Audible Signals
- -Flashing Lights
- -Safety Wings
Durability and Quality
- High capacity steel rollers with spiral-wound, Teflon-impregnated bushings produce smooth and reliable carriage movement.
- Heavy-duty SEW Eurodrive gear motor drive extends the life of the freight lift for years and years of rugged, reliable service.
- Synchronized, dual-chain lifting system ensures the carriage will remain level throughout the lift’s vertical travel, even with off-centered loads.
- Minimum ¼ inch thick steel reinforced platform minimizes deck deflection, maximizes load stability, and extends life of the platform deck.
- Structural steel guide beams ensure consistent, reliable tracking of carriage rollers and extends the life of the beams.
Maintenance
- Heavy-duty SEW Eurodrive gear motor requires minimal service and maintenance.
- Maintenance-free carriage rollers require no lubrication.
- Eurodrive gear motor’s manual brake release overrides handle to help in lift start-up and trouble-shooting.
- Straddle design places much lower stress on the guide rollers, extending useful life.
Simplicity
- Four-point lifting handles much larger and heavier loads.
- Mechanical design enables up to 100 feet of total vertical travel.
- Mechanical vertical conveyors are programmable and can be called or sent to multiple levels in a building or conveyor system.
- Open carriage sides empower customers with versatility in load transfer direction and product flow.
Safety
- Load jam sensors suspend engine operation if the carriage or its load becomes jammed between landings.
- Motor control panel security requires personnel to activate a secure key switch before resuming lift operation following a load jam.
- Over-travel sensing switch suspends engine operation should the lift continue past the uppermost landing.
- Sensors on all lifting chains stop lift operation and movement if a slack chain is detected.
- Counterweight sensors serve as a back-up safety precaution to slack chain sensors by suspending engine operation when a counterweight is lifted out of the guide tube.
- Certified carriage brakes stop carriage falls in the very unlikely event of a sudden breakage of both lifting cables.
- Standard-issue shaft way barrier bar system improves personnel safety when carriage leaves the upper landing.
- Interlocked landing gates automatically lock once the vertical lift carriage leaves a landing and cannot be opened until the lift carriage returns to that landing.
- Gate status switches prevent lift operation while any gate is open.
- Minimum 3:1 structural factor of safety makes these lifts the most structurally sound in the industry.
- Compliance with recognized standards:
- ASME B20.1 – Safety Requirements for Conveyors and Related Equipment
- VRC Application Guidelines – as referenced by ASME B20.1
- NFPA 70 – National Electric Code
- ASTM-A36 – Structural Steel Standard
- ANSI Z535 – Safety Labeling Requirements
- AWS D.1 – Welding Standards
- Applicable portions of OSHA 29CFR1910 – General Workplace Safety
