Overview

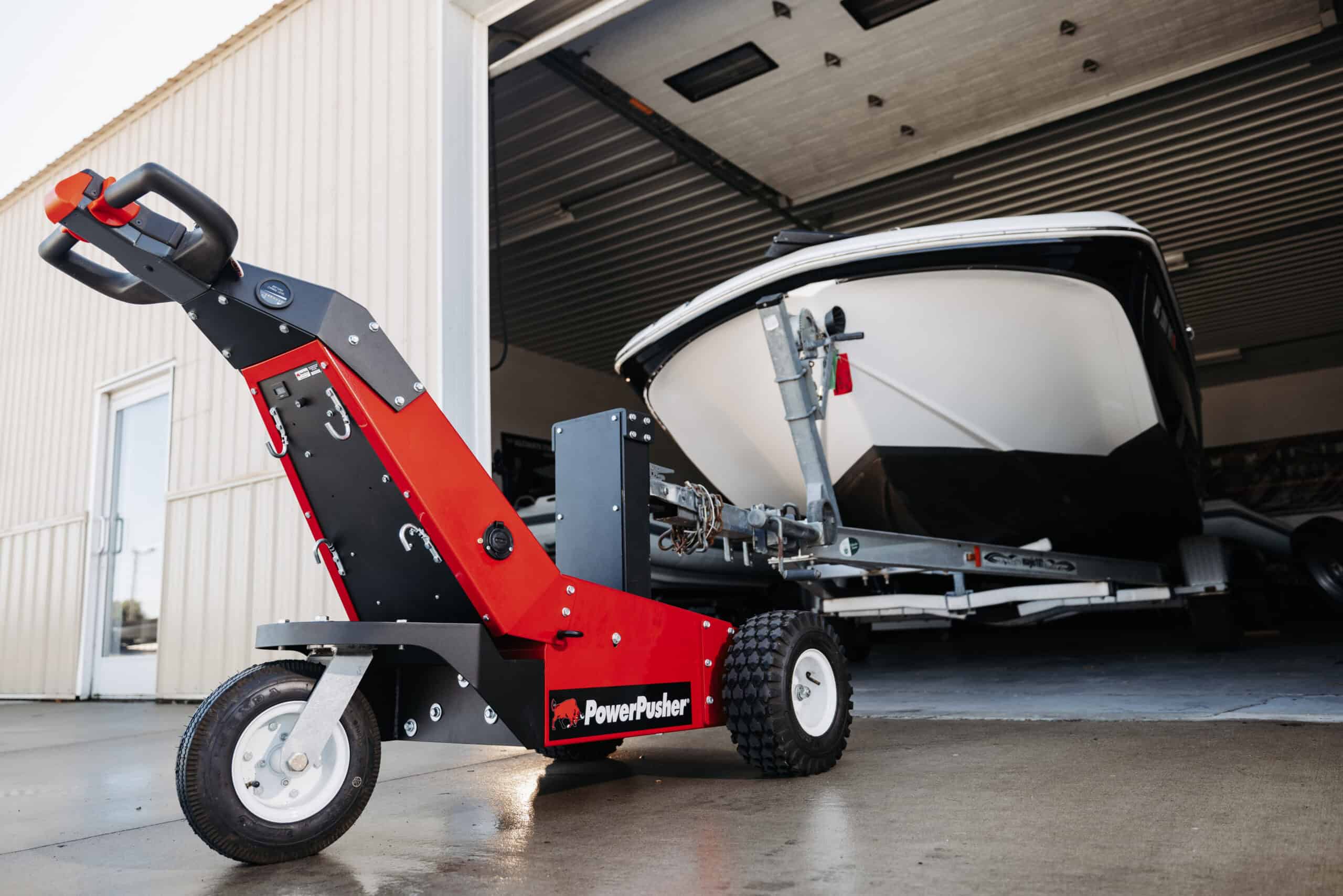

The E-750 Electric Trailer Mover™ is designed to safely move all types of trailers including manufacturing carts, boat trailers, general purpose trailers, livestock trailers, horse trailers and more. Built for commercial grade use, it will also transport all types of ground support equipment including engines, generators, small aircraft, wing stands, tool-boxes, stairs and more. This powerful electric trailer mover delivers 7,500 pound push/pull capacity on tires and casters and 15,000 pound push/pull capacity on rails. Using the E-750 Electric Trailer Mover™ allows a single operator to do the work of 3-4 people, therefore increasing productivity and reducing the risk of injury. Because the trailer mover is electric, it is quiet with zero emissions making it great for indoor or outdoor use.

e 750 trailer mover parts and features for material handling — E-750 Trailer Mover Features and Parts

Features and Benefits

This electric trailer mover is powered with a 24-volt DC, 1200 watt motor for 7,500 lb. push/pull capacity on tires or casters and 15,000 lb. push/pull capacity on rails

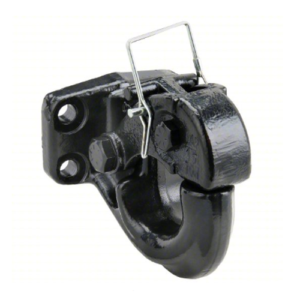

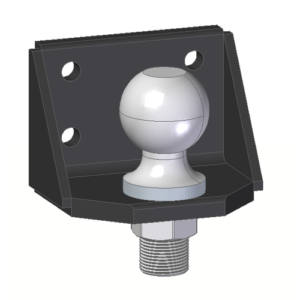

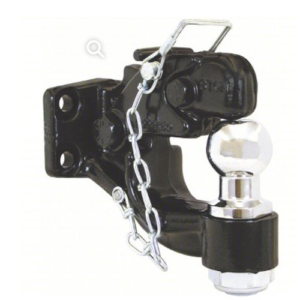

Configurable with ball hitch, pintle hook, combo hitch and tongue and pin receiver
The electric motor is quiet with zero emissions, great for indoor or outdoor use
1,000 lb. tongue weight

Options

Range-extend battery pack
Configurable with a Ball Hitch, Pintle Hook, Combo Hitch and Tongue & Pin with Hitch Receiver
Motion Beeper
Stainless Steel build
Horn
Custom attachments available

Applications

Product Specification

Model	184-AMT, 184-AMTL

FAQs

Do PowerPushers need unique batteries?

No. PowerPushers use deep-cycle marine batteries, which can also be found in a range of boats and other types of waterborne vehicles.

Do PowerPushers include brakes?

Yes. Our PowerPushers can be easily and quickly brought to a halt thanks to their built-in braking systems.

What are the charging requirements for a PowerPusher?

All PowerPusher products can be charged on a 100-240 Volt AC single-phase 50/60 Hz electrical service. The max amp draw will vary by machine, but no more than 7.5 amps can be drawn at maximum.

What is the average run time of a PowerPusher?

A PowerPusher tends to last around 2-6 miles in-between charges. This will fluctuate depending on the size of the load and the environment it’s being used in.

How long does it take to recharge a PowerPusher?

On average, it takes around 6-8 hours to recharge a PowerPusher’s battery, depending on how much power remains.

How fast can a PowerPusher move?

The speed of each machine depends on the configuration of torque and top speed, which can differ per scenario.

Can I modify my PowerPusher’s speed?

Yes. Its top speed and acceleration rate can be adjusted and will apply regardless of which direction you’re moving in.

Will I need a license to operate a PowerPusher?

PowerPushers do not require a license to operate. In fact, very little training is needed to proficiently use one in general.

Can a PowerPusher lift a load?

The MFC-100 includes a high-powered actuator, which makes lifting loads simple. Our two-wheeled PowerPushers can be modified to incorporate lifting functionality, as well.

Resources

View PDF (E-750-Trailer-Mover-Dimensions-2.pdf)

View PDF (E-750-Trailer-Mover-Dimensions-3.pdf)

Nu-Star E-750 Trailer Mover
