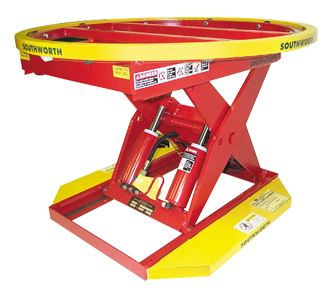

Hydraulic PalletPal – 4,000 lb Capacity

Item ID: PPH4-24 Categories ,

$8,870.40

Overview

Loading and unloading pallets is a time-consuming, back-breaking job that can lead to excess worker fatigue or even injury. The Hydraulic PalletPal makes this work faster, safer, and easier by automatically adjusting to the ideal working height. When loads, weights, pallet sizes, or product dimensions vary greatly, this hydraulic positioner with total operator control is the perfect solution. The PalletPal features a foot control that allows operators to adjust the load to an infinite number of positions, ensuring it's always at the most comfortable height for loading and unloading, dramatically reducing the risk of workplace injuries while boosting productivity.

SKUPPH4-24
MaterialCarbon Steel
Lift MechanismHydraulic
Load Capacity4000 Lbs
Overall Width43 5/8 Inches
Overall Length43 5/8 Inches
Raised Height32-3/4 Inches
Lowered Height8-3/4 Inches
Turntable Diameter43-5/8 Inches
Power115/1/60
Ship Weight760 lbs
ResourcesPalletPal Brochure

*This is not a lifting capacity. This hydraulic actuated machine is dedicated to pallet positioning applications. The capacity denotes the maximum weight of the fully loaded pallet that is appropriate for this model.

Features & Benefits

The Hydraulic PalletPal operates on standard 115-volt power, providing reliable performance in various industrial environments. Designed to handle pallet loads weighing up to 2,000 or 4,000 lbs (depending on model), the system features a manual turntable that allows quick and easy rotation of the load so operators are always working on the near side, eliminating reaching, stretching, and walking around pallets.

Built-in fork pockets provide both ease of portability and additional stability. The low-friction bearing-supported turntable is specifically designed for loads that vary in weight, size, or product dimensions, allowing workers to position pallets at a comfortable working height virtually eliminating bending, reaching, and stretching when building or breaking down pallet loads.

By spinning the load 360°, operators are always working on the near side. This eliminates the need for walking around pallets while carrying heavy loads and removes the potential for trip and fall accidents. The hydraulic design is ideal for environments where loads vary widely and are changed frequently.

Applications

The Hydraulic PalletPal is ideal for a variety of industrial settings where ergonomics and worker safety are priorities:

  • Manufacturing facilities
  • Warehousing and distribution centers
  • Shipping and receiving areas
  • Production lines
  • Food processing plants
  • Pharmaceutical operations
  • Assembly workstations
  • Retail back-of-house operations

Key Features

  • Superior Load Capacity: Handles various pallet sizes and weights efficiently up to 2,000 or 4,000 lbs
  • Precise Height Adjustment: Operator-controlled foot pedal for exact positioning
  • Premium Turntable: Low-friction bearing-supported design for smooth 360° rotation
  • Enhanced Mobility: Integrated fork pockets for easy relocation
  • Reliable Power Source: Hydraulic units operate on standard 115-volt power
  • Maximum Stability: Wide base design ensures stability during loading and unloading operations

Selection Assistance

A small investment in the Hydraulic PalletPal pays dividends by increasing productivity, reducing employee lost time, and creating a happier, more motivated workforce. If you have questions about which PalletPal model best suits your operation, our product specialists can help you determine the right solution for your specific application.

Fill out the form below and our product specialist will be in touch shortly to discuss how the Hydraulic PalletPal can improve your operation's efficiency and ergonomics.

Product Specification

Weight Capacity

Platform Size

43-5/8 in.

Lowered Height

9-3/16 in.

Product Length

9-3/16 in.

Product Width

Product Height
