Overview

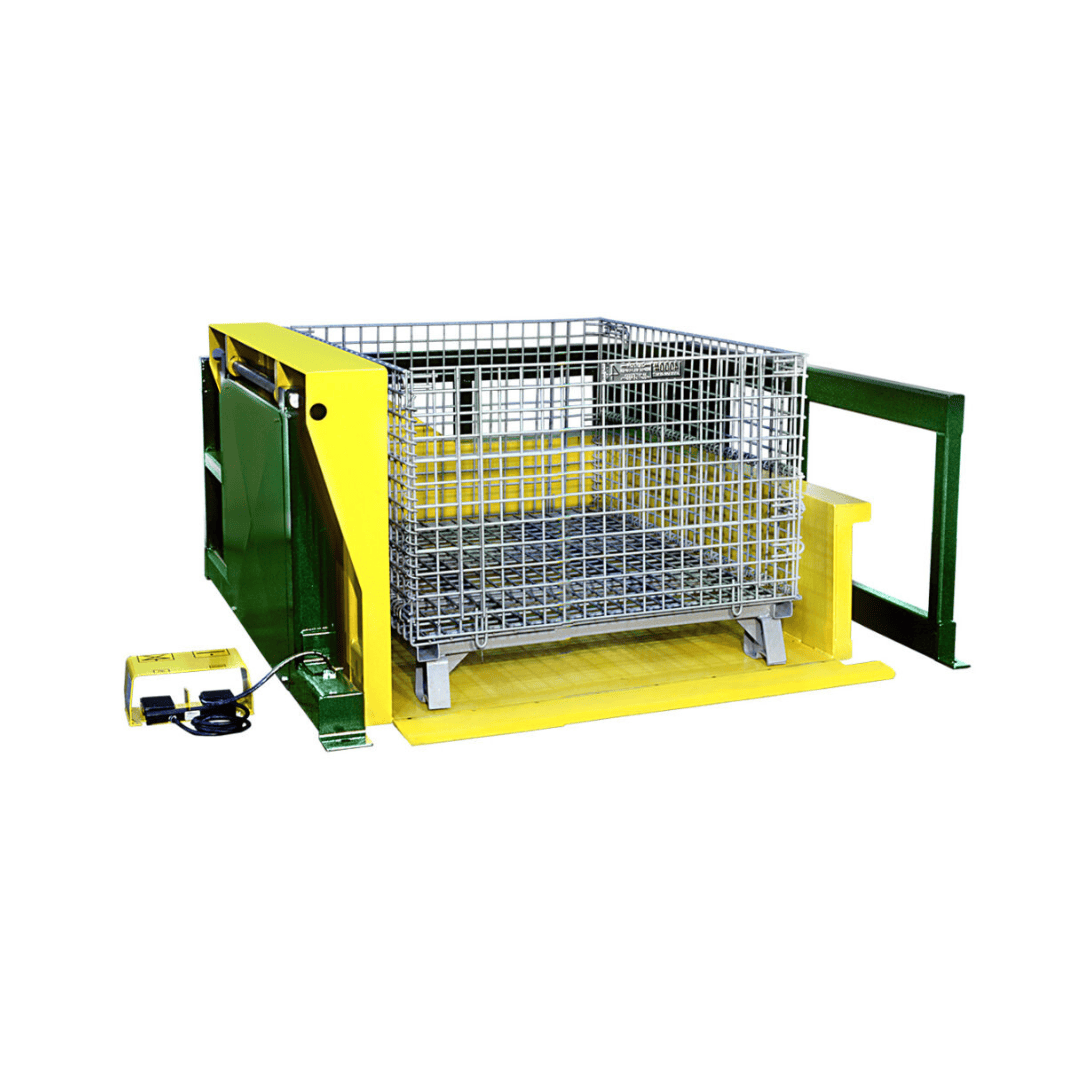

Deep totes, pans, and bins slow picks and add strain. The ZTU2‑85PAN solves this by tilting the entire container toward the operator so parts sit in a safer reach zone. This Pallet Tilter improves access, reduces bending, and helps save time on every cycle. As a portable tilt solution, it moves quickly between stations with standard shop equipment, and a single operator can position, tilt, and run the unit without extra help. For fast material handling areas, that simplicity keeps work flowing.
Features & Benefits
The PAN version uses a solid tilt table pan deck that supports totes, steel pans, bulk bins, and small containers without pallet openings. The lift tilts up to 85°, giving clear sightlines and reach into deep containers. Acting as a Tilter machine, Box tilter, container tilter, and tote tilter in one platform, it cuts steps around the load and limits awkward reaches that slow picking and sorting.
A smooth hydraulic circuit functions like a controlled tilting jack. Motion is stable across the range, and the operator can stop at any angle that fits the task. Choose manual‑move or DC power tilt. The dc power package adds push‑button control for quick, repeatable cycles in high‑volume zones. For teams running multi‑shift lines, those consistent moves help save time and reduce error.
The heavy duty frame, reinforced arms, and wide stance keep containers stable as the angle increases. A grippy pan surface helps hold bins in place while you work. Fork pockets enable fast relocation, so one tilter can support multiple cells in the same shift without slowing production.
Ergonomics improve right away. Tilting brings parts into the primary reach zone, improving posture and visibility. Operators move less, pick faster, and sustain a steady pace across longer runs.
| Dimensions (in.) | Usable Pan Size (in.) | Lowest Height (in.) | Tilt Capacity (lbs.) | Tilt Angle |
|---|---|---|---|---|
| 62.5 x 65.25 | 50 x 50 | 3/8 | 2000 | 85 Degrees |
Applications
Use the ZTU2‑85PAN wherever better access to containerized goods is essential:
- Assembly lines pulling small parts from pans and totes
- Manufacturing cells retrieving components from deep containers
- Warehouses unloading mixed items from bulk bins
- Distribution centers staging goods for packing and shipping
- Maintenance areas tilting heavy or awkward items for service
By shortening reaches and reducing extra steps, this Pallet Tilter supports higher throughput and more consistent handling quality.
Maintenance
Daily care is simple. Inspect hydraulic hoses and fittings. Verify smooth, controlled travel through the full tilt range. Keep the pan deck and tilt table surface clean to maintain traction. Lubricate pivot points per schedule to preserve smooth motion. The heavy duty build is designed for high‑cycle environments, so basic upkeep keeps downtime low.
Selection Assistance
Match the Pallet Tilter to your loads and process. Consider container dimensions, weight, required tilt angle, and cycle frequency. If teams often reach into deep pans, totes, or bulk containers—or if several cells share tilting needs—the ZTU2‑85PAN portable tilt model offers a practical balance of mobility, control, and ergonomics. Choose dc power for frequent push‑button cycles, or manual‑move for lighter throughput. Barron Equipment can help size capacity, set deck specs, and configure controls so your Tilter machine aligns with safety goals, space limits, and output targets.
