The Rytec PredaDoor® NXT® is a high-speed fabric roll-up door designed for warehouses, cooler transitions, cold-storage areas, and food-processing facilities. Opening at speeds of up to 50 inches per second, it combines a durable Rylon® panel with safety sensors, perimeter sealing, and impact-recovery features for frequently used openings.
Its Break-Away™ bottom bar and NXT Quick-Set™ system allow the curtain to be reset into the side guides without tools following qualifying impacts, helping facilities reduce interruptions caused by forklift contact.
Built for High-Cycle Industrial Openings
Busy industrial facilities need doors that can support frequent forklift, pallet-jack, and cart traffic without creating unnecessary delays. The PredaDoor NXT opens quickly to help vehicles and materials move efficiently through the facility, then closes to restore separation between adjoining spaces.
Its fast operation can help:
- Improve traffic flow through high-use openings
- Limit drafts between work areas
- Reduce exposure at cooler and cold-storage transitions
- Separate manufacturing and warehouse zones
- Support consistent production and distribution workflows
- Minimize the time conditioned spaces remain open
The PredaDoor NXT can be configured for interior or exterior openings. The correct configuration depends on the opening size, traffic volume, environmental conditions, wind exposure, pressure differences, and facility requirements.
Durable Rylon® Curtain Construction

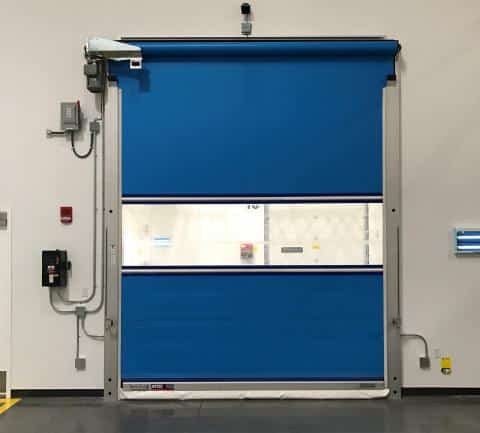

The standard PredaDoor NXT curtain is made with durable 2-ply Rylon® panel material. An optional 3-ply USDA/FDA vinyl panel is available for food-processing applications. A full-width clear PVC vision panel supports visibility through the doorway, while structural wind ribs help the curtain withstand pressure differences between adjoining spaces.
These curtain options make the door suitable for applications such as:
- Warehouses and distribution centers
- Manufacturing and production facilities
- Coolers and refrigerated storage areas
- Food-processing operations
- Interior environmental separation
- Selected exterior industrial openings
Curtain material should be selected according to sanitation requirements, temperature conditions, pressure differences, traffic patterns, and the location of the opening.
Break-Away™ Impact Protection
Industrial doors are often exposed to accidental contact from forklifts, pallet jacks, carts, and transported materials. Conventional door damage can interrupt an opening and require maintenance before operations can resume.
The PredaDoor NXT features an extruded aluminum Break-Away™ bottom bar designed to release following an impact. This helps reduce the force transferred through the door assembly and can minimize damage to the curtain, bottom bar, and side guides.
The impact-recovery design helps facilities reduce disruptions at frequently used openings while supporting long-term door performance.
NXT Quick-Set™ Tool-Less Reset
After an impact displaces the curtain, the NXT Quick-Set™ system allows the curtain to be returned to the side guides without tools. This can help authorized facility personnel restore the door to operation more efficiently than a traditional door repair.
The Quick-Set system is particularly valuable in high-traffic facilities where an unavailable doorway could delay production, interrupt shipping, or affect environmental separation.
Facility personnel should receive appropriate instruction on normal door operation and the proper impact-reset process during installation.
Integrated Safety Technology
The PredaDoor NXT combines multiple safety features designed to monitor the opening and respond to obstructions.
Dual Thru-Beam Photo Eyes
Dual thru-beam photo eyes monitor the doorway for obstructions. When an obstruction is detected, the system can prevent or interrupt the door’s closing movement.
Pneumatic Reversing Edge
A sensitivity-adjustable pneumatic reversing edge runs along the bottom of the curtain. If the closing edge contacts an obstruction, the door is designed to reverse direction.
Ry-Wi® Wireless System
The Ry-Wi® system provides two-way wireless communication between the pneumatic reversing edge and the wall-mounted controller. This design eliminates the traditional coiled communication cord between the moving bottom bar and the controller.
Optional Pathwatch® Safety Lights
Optional Pathwatch® threshold LED lights provide an additional visual cue near the doorway. This option may be beneficial for facilities with frequent forklift traffic, intersecting travel paths, or limited visibility around the opening.
Safety and activation devices should be selected according to traffic type, approach direction, vehicle speed, stopping distance, sight lines, and the facility’s operational risk assessment.
System 4+™ Digital Controller
The PredaDoor NXT operates through Rytec’s System 4+™ digital controller. The controller works with the door’s drive, activation, and safety systems to support fast operation and application-specific programming.
Professional configuration helps ensure that activation devices, closing delays, safety inputs, and operating settings match the facility’s traffic patterns and environmental requirements.
Perimeter Sealing
Full-height side-column brush seals and an edge-to-edge top brush seal help limit gaps around the closed curtain.
Effective perimeter sealing can support:
- Draft reduction
- Temperature-control efforts
- Separation between work zones
- Cooler and cold-storage transitions
- Dust and debris management
- More consistent interior conditions
Actual environmental performance will depend on the opening size, cycle frequency, temperature differential, pressure conditions, installation quality, and overall building envelope.
PredaDoor NXT Specifications
| Feature | PredaDoor NXT Configuration |
|---|---|
| Door Type | High-speed fabric roll-up door |
| Opening Speed | Up to 50 inches per second |
| Standard Curtain | 2-ply Rylon® panel |
| Optional Curtain | 3-ply USDA/FDA vinyl |
| Visibility | Full-width clear PVC vision panel |
| Impact Protection | Break-Away™ bottom bar |
| Curtain Reset | NXT Quick-Set™ tool-less reset |
| Safety Sensors | Dual thru-beam photo eyes |
| Reversing System | Sensitivity-adjustable pneumatic reversing edge |
| Communication | Ry-Wi® wireless system |
| Controller | System 4+™ digital controller |
| Perimeter Sealing | Full-height side-column and edge-to-edge top brush seals |
| Optional Safety Feature | Pathwatch® threshold LED lights |
| Typical Applications | Warehouses, manufacturing facilities, coolers, cold storage, and food processing |
Professional Installation and Service
Proper installation affects alignment, sealing, safety-device performance, operating speed, and long-term reliability. Before installation, the opening should be evaluated for dimensions, mounting surfaces, electrical requirements, headroom, side clearance, environmental conditions, and traffic patterns.
Professional installation should include opening verification, component alignment, safety-device setup, controller configuration, activation testing, and instruction for normal operation and impact recovery.
Barron Equipment provides commercial door selection, installation, preventive maintenance, and service support throughout all of Iowa and Illinois, plus parts of Wisconsin, Minnesota, Missouri, and Nebraska.
Is the PredaDoor NXT Right for Your Facility?
The PredaDoor NXT may be a good fit if your facility needs:
- Fast operation for high-cycle traffic
- Environmental separation between work areas
- Reduced exposure at refrigerated openings
- Impact protection for forklift environments
- Tool-less curtain reset after accidental contact
- Integrated sensor and reversing technology
- A compact roll-up design for busy industrial openings
Traffic flow, environmental conditions, sanitation requirements, opening dimensions, activation methods, and expected cycle volume should all be evaluated before choosing a final door configuration.
Request a PredaDoor NXT Quote
Barron Equipment can evaluate your opening and help determine whether the Rytec PredaDoor NXT is the right high-speed door for your warehouse, manufacturing plant, cold-storage operation, or food-processing facility.
