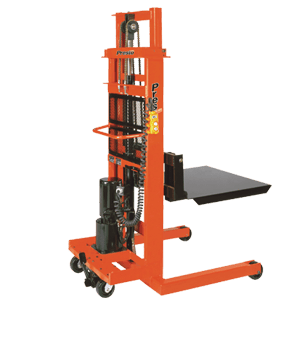

These 1,000 lb. capacity stackers are powered by standard 115V single phase power and are highly reliable. They are available in portable or stationary configurations with fixed or telescoping masts and lifting heights up to 130".
Standard units are equipped with 30" long adjustable solid steel forks. An optional 32" x 30" slip-on platform can be added. Custom designed platforms are also available.
Lift and lowering control is via standard remote control with coil cord that extends a full 20 feet.
Product Spotlight
Options
Models
- 30" long adjustable solid steel forks 1" thick x 3" wide
- Lifting speed 4" per second
- 1 HP 115/1/60 motor - other motors available
- 12" high fork backs
- Leaf-type chain with 8250 lb yield point
- 1500 lb and 2000 lb capacities available
- Wheels & Casters
- Remote Controls
- Fifth Wheel & Trailer
- Reversed/Inverted Forks
- Slip-On Platforms
- Modified Platforms
- Extended Backplate
- Boom With Hook
- Ram
- Drum Grabber DG-30
- Roller Bed
- P-6 Die Puller
- Fire Resistant Hydraulic Fluid
- Height
- Air Power
| Model Number | Load Capacity | Load Center | Raised Height | Low Height | Dimensions H x W x L | Base Legs I.D./O.D. | Wheel Dia. Front/Rear | Shipping Weight |
|---|---|---|---|---|---|---|---|---|
| EPF Series - Portable - 30" Forks | ||||||||
| EPF752 | 1000 lbs | 18" | 52" | 5 ¼" | 66 x 31 x 49" | 24" / 30" | 5" / 4" | 490 lbs |
| EPF766 | 1000 lbs | 18" | 66" | 5 ¼" | 80 x 31 x 49" | 24" / 30" | 5" / 4" | 500 lbs |
| EPF778 | 1000 lbs | 18" | 78" | 5 ¼" | 92 x 31 x 49" | 24" / 30" | 5" / 4" | 530 lbs |
| ESF Series - Stationary - 30" Forks | ||||||||
| ESF750 | 1000 lbs | 18" | 50" | 3 ¼" | 64 x 30 x 49" | 24" / 30" | N/A | 480 lbs |
| ESF764 | 1000 lbs | 18" | 64" | 3 ¼" | 78 x 30 x 49" | 24" / 30" | N/A | 570 lbs |
| ESF776 | 1000 lbs | 18" | 76" | 3 ¼" | 90 x 30 x 49" | 24" / 30" | N/A | 590 lbs |
| ESF782 | 1000 lbs | 18" | 82" | 3 ¼" | 96 x 30 x 49" | 24" / 30" | N/A | 610 lbs |
| ESF788 | 1000 lbs | 18" | 88" | 3 ¼" | 105 x 30 x 49" | 24" / 30" | N/A | 710 lbs |
| ESF794 | 1000 lbs | 18" | 94" | 3 ¼" | 108 x 30 x 49" | 24" / 30" | N/A | 730 lbs |
| ESF7106 | 1000 lbs | 18" | 106" | 3 ¼" | 120 x 30 x 49" | 34" / 40" | N/A | 760 lbs |
| ESF7118 | 1000 lbs | 18" | 118" | 3 ¼" | 132 x 30 x 49" | 34" / 40" | N/A | 900 lbs |
| EPFT Series - Portable - 30" Forks | ||||||||
| EPFT796 | 1000 lbs | 18" | 94" | 5 ¼" | 112/67 x 41 x 52" | 34" / 40" | 5" / 5" | 800 lbs |
| EPFT7110 | 1000 lbs | 18" | 110" | 5 ¼" | 133/80 x 41 x 52" | 34" / 40" | 5" / 5" | 900 lbs |
| EPFT7130 | 1000 lbs | 18" | 130" | 5 ¼" | 155/92 x 40 x 52" | 34" / 40" | 5" / 5" | 980 lbs |
