Overview

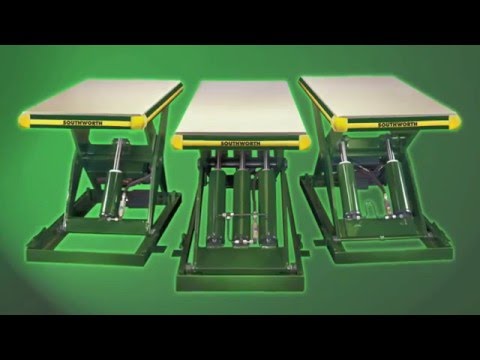

The Southworth LS Series Hydraulic Lift Table — also known as the Backsaver Hydraulic — is the most popular and widely configured hydraulic lift table in Southworth’s product line. With 24 standard models covering capacities from 2,000 to 6,000 lbs, three travel ranges of 24, 36, and 48 inches, and platforms up to 72 x 96 inches, the LS Series provides a standard‑duty hydraulic lifting table for nearly any industrial application involving machine feeding, work positioning, assembly, order picking, and pallet loading.
All LS Series models share a 7.25‑inch collapsed height. Standard models use 115V single‑phase power with a 1 HP motor. Larger configurations (LS6‑36W, LS2‑48W through LS6‑48W) step up to 460V three‑phase power with a 3 HP motor for faster lift cycles under heavier loads. An extensive range of customization options allows the LS Series to be configured for conveyor integration, pit mounting, portability, and specialized load handling.
Features and Benefits
Southworth’s low‑pressure hydraulic system delivers fast raising and lowering with fully adjustable down speed for precise load control. Heavy duty torque tubes minimize platform deflection under load. Full‑width, straight‑through axles provide increased stability throughout the travel range. Lubricated‑for‑life pins, rollers, and bushings eliminate routine greasing and reduce long‑term maintenance cost across the entire scissor mechanism.
Heavy duty wire‑braided hoses provide maximum burst strength. A transparent return hydraulic line helps prevent fluid spillage by providing visible fluid monitoring. Built‑in safety maintenance props and pressure relief valves are standard on every model. The bolt‑on power unit keeps the installation clean and accessible for service.
Applications
The LS Series serves the widest range of standard‑duty hydraulic lift table applications in the Southworth lineup. Common uses include machine feeding where parts and raw materials must be raised to infeed height, work positioning where operators need ergonomic access to components at adjustable heights, assembly lines where materials are presented at the optimal height for each task, order picking where loads are raised for ergonomic access to cartons and products, pallet loading and unloading where the lift table brings materials to the most comfortable height for stacking, and any facility that needs a reliable, customizable hydraulic lifting table in the 2,000 to 6,000 lb capacity range.
Selection Assistance
Choosing the right LS Series model depends on your required capacity, travel range, and platform width. Standard‑width models (LS_‑24, LS_‑36, LS_‑48) use narrower platforms for tighter floor plans. Wide models (LSW suffix) provide larger platforms for oversized loads. The 24‑inch travel models are the most compact. The 36‑inch travel models serve most general work positioning needs. The 48‑inch travel models provide the highest raised height at 55.25 inches for applications requiring maximum vertical reach. For capacities under 2,000 lbs, the Backsaver Lite is more cost‑effective. For capacities above 6,000 lbs, the DL Series Heavy Duty and L Series CAM handle heavier loads. Contact our team to discuss your application.
