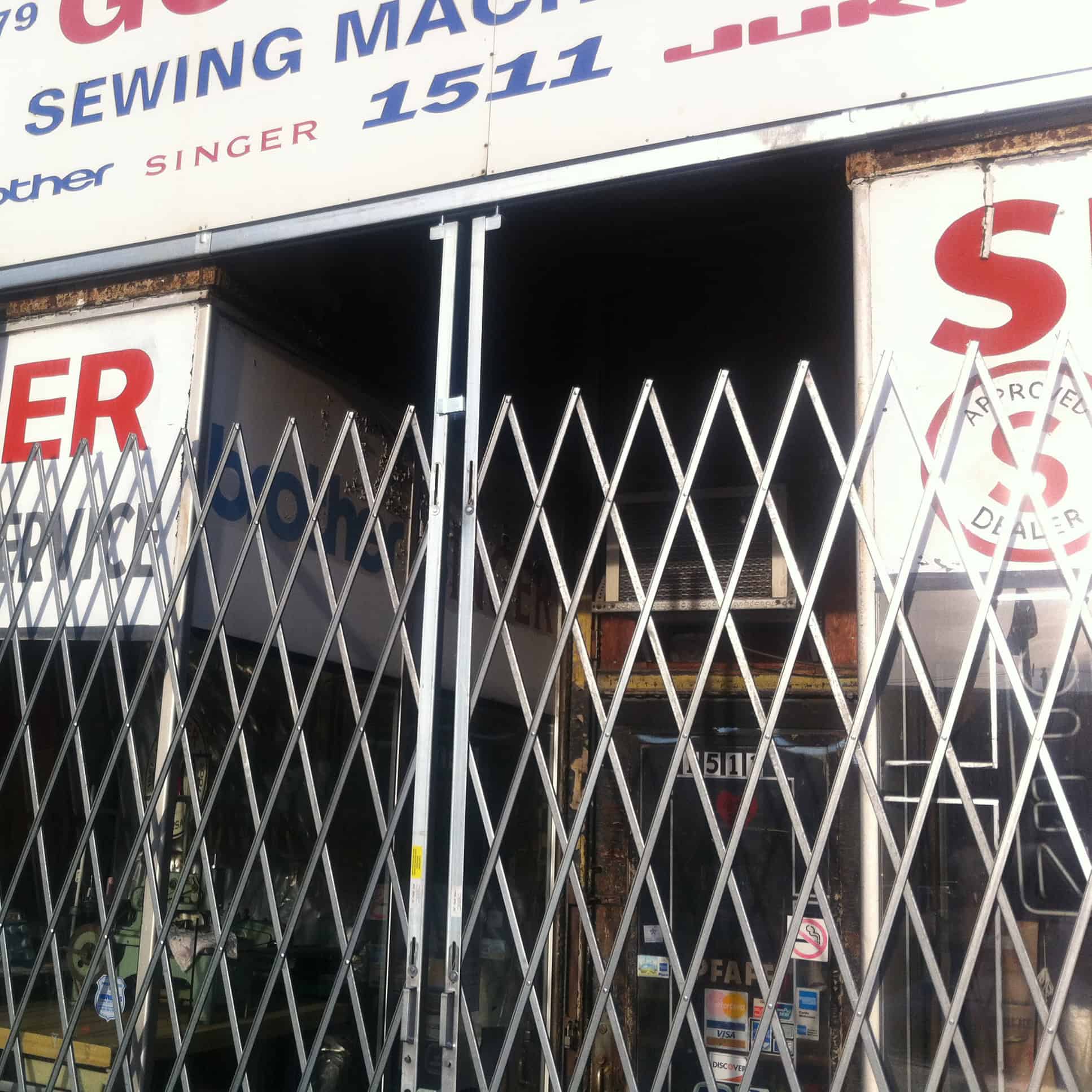

An economical solution to after hours security, Top Track Storefront Security Gates (also commonly referred to as Lazy Tong and Scissor Gates) provide stress-free storefront protection from smash and grabs and casual break-ins.
IEP’s Top Track Storefront Security Gates allow the gate to be hung much like a curtain across any span — so they always remain within the track. This type of track gate is recommended for storefront openings over 20 feet wide and can be used to secure openings spanning several hundred feet.
A top track gate can be used with optional “L” brackets as well as utilize optional “pin” rails — and set into the floor like a standard Dock Door Gate. If the pin rails are not used, the gate is essentially suspended from the top rail. For all Top Track Storefront Security Gate configurations, there is a loss in height of about 6” as the gate is expanded. There will always be a 6” gap between the top of the gate and below the top track.
WHICH DO YOU NEED: TOP TRACK VERSUS BOTTOM GUIDE?
SPECIFICATIONS
| Weight | Varies By Size |
| Dimensions | Varies By Size |
| Channel | 3/8″ x 3/4″, 14 Gauge Galvanized U Channel |
| Frame | 1-1/2″ x 1-1/2″, 12 Gauge Angle Iron, Zinc Plated |
| Rivets | 3/16″ x 1/2″ Steel, Zinc Plated |
| Trolley | 2″ Dia Steel Wheels, Zinc Plated |
| Top Track | 2″ x 2 3/8 |
| Lock Systems | 3/16″ Hasp For Padlock |
| Standard Mounting Bkt | 2-1/2″ x 7″ Steel “L” Bracket, Zinc Plated |
