Panel Carts & Sheet Material Movers

Features and Benefits

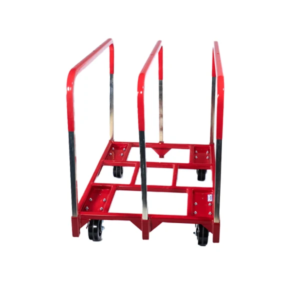

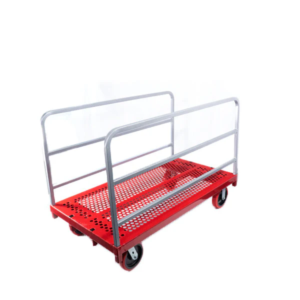

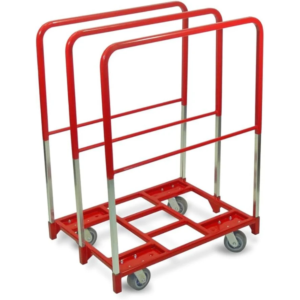

The defining advantage of a purpose-built panel dolly over a generic flatbed cart is the upright support system. Uprights hold sheet goods in a vertical position during transport, preventing the bending, flexing, and surface damage that occurs when materials are stacked flat or carried by hand. Standard 26-inch uprights work well for most sheet stock and office panels. Extra-tall 45-inch uprights stabilize full-height partitions, door slabs, and oversized vertical loads that need more support at the top.

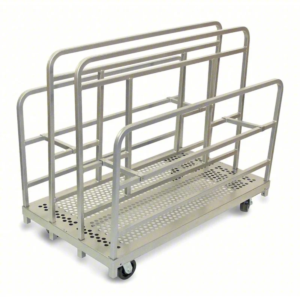

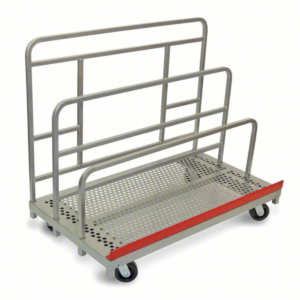

Waterfall panel movers take upright design a step further with staggered-height posts and lip attachments that separate individual sheets within the load. This allows workers to load and unload specific panels without disturbing the rest of the stack — a significant time saver in glass shops, millwork operations, and construction staging areas that handle mixed-size sheet inventories throughout the day.

Removable uprights on many models add flexibility. Use the uprights for panels and sheet goods, then remove them when the platform needs to carry other oversized items like mattresses, banquet tables, or bulk materials. This dual-purpose capability means one cart handles multiple material types instead of requiring separate equipment for each.

Caster selection is built into the product line, not treated as an afterthought. Standard phenolic casters are the economical choice for back-of-house concrete and warehouse floors. Quiet polyurethane casters are non-marking and significantly quieter — the right specification for occupied offices, schools, hospitals, and finished floors. Larger 8-inch casters bridge expansion joints and door thresholds that can stop a 5-inch wheel dead under a heavy load. Fixed-and-swivel configurations track straighter over long distances, while all-swivel setups provide tighter turning in confined spaces.

Applications

Construction and renovation projects rely on panel carts for staging and distributing drywall, plywood, MDF, and other sheet goods across job sites. A heavy duty panel dolly rated to 3,200 lbs can carry roughly 30 sheets of 5/8-inch drywall in a single load, reducing trips and speeding up material distribution to framing crews.

Office facilities and corporate campuses use panel movers to reconfigure cubicle layouts, relocate modular wall partitions, and move room dividers during tenant improvements. Non-marring casters and vinyl-coated contact surfaces protect carpet, tile, and the panels themselves from scratches during transport.

Glass shops, millwork operations, and architectural fabricators depend on waterfall panel movers to organize and transport mixed-size sheet inventories. The staggered upright design keeps individual sheets separated and accessible — critical when handling expensive glass, acrylic, or finished panels that cannot tolerate contact damage.

Schools, churches, and event venues use panel carts for moving room dividers, folding wall partitions, and banquet tables between storage and setup locations. Narrow panel movers fit through standard doorways and elevators in older buildings where wider carts cannot pass.

Warehouses and distribution centers use heavy duty sheet trucks and platform-style panel movers for bulk material handling, WIP staging, and receiving operations where large flat items need to move from dock to storage or production floor.

Selection Assistance

Choosing the right panel cart starts with three factors: the total weight of your heaviest realistic load, the height of the tallest material you transport, and the narrowest doorway or corridor on the transport route.

For weight, standard panel movers handle up to 2,400 lbs. If your loads regularly include dense sheet goods like plywood, MDF, glass, or stone, step up to the heavy duty 3,200 lb models. For upright height, standard 26-inch uprights cover most sheet stock. Extra-tall 45-inch uprights are the better choice for full-height partitions, door slabs, and panels taller than 6 feet. For route clearance, narrow panel movers are built specifically for standard doorways and elevators. Standard-width models fit through double doors comfortably — measure your tightest opening before you order.

For floor type, choose phenolic casters for unfinished concrete and warehouse environments, and quiet polyurethane for offices, schools, healthcare facilities, and any occupied space where noise and floor marking are concerns. For routes that cross thresholds and expansion joints, 8-inch casters provide a smoother ride under heavy loads.

Barron Equipment’s material handling team can help you match the right panel cart to your materials, facility layout, and transport routes. Fill out the form below or contact us directly for expert guidance.
