Overview

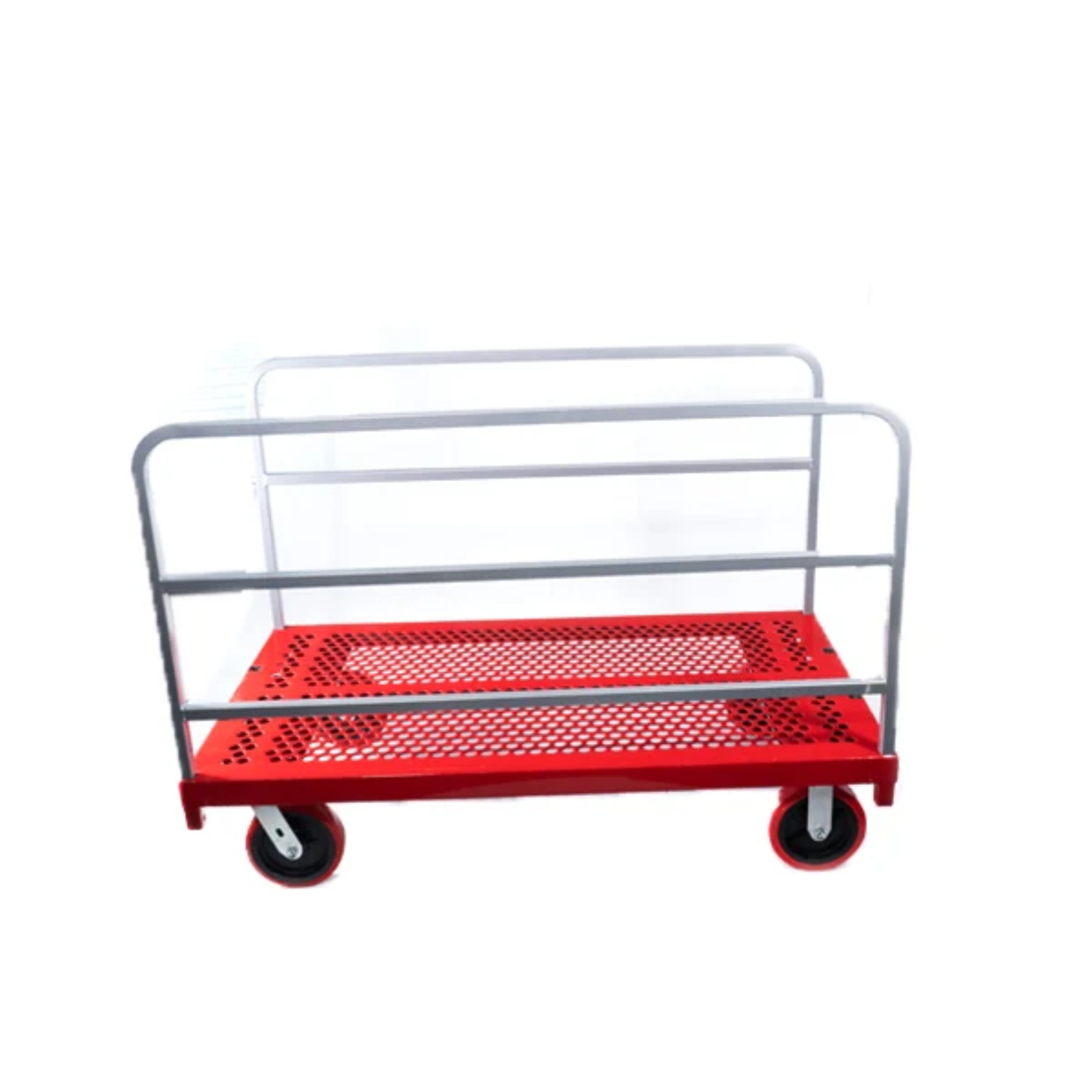

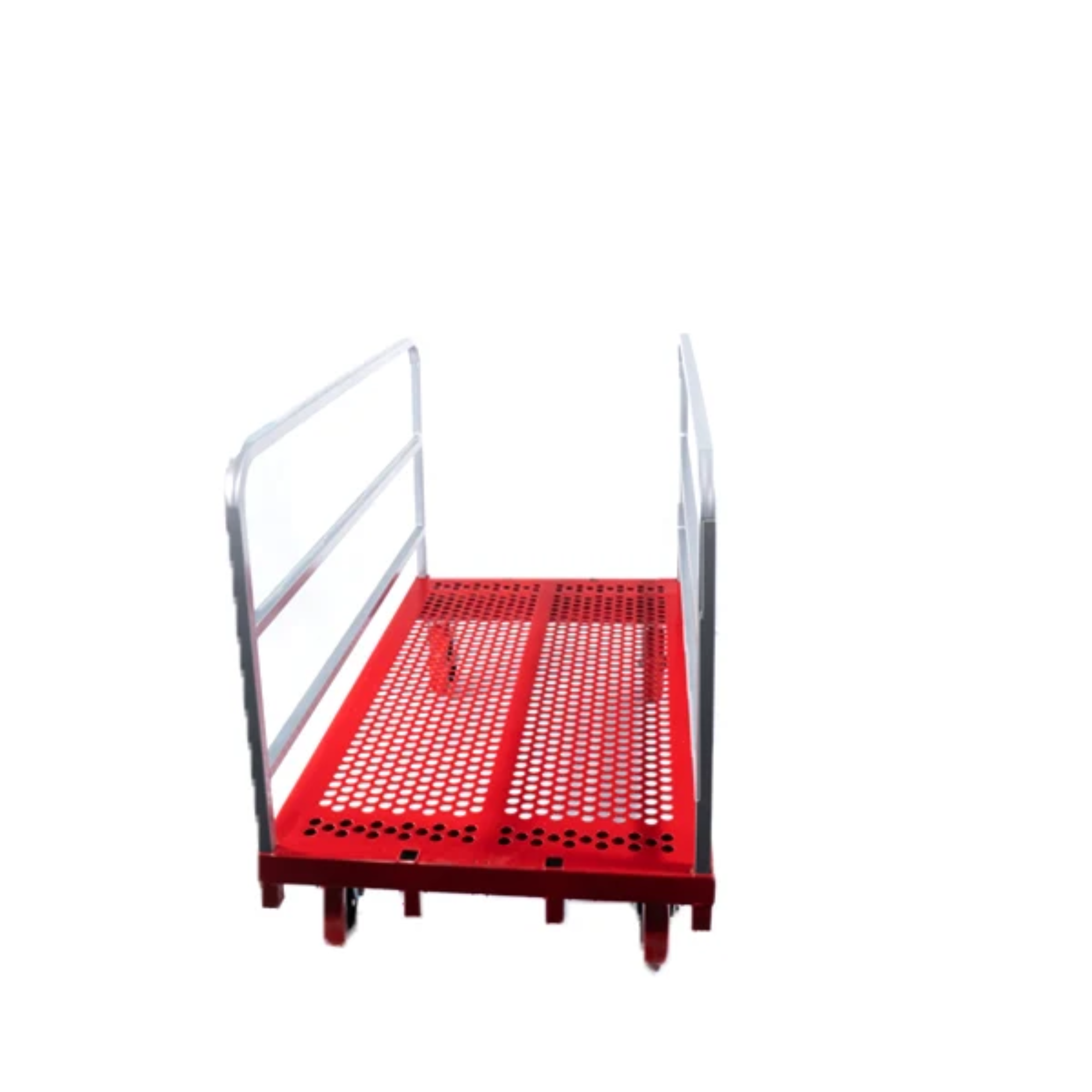

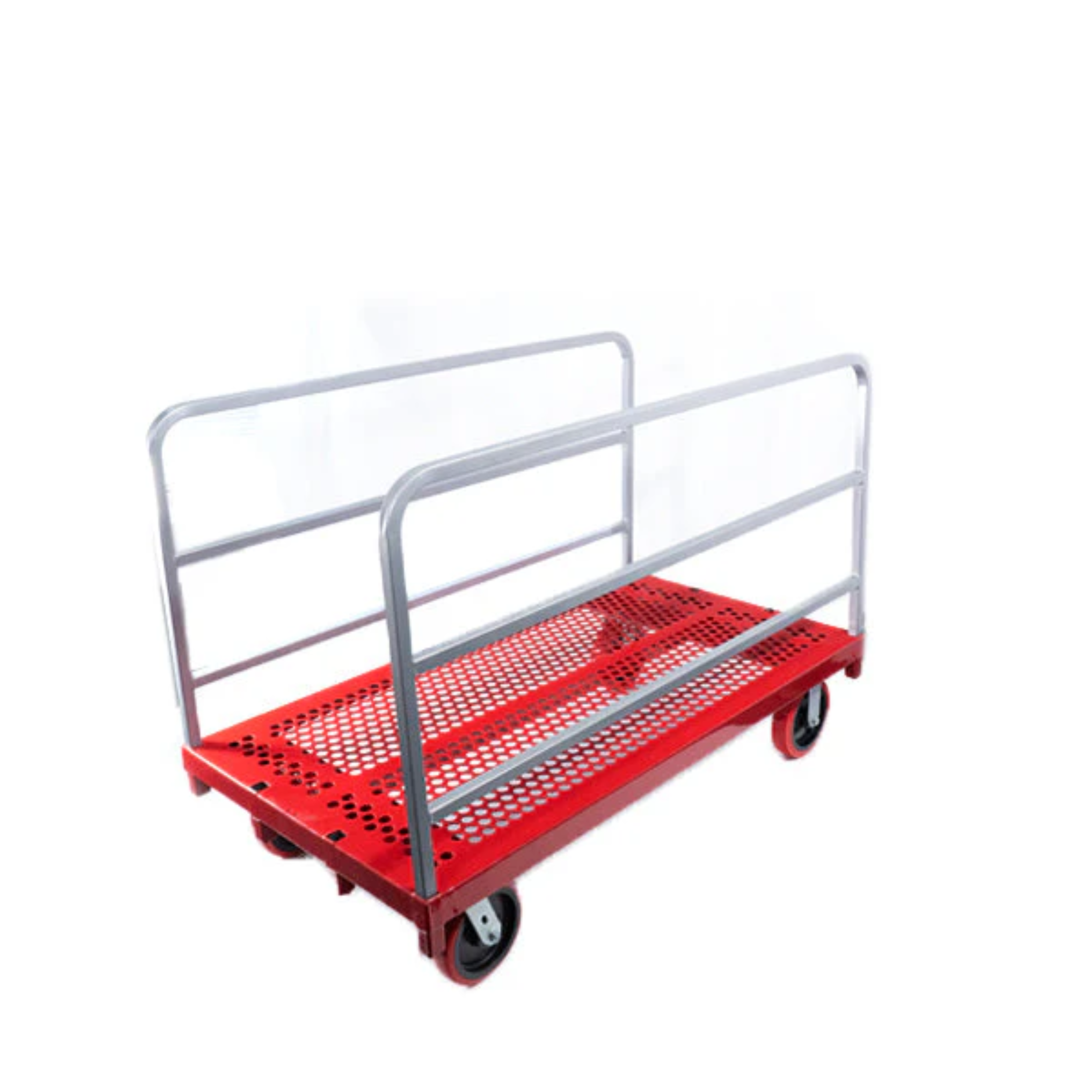

Standard panel movers handle most office and facility loads, but dense construction materials, heavy sheet goods, and industrial-grade panel stacks demand a stronger platform. This heavy duty panel dolly is built for those demanding environments. With a 3,200 lb load capacity, a 12-gauge robotically welded steel base reinforced with 12-gauge steel ribs, and a 30″ x 54″ platform, it delivers the structural rigidity and carrying surface needed for the heaviest drywall, plywood, MDF, glass, and building material loads.
Two removable uprights with cross-braces keep sheet materials upright and stable during transport, while 8″ quiet poly casters provide smooth, low-noise rolling across warehouse floors, job sites, and finished commercial spaces. Every unit is manufactured by Raymond Products in Minneapolis, Minnesota with a lifetime warranty against manufacturing defects.
Features and Benefits
The 12-gauge steel platform base — reinforced with 12-gauge steel ribs — is the heaviest frame construction in the Raymond panel cart lineup. This rib-reinforced design distributes heavy loads evenly across the platform and prevents flexing under maximum capacity, which is critical when transporting dense materials like stacked drywall, plywood bundles, and glass sheets that concentrate weight in a narrow footprint.
The 30″ x 54″ platform provides significantly more carrying surface than the standard 27½” x 36″ panel movers. This larger footprint accommodates wider sheet goods, longer panels, and bulkier loads without overhanging the platform edges. Two removable uprights — equipped with cross-braces — provide maximum structural support for upright loads. The cross-brace design prevents the uprights from flexing under side pressure and keeps small parcels or mixed loads contained during transport. When the uprights are not needed, they lift out for a flat, open platform.
The entire platform surface is coated with anti-skid polyvinyl, which grips the load to prevent shifting and cushions materials against scratches and surface damage. The powder-coated steel base resists corrosion and withstands the daily wear of warehouse, construction, and industrial environments. The 8″ quiet poly casters roll smoothly over expansion joints, thresholds, debris, and uneven surfaces while reducing noise — an important consideration when this heavy duty panel dolly is used in occupied office buildings, hotels, or healthcare facilities.
Available Configurations
- Model 3901 – 2 Uprights, 8″ Quiet Poly, 2 Fixed / 2 Swivel — The standard configuration with straight-line tracking for long transport runs. Shipping weight: 123 lbs.
- Model 3908 – 2 Uprights, 8″ Quiet Poly, All Swivel — Maximum maneuverability for tight turns, narrow aisles, and crowded work areas. Shipping weight: 126 lbs.
- Model 3911 – Push Handle, 8″ Quiet Poly, 2 Fixed / 2 Swivel — Push handle configuration for flat loads that do not require uprights.
- Model 3918 – Push Handle, 8″ Quiet Poly, All Swivel — Push handle with all-swivel for maximum steering control.
All configurations share the same 3,200 lb capacity, 12-gauge rib-reinforced platform, and anti-skid polyvinyl coating. Optional brake kits are available for facilities with inclines or where secure positioning during loading is required.
Applications
Construction contractors and trades teams are the primary users of this heavy duty panel dolly. Drywall crews use it to move stacked sheetrock from delivery staging to installation points throughout a building. Millwork shops and glass fabricators transport plywood, MDF, acrylic, and glass sheets between cutting stations, storage racks, and shipping areas. The 3,200 lb capacity and rib-reinforced platform handle the kind of concentrated loads that would flex or damage a lighter-duty panel cart.
Warehouse and distribution teams rely on this panel cart for bulk sheet goods, palletized panel products, and oversized industrial materials. Office renovation crews use it to move large cubicle partition systems, tall room dividers, and heavy modular wall components during commercial build-outs. Hotels and convention centers transport stacked banquet tables, staging panels, and room dividers between storage and event spaces. Moving companies use the flat platform (with uprights removed) for mattresses, appliances, and heavy boxed freight.
Selection Assistance
Choose this heavy duty panel dolly when your loads regularly exceed 2,400 lbs or when you need the structural rigidity of a rib-reinforced 12-gauge steel platform for dense, heavy materials. If your primary loads are lighter office panels, room dividers, banquet tables, and general facility items, the standard Panel Mover (2,400 lb, 16-gauge) or the Panel Dolly with Extra Tall Uprights provides the right capacity at a lower weight and price.
For facilities that need to load and unload mixed-size sheets without disturbing the rest of the stack, consider the Waterfall Panel Mover series, which uses a staggered upright design for individual sheet access. For narrow aisles and tight storage areas, the Narrow Panel Mover series provides a slimmer profile without sacrificing load capacity.
Need help choosing? Barron Equipment’s material handling team can evaluate your loads, flooring, and transport routes to recommend the right panel cart. Fill out the form below or contact us directly.
