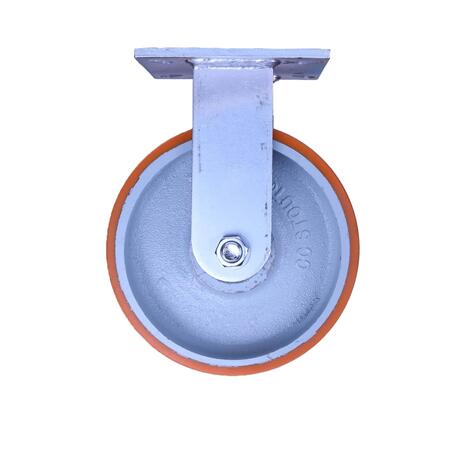

10 Inch Heavy Duty Kingpinless Rigid Caster with Polyurethane Wheel and Large Top Plate

Item ID: 71.103.55.APB Category

Moldon Polyurethane Wheel
Cast Iron Core
Ball Bearing
2800 lbs Capacity
Overall Height 12-1/2in
Overall Top Plate Size 5-1/4in x 7-1/4in
Bolt Hole 3-3/8in – 4-1/8in x 5-1/4in – 6-1/8in

$263.35

Free Shipping
SKU71.103.55.APB2D Drawing2D Drawing
Wheel Diameter10 InchesWeight Capacity2800 Lbs
Wheel Width3 InchesTread StyleDonut Tread
Overall Height12-1/2 InchesWheel MaterialPolyurethane
Core MaterialCast IronBearing WheelBall Bearing
Caster TypeRigidMounting typeLarge Top Plate
Top Plate5-1/4 Inches x 7-1/4 InchesAxle TypeSolid Axle
Top Plate Holes3-3/8 Inches - 4-1/8 Inches x 5-1/4 Inches - 6-1/8 InchesFork FinishZinc Plated

Product Specification

Wheel Diameter

Caster Type

Wheel Material

Top Plate Dimensions

Wheel Width

Wheel Brakes

Weight Capacity

Application

Bearing Type

Ball Bearing

Overall Height

12-1/2in

Resources

Download File (71.103.55.APB_-1.step)

View PDF (71.103.55.APB_-1.pdf)

Download File (71.103.55.APB_-1.dwg)
