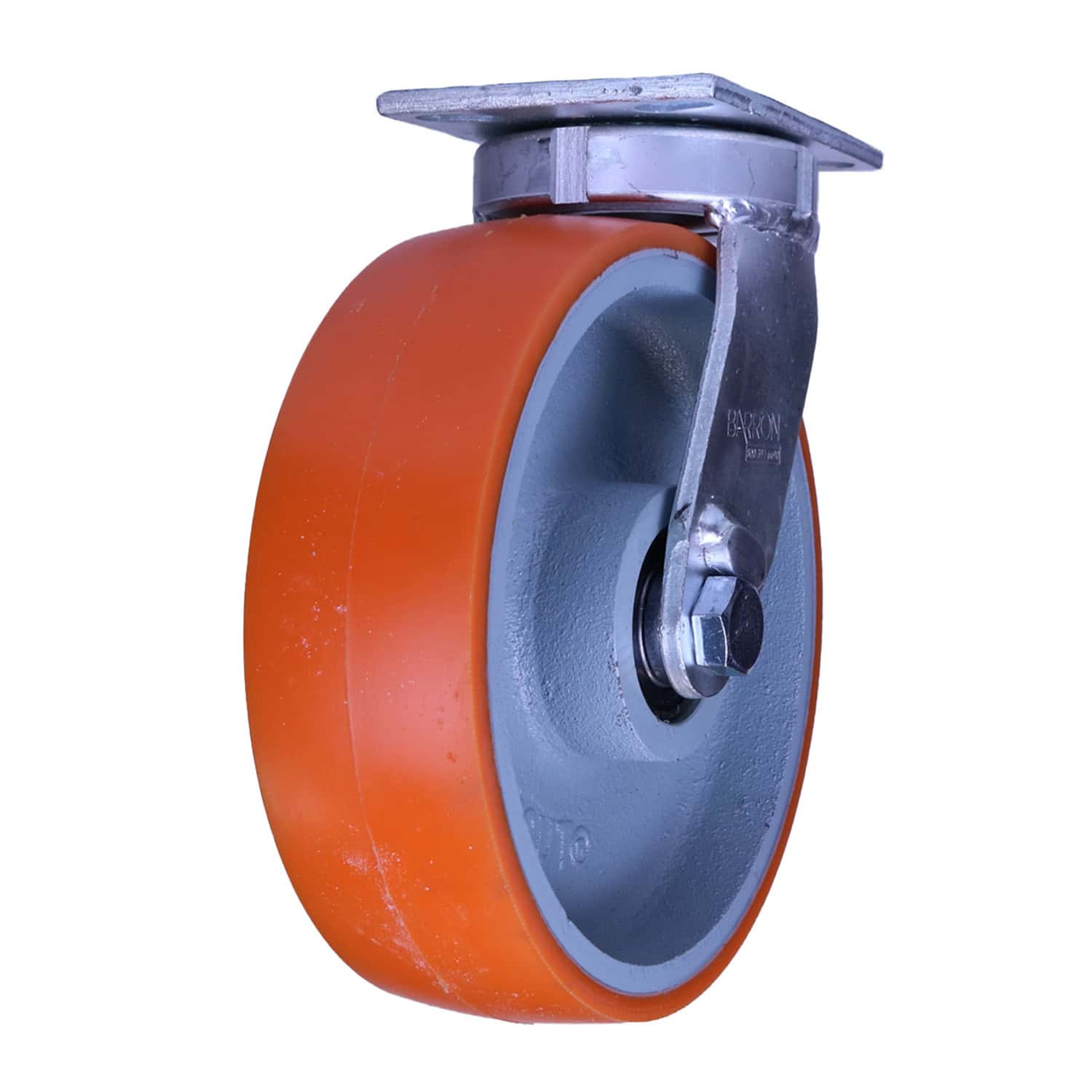

70.103.51.APB Preview

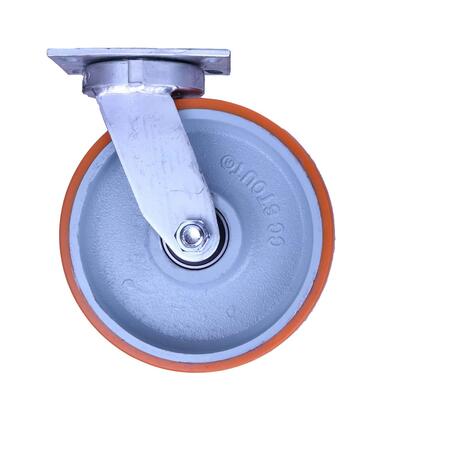

360 70.103.51.APB Preview

10 Inch Heavy Duty Kingpinless Swivel Caster with Polyurethane Wheel and Large Top Plate

Item ID: 70.103.51.APB Category

Moldon Polyurethane Wheel
Cast Iron Core
Ball Bearing
2,750 lbs Capacity
Overall Height 11-1/2in
Overall Top Plate Size 4-1/2in x 6-1/2in
Bolt Hole 2-7/16in – 3-3/8in x 4-15/16in – 5-1/4in

$300.41

Free Shipping
SKU70.103.51.APB2D Drawing2D Drawing
Wheel Diameter10 InchesWeight Capacity2750 Lbs
Wheel Width3 InchesTread StyleDonut Tread
Overall Height11-1/2 InchesWheel MaterialPolyurethane
Core MaterialCast IronBearing WheelBall Bearing
Caster TypeSwivelMounting typeLarge Top Plate
Top Plate4-1/2 Inches x 6-1/2 InchesAxle TypeSolid Axle
Top Plate Holes2-7/16 Inches - 3-3/8 Inches x 4-15/16 Inches - 5-1/4 InchesFork FinishZinc Plated

Product Specification

Wheel Diameter

Caster Type

Wheel Material

Top Plate Dimensions

Wheel Width

Wheel Brakes

Weight Capacity

Application

Bearing Type

Ball Bearing

Overall Height

11-1/2in

Resources

Download File (70.103.51.APB_-1.step)

View PDF (70.103.51.APB_-1.pdf)

Download File (70.103.51.APB_-1.dwg)
