Overview
Benefits

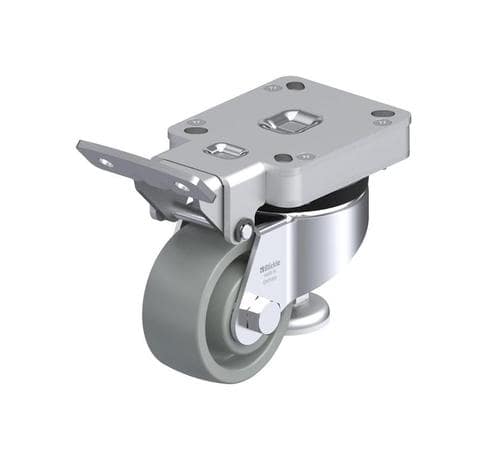

- Heavy Duty Swivel Caster: With a dynamic load capacity of 660 lbs, this caster is perfect for heavy-duty applications.
- Precision Ball Bearings: Maintenance-free precision ball bearings ensure smooth and reliable operation.
- Polyurethane Caster Wheels: The polyurethane wheels provide superior floor protection and reduce noise during movement.
- High Quality Materials: Constructed with top quality materials, this caster is built to withstand rigorous use.
| SKU | HRLK-SPOG 80K | Minimum Temperature | -15 |
|---|---|---|---|
| Wheel Diameter | 3-1/8 Inches | Maximum Temperature | 160 |
| Wheel Width | 1-7/16 Inches | Wheel Material | Nylon 6 |
| Overall Height | 4-3/4 Inches | Bearing Type | Ball Bearing |
| Core Material | Nylon 6 | Weight Capacity | 660 lbs at 2.5 mph |
| Caster Type | Swivel | Mounting Type | Top Plate |
| Application | Heavy Duty | Top Plate | 3-15/16 Inches x 3-3/8 Inches |
| Hardness Rating | 70 Shore D | Top Plate Holes | 3-5/32 Inches x 2-3/8 Inches |
| Lifting Height | 1/16 Inch | Max Foot Floor Clearance | 1/2 Inch |
Nylon Caster Wheels
Nylon caster wheels offer a durable, low-maintenance solution for a wide range of industrial applications. Known for their excellent rolling performance on smooth surfaces, these wheels are ideal for environments that demand chemical resistance, high load capacity, and minimal noise.
Barron Equipment provides a comprehensive selection of nylon wheel solutions, including multiple series designed to meet diverse operational needs. Options range from injection-molded nylon wheels for hygiene-sensitive areas to heavy-duty compressed cast nylon wheels for demanding industrial use. Some models also feature rubber damping rings to reduce noise emissions—perfect for settings where quiet operation is essential.
Nylon wheels are resistant to many aggressive substances, including oils, greases, and cleaning agents, making them suitable for food processing, pharmaceutical production, and laboratory equipment. With temperature tolerances typically ranging from -45 °F to +350 °F, they perform reliably in both dry and wet conditions without rusting.
Learn more about our nylon caster wheel options by watching the video below.
Applications
- Industrial carts and trolleys
- Warehouse equipment
- Manufacturing machinery
- Medical equipment
- Retail displays
