Overview

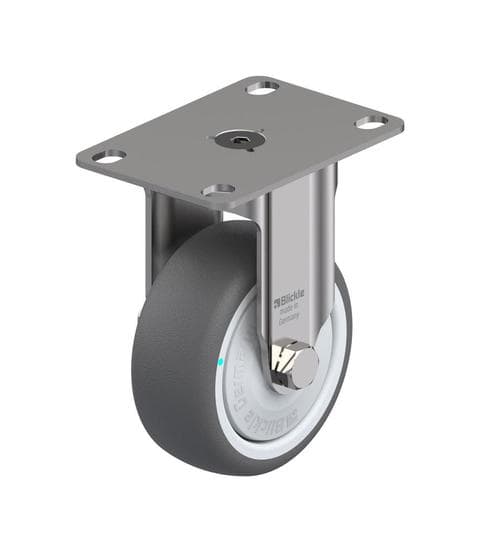

The BKPXA-PATH 80KFD-12 is a high-quality rigid caster designed by Blickle. This caster features a thermoplastic polyurethane (TPU) tread, which is cast onto a high-quality nylon 6 wheel center, forming a strong chemical bond. The caster is non-marking and non-staining, ensuring floor protection and reliable performance.
Benefits
- High-Quality Materials: The tread is made of thermoplastic polyurethane with a hardness of 94 Shore A, providing durability and resistance to wear.
- Low Rolling Resistance: The PATH series is characterized by very low rolling resistance, making it easy to maneuver.
- Floor Protection: The non-marking and non-staining properties of the TPU tread protect floors from damage.
- Reliable Performance: The strong chemical bond between the tread and wheel center ensures long-lasting performance.
| SKU | BKPXA-PATH 80KFD-12 | Minimum Temperature | -5 |
|---|---|---|---|
| Wheel Diameter | 3-1/8 Inches | Maximum Temperature | 160 |
| Wheel Width | 1-1/4 Inches | Wheel Material | Thermoplastic Polyurethane |
| Overall Height | 4-3/8 Inches | Bearing Type | Ball Bearing |
| Core Material | Nylon 6 | Weight Capacity | 220 lbs at 2.5 mph |
| Caster Type | Rigid | Mounting Type | Top Plate |
| Application | Light Duty | Top Plate | 3-5/8 Inches x 2-1/2 Inches |
| Hardness Rating | 94 Shore A | Top Plate Holes | 1-3/4 Inches x 2-13/16 Inches - 3-1/16 Inches |
Thermoplastic Polyurethane Wheels
Thermoplastic polyurethane (TPU) wheels offer a high-performance solution for environments requiring quiet operation, floor protection, and resistance to wear and chemicals. These wheels are ideal for hygiene-sensitive areas, heavy-duty transport, and applications demanding both comfort and durability.
Barron Equipment features a wide range of TPU wheel solutions, including Blickle’s PATH and POTH series:
- PATH Series: Injection-molded TPU tread bonded to a nylon core, These wheels are non-marking, corrosion-resistant, and optimized for noise reduction and floor preservation . Available in swivel and rigid caster formats with options like Stop-Fix brakes.
- POTH Series: Soft TPU tread with a hardness of 94 Shore A, cast onto an impact-resistant nylon center. Also includes a high load capacity.
These wheels are available in multiple sizes and bearing types, including ball, roller, and corrosion-resistant options.
For more information, check out the video below.
Applications
- Industrial Use: Ideal for heavy-duty applications where reliable performance and floor protection are essential.
- Maintenance-Free Option: Equipped with precision ball bearings, this caster ensures smooth and maintenance-free operation.
- Versatile: Suitable for various environments, including warehouses, manufacturing facilities, and more.
Selection Assistance
Not sure which Blickle caster would work best for your application? We have a whole team of caster experts dedicated to finding the perfect caster for your business, improving ergonomics, and saving your company money. Fill out the form below, and a Barron caster representative will be in touch soon!
