Overview
Benefits

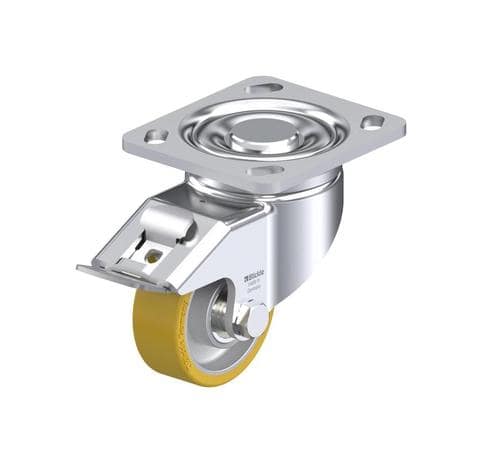

- High Load Capacity: With a dynamic load capacity of 440 lbs, this heavy duty swivel caster is perfect for handling substantial weights.
- Durable Construction:Â Made from high quality materials, the caster ensures long-lasting performance even under rigorous conditions.
- Smooth Mobility:Â The precision ball bearings in the swivel head provide smooth and effortless movement, reducing the effort required to maneuver heavy loads.
- Floor Protection:Â The polyurethane caster wheels offer excellent floor protection, preventing damage to surfaces while providing a quiet and smooth ride.
| SKU | LH-ALTH 80K-14-FI | Minimum Temperature | -5 |
|---|---|---|---|
| Wheel Diameter | 3-1/8 Inches | Maximum Temperature | 160 |
| Wheel Width | 1-3/16 Inches | Wheel Material | Blickle Extrathane Polyurethane Elastomer |
| Overall Height | 4-3/4 Inches | Bearing Type | Ball Bearing |
| Core Material | Die-Cast Aluminium | Weight Capacity | 440 lbs at 2.5 mph |
| Caster Type | Swivel | Mounting Type | Top Plate |
| Application | Heavy Duty | Top Plate | 4-1/2 Inches x 4 Inches |
| Hardness Rating | 92 Shore A | Top Plate Holes | 2-5/8 Inches x 3-5/8 Inches / 3 Inches x 3 Inches |
Blickle Extrathane Polyurethane Wheels
Blickle Extrathane® polyurethane wheels are built for heavy-duty performance, combining high load capacity with exceptional durability. These wheels feature a high-quality, reaction-injected polyurethane-elastomer tread that offers outstanding resistance to abrasion, cuts, and tear propagation—making them ideal for industrial environments with thresholds, sharp obstacles, and medium-speed transport.
Barron Equipment offers a full range of Extrathane wheel solutions, including:
- GTH Series: Cast iron wheel centers for rugged durability and high load capacity
- ALTH Series: Lightweight aluminum wheel centers for logistics and mobile equipment
- SETH & VSTH Series: Welded steel centers for extreme-duty applications
These wheels are available in swivel and rigid caster formats, with multiple mounting options and bearing types. The tread is non-marking, chemically bonded to the wheel core, and designed for quiet operation and good floor preservation.
Check out the video below to learn more.
Applications
- Manufacturing plants
- Warehouses
- Distribution centers
- Heavy machinery and equipment transport
- Industrial carts and dollies
