Overview
Benefits
- Heavy Duty Design:Â The caster is built to handle substantial loads, making it ideal for industrial applications.
- Polyurethane Tread: The Blickle Extrathane® polyurethane tread offers high abrasion resistance, non-marking, and non-staining properties, providing excellent floor protection.
- Aluminum Wheel Center:Â The aluminum core enhances the caster's strength and longevity.
- Precision Ball Bearings:Â Maintenance-free precision ball bearings ensure smooth and reliable performance.

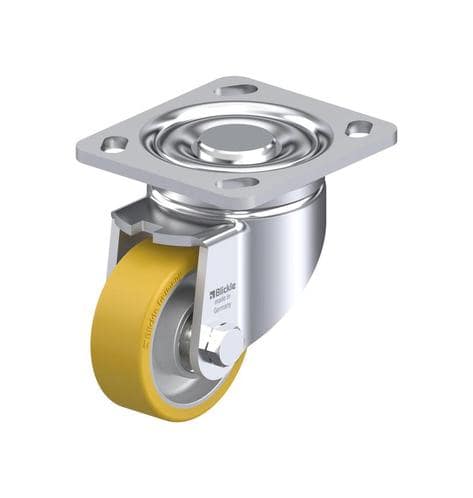

| SKU | LH-ALTH 80K-14 | Minimum Temperature | -5 |
|---|---|---|---|
| Wheel Diameter | 3-1/8 Inches | Maximum Temperature | 160 |
| Wheel Width | 1-3/16 Inches | Wheel Material | Blickle Extrathane Polyurethane Elastomer |
| Overall Height | 4-3/4 Inches | Bearing Type | Ball Bearing |
| Core Material | Die-Cast Aluminium | Weight Capacity | 440 lbs at 2.5 mph |
| Caster Type | Swivel | Mounting Type | Top Plate |
| Application | Heavy Duty | Top Plate | 4-1/2 Inches x 4 Inches |
| Hardness Rating | 92 Shore A | Top Plate Holes | 2-5/8 Inches x 3-5/8 Inches / 3 Inches x 3 Inches |
Blickle Extrathane Polyurethane Wheels
Blickle Extrathane® polyurethane wheels are built for heavy-duty performance, combining high load capacity with exceptional durability. These wheels feature a high-quality, reaction-injected polyurethane-elastomer tread that offers outstanding resistance to abrasion, cuts, and tear propagation—making them ideal for industrial environments with thresholds, sharp obstacles, and medium-speed transport.
Barron Equipment offers a full range of Extrathane wheel solutions, including:
- GTH Series: Cast iron wheel centers for rugged durability and high load capacity
- ALTH Series: Lightweight aluminum wheel centers for logistics and mobile equipment
- SETH & VSTH Series: Welded steel centers for extreme-duty applications
These wheels are available in swivel and rigid caster formats, with multiple mounting options and bearing types. The tread is non-marking, chemically bonded to the wheel core, and designed for quiet operation and good floor preservation.
Check out the video below to learn more.
Applications
- Heavy machinery
- Warehouse equipment
- Manufacturing plants
- Any environment requiring reliable and durable caster wheels
