Overview

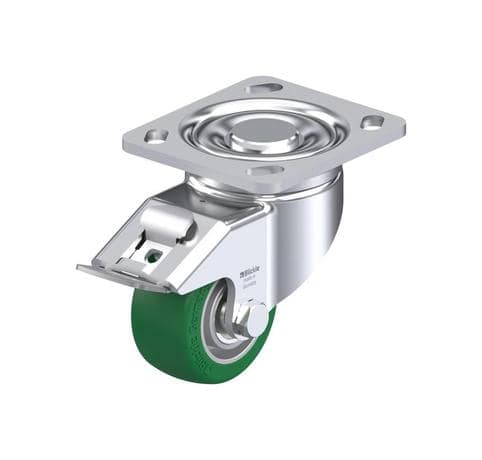

The Blickle LH-ALST 82K-14-FI heavy duty swivel caster is designed to provide top quality mobility solutions for various industrial applications. This industrial swivel caster features high quality materials and precision ball bearings, ensuring reliable performance and long-lasting durability. The polyurethane caster wheels offer excellent floor protection and are suitable for both indoor and outdoor use.
Benefits
- High Load Capacity: With a dynamic load capacity of 505 lbs, this heavy duty swivel caster is perfect for handling heavy loads with ease.
- Precision Ball Bearings:Â The maintenance-free precision ball bearings ensure smooth and effortless movement, reducing the effort required to move heavy equipment.
- Polyurethane Wheels:Â The polyurethane caster wheels provide superior floor protection, reducing the risk of damage to flooring surfaces.
- Durable Construction:Â Made from high quality materials, this caster is built to withstand the rigors of industrial environments.
| SKU | LH-ALST 82K-14-FI | Minimum Temperature | -5 |
|---|---|---|---|
| Wheel Diameter | 3-1/8 Inches | Maximum Temperature | 160 |
| Wheel Width | 1-9/16 Inches | Wheel Material | Blickle Softhane Polyurethane Elastomer |
| Overall Height | 4-3/4 Inches | Bearing Type | Ball Bearing |
| Core Material | Die-Cast Aluminium | Weight Capacity | 505 lbs at 2.5 mph |
| Caster Type | Swivel | Mounting Type | Top Plate |
| Application | Heavy Duty | Top Plate | 4-1/2 Inches x 4 Inches |
| Hardness Rating | 75 Shore A | Top Plate Holes | 2-5/8 Inches x 3-5/8 Inches / 3 Inches x 3 Inches |
Blickle Softhane® Polyurethane Wheels
Blickle Softhane® polyurethane wheels are designed for exceptional operational comfort, quiet mobility, and superior floor protection. These wheels feature an extra-thick, elastic polyurethane-elastomer tread that is gentle on surfaces, abrasion-resistant, and non-marking—even in sensitive environments.
Barron Equipment offers a full range of Softhane® wheel solutions, including:
- ALST Series: Wheels with Softhane® tread cast onto die-cast aluminum centers. Ideal for uneven surfaces and sharp edges, these wheels offer a Shore hardness of 75 A and are available in swivel and rigid caster formats.
- GST Series: Heavy-duty wheels with Softhane® tread bonded to rugged gray cast iron centers. Built for demanding industrial applications requiring high load capacity and durability.
These wheels are resistant to a wide range of aggressive substances (excluding aromatic solvents, hot water, and steam), and are available in antistatic versions with gray treads. Custom Shore hardness values and colors are available upon request.
Check out the video below to learn more about Softhane polyurethane wheels.
Applications
The Blickle LH-ALST 82K-14-FI heavy duty swivel caster is ideal for a wide range of applications, including:
- Industrial carts and trolleys
- Heavy machinery and equipment
- Warehouse and distribution centers
- Manufacturing facilities
- Medical and laboratory equipment
Selection Assistance
Not sure which Blickle caster would work best for your application? We have a whole team of caster experts dedicated to finding the perfect caster for your business, improving ergonomics and saving your company money. Fill out the form below and a Barron caster representative will be in touch soon!
