360 61.42.50.APB.Preview.jpg

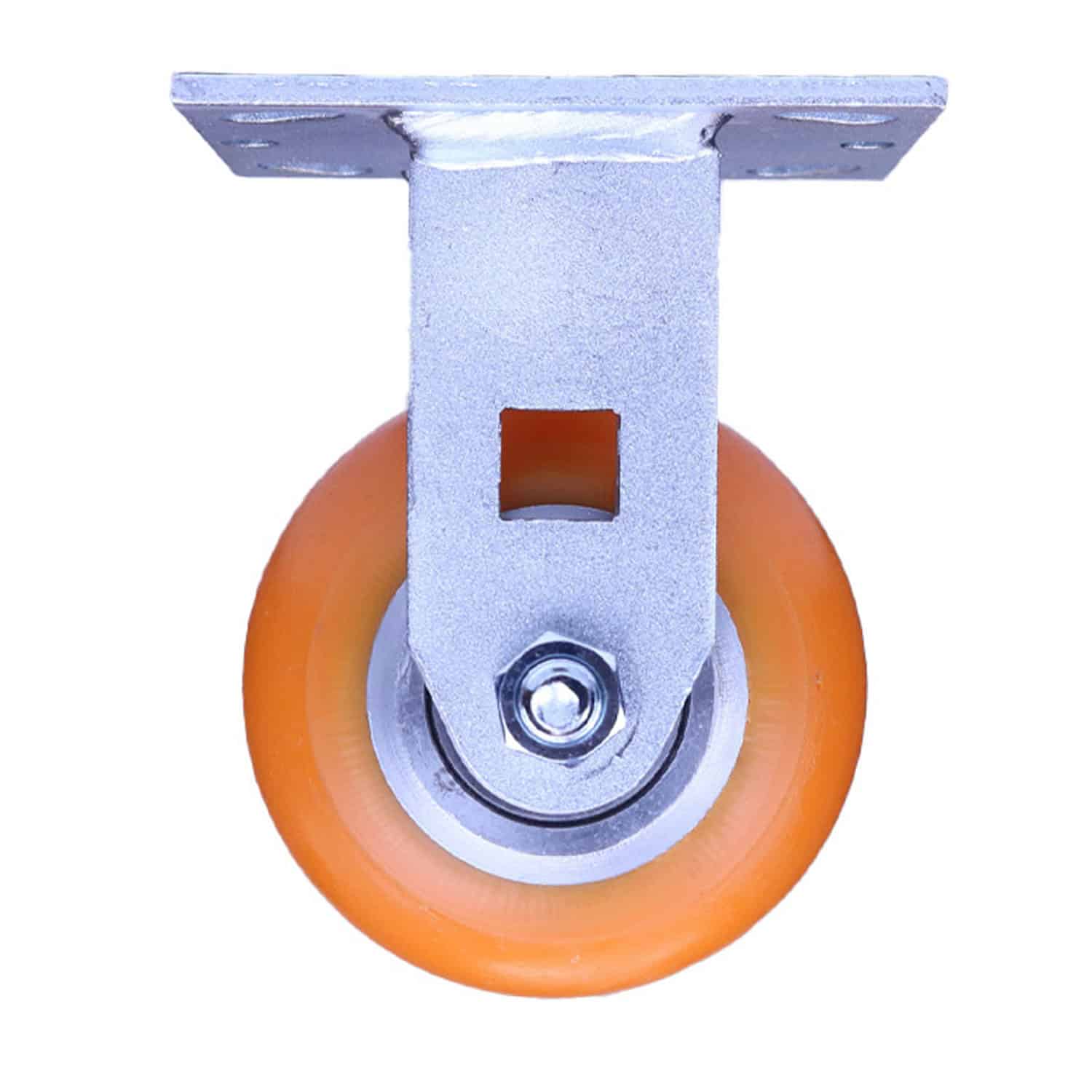

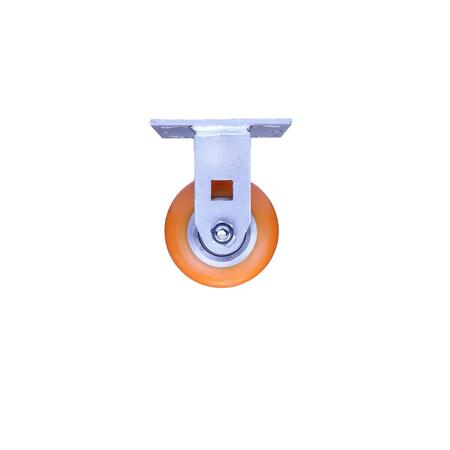

4 Inch Kingpinless Rigid Caster with Polyurethane Wheel

Item ID: 61.42.50.APB Categories ,

Moldon Polyurethane Wheel
Donut Tread
Aluminum Core
Ball Bearing
650 lbs Capacity
Overall Height 5-5/8in
Overall Top Plate 4in x 4-1/2in
Bolt Hole 2-5/8in – 3in x 3in – 3-5/8in

$36.41

SKU61.42.50.APB2D Drawing2D Drawing
Wheel Diameter4 InchesWeight Capacity650 Lbs
Wheel Width2 InchesTread StyleDonut Tread
Overall Height5-5/8 InchesWheel MaterialPolyurethane
Core MaterialAluminumBearing WheelBall Bearing
Caster TypeRigidMounting typeTop Plate
Top Plate4 Inches x 4-1/2 InchesAxle TypeSolid Axle
Top Plate Holes2-5/8 Inches - 3 Inches x 3 Inches - 3-5/8 InchesFork FinishZinc Plated

Product Specification

Wheel Diameter

Caster Type

Wheel Material

Top Plate Dimensions

Wheel Width

Wheel Brakes

Weight Capacity

Application

Bearing Type

Ball Bearing

Overall Height

5-5/8in

Resources

Download File (61.42.50.APB_.step)

View PDF (61.42.50.APB_.pdf)

Download File (61.42.50.APB_.dwg)
