| SKU | 60.42.51.APB | 2D Drawing | 2D Drawing |
|---|---|---|---|
| Wheel Diameter | 4 Inches | Weight Capacity | 650 Lbs |
| Wheel Width | 2 Inches | Tread Style | Donut Tread |
| Overall Height | 5-5/8 Inches | Wheel Material | Polyurethane |
| Core Material | Aluminum | Bearing Wheel | Ball Bearing |
| Caster Type | Swivel | Mounting type | Large Top Plate |
| Top Plate | 4-1/2 Inches x 6-1/4 Inches | Axle Type | Solid Axle |
| Top Plate Holes | 2-7/16 Inches - 3-3/8 Inches x 4-15/16 Inches - 5-1/4 Inches | Fork Finish | Zinc Plated |
Overview

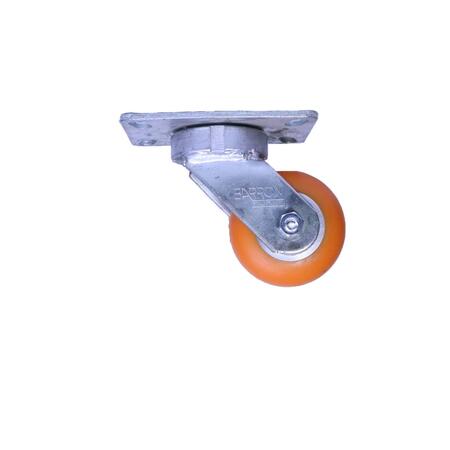

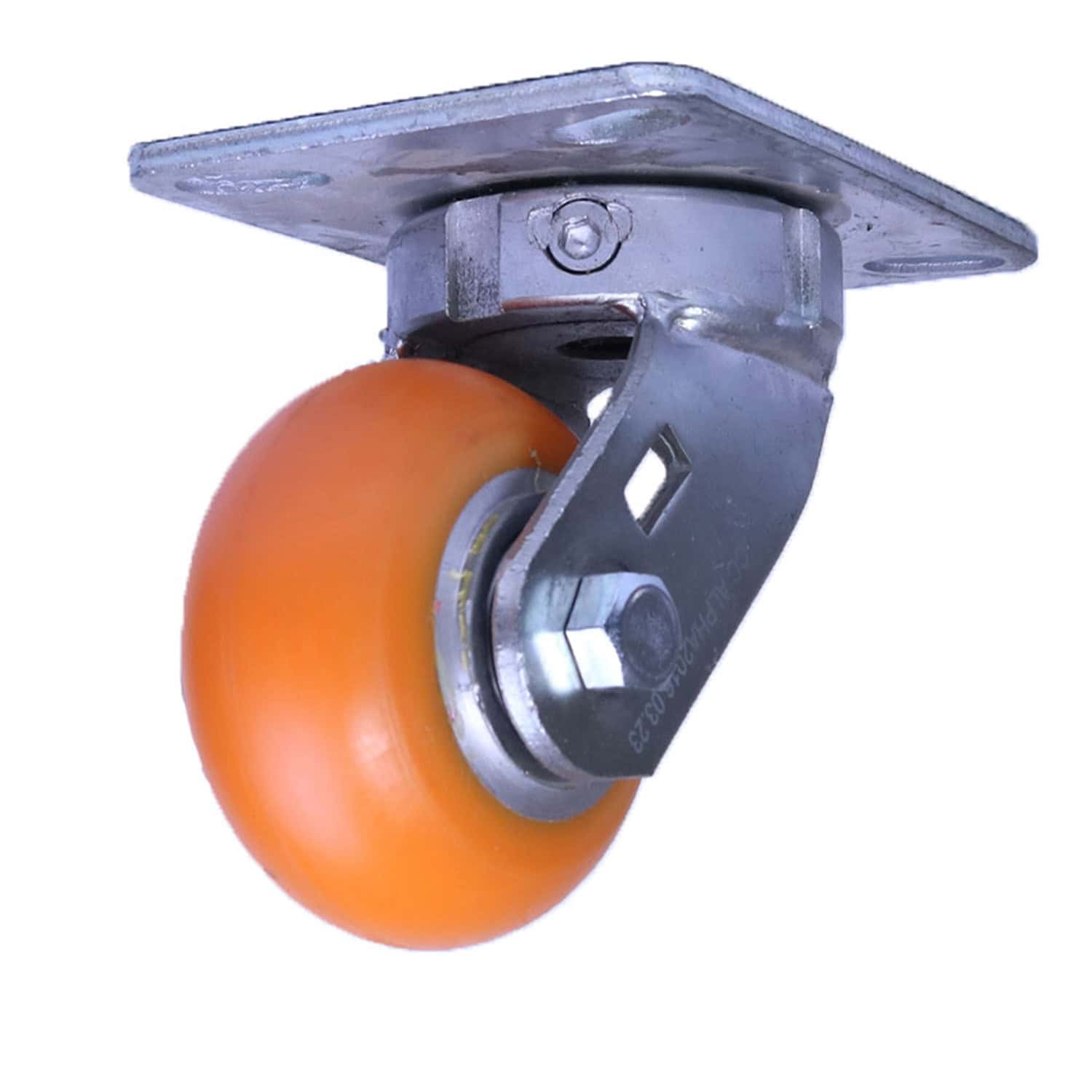

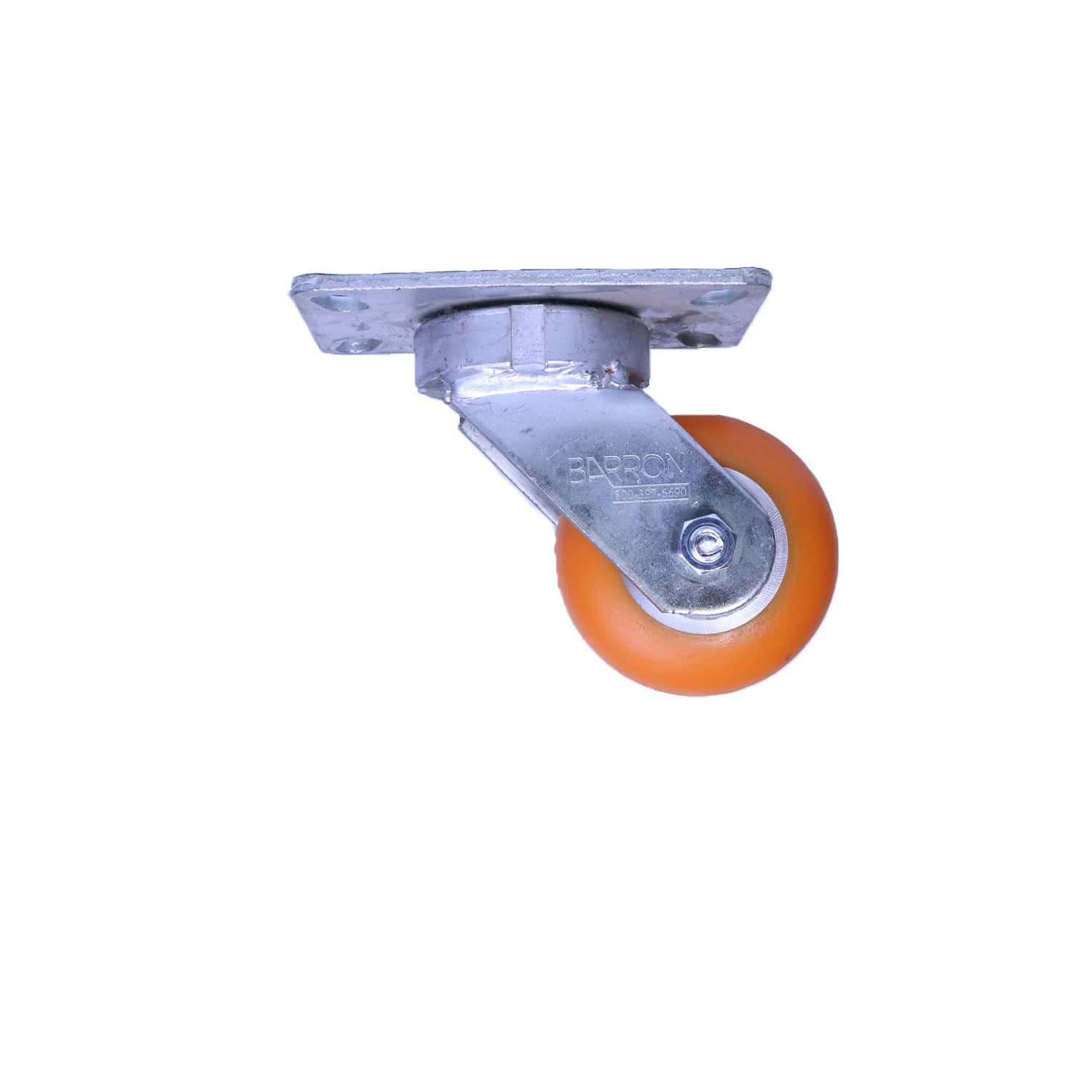

This kingpinless swivel caster has a polyurethane caster wheel with a diameter of 4 inches and is ideal for heavy duty industrial applications. This swivel caster has more benefits and better overall ergonomics than the standard industrial caster.
Benefits
The main benefit of the kingpinless series casters is that they eliminate the use of the kingpin which allows for longer use, better ergonomics and more efficiency. In addition to benefits of the overall kingpinless caster category, polyurethane wheels have their own benefits, such as superior floor protection, longer service life, low rolling resistance, high dynamic load capacity and high tear resistance.
Applications
Applications for polyurethane kingpinless casters include industrial manufacturing, waste bins, platform trucks, job boxes in bakeries and woodworking facilities. Due to the high load capacity, polyurethane caster wheels work great in Woodworking, Aerospace, Automotive and Food Processing industries. Click here to learn more about our polyurethane wheels.
A locking swivel caster is also available in this series for added safety and stability. Look for part numbers that end in "FCB," "BIB," "DSL," "TB," and "IS" which stand for "Face Contact Brake," "Built in Brake," "Demountable Swivel Lock," "Top Lock Brake," and "Ideal Stop Brake" respectively. For more information about our caster braking options, check out our blog post about the variety of brakes we offer - Braking Ground: A Comprehensive Guide to Diverse Industrial Caster Brake Types.
If your business requires a heavy duty swivel caster solution, you will want to review our Heavy Duty Kingpinless Casters category.
Selection Assistance
Not sure which caster would work best for your application? We have a whole team of caster experts dedicated to find the perfect caster for your business that can help improve ergonomics and save your company money. Fill out the form below and Barron caster representative will be in touch soon!
