Overview

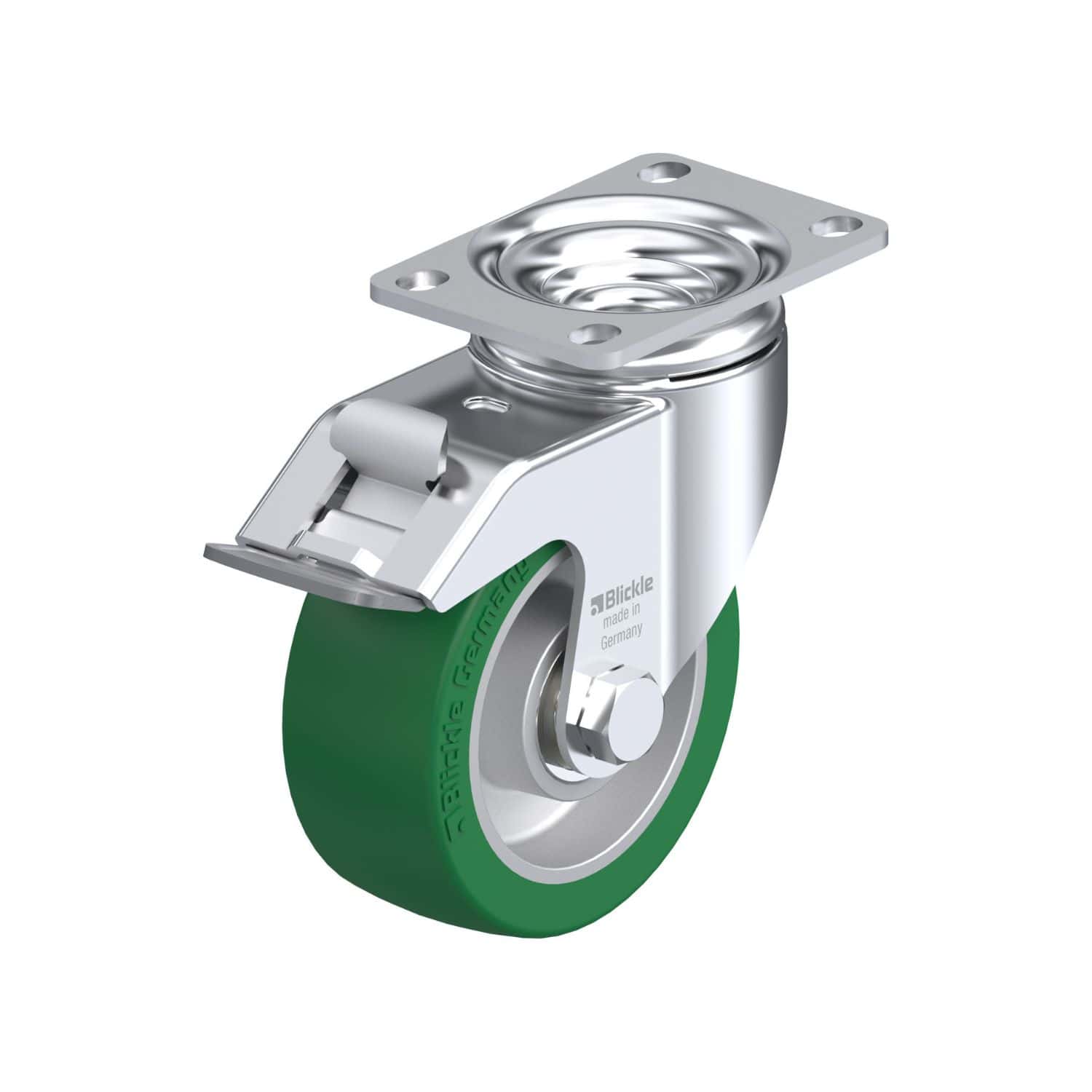

The Blickle L-ALST 100K-12-FI industrial swivel caster is designed to provide top quality mobility solutions for various applications. Featuring high quality materials and precision ball bearings, this caster ensures reliable performance and durability. The caster wheel is made from polyurethane, offering excellent floor protection and heavy duty capabilities.
Benefits
- Precision Ball Bearings: The L-ALST 100K-12-FI caster is equipped with precision ball bearings, making it maintenance-free and ensuring smooth operation.
- Polyurethane Wheel: The polyurethane caster wheel provides superior floor protection and is ideal for heavy duty applications.
- High Load Capacity: With a dynamic load capacity of 550 lbs, this industrial swivel caster is perfect for demanding environments.
- Durable Construction: Made from high quality materials, the Blickle L-ALST 100K-12-FI caster is built to last and withstand rigorous use.
| SKU | L-ALST 100K-12-FI | Minimum Temperature | -5 |
|---|---|---|---|
| Wheel Diameter | 4 Inches | Maximum Temperature | 160 |
| Wheel Width | 1-9/16 Inches | Wheel Material | Blickle Softhane Polyurethane Elastomer |
| Overall Height | 5-1/8 Inches | Bearing Type | Ball Bearing |
| Core Material | Die-Cast Aluminium | Weight Capacity | 550 lbs at 2.5 mph |
| Caster Type | Swivel | Mounting Type | Top Plate |
| Application | Heavy Duty | Top Plate | 3-5/8 Inches x 2-1/2 Inches |
| Hardness Rating | 75 Shore A | Top Plate Holes | 1-3/4 Inches x 2-13/16 Inches - 3-1/16 Inches |
Blickle Softhane® Polyurethane Wheels
Blickle Softhane® polyurethane wheels are designed for exceptional operational comfort, quiet mobility, and superior floor protection. These wheels feature an extra-thick, elastic polyurethane-elastomer tread that is gentle on surfaces, abrasion-resistant, and non-marking—even in sensitive environments.
Barron Equipment offers a full range of Softhane® wheel solutions, including:
- ALST Series: Wheels with Softhane® tread cast onto die-cast aluminum centers. Ideal for uneven surfaces and sharp edges, these wheels offer a Shore hardness of 75 A and are available in swivel and rigid caster formats.
- GST Series: Heavy-duty wheels with Softhane® tread bonded to rugged gray cast iron centers. Built for demanding industrial applications requiring high load capacity and durability.
These wheels are resistant to a wide range of aggressive substances (excluding aromatic solvents, hot water, and steam), and are available in antistatic versions with gray treads. Custom Shore hardness values and colors are available upon request.
Check out the video below to learn more about Softhane polyurethane wheels.
Applications
The Blickle L-ALST 100K-12-FI industrial swivel caster is suitable for a wide range of applications, including:
- Industrial equipment
- Material handling carts
- Warehouse and distribution environments
- Heavy duty machinery
