Overview

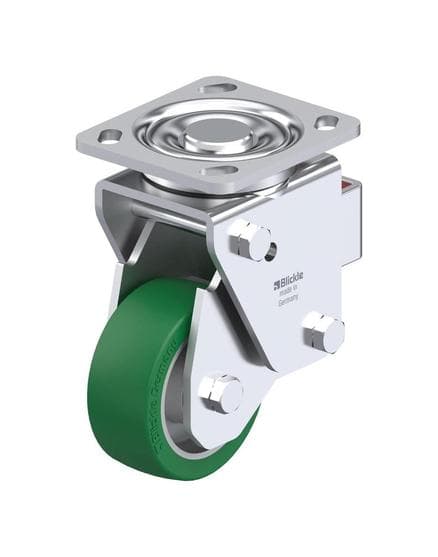

The Blickle LHF-ALST 100K-14 is a high-quality industrial swivel caster designed for heavy-duty applications. This caster features a robust construction with a polyurethane wheel, ensuring excellent floor protection and smooth mobility. The wheel is made from Blickle Softhane polyurethane elastomer, which is known for its durability and non-marking properties.
Benefits
- Durability:Â The polyurethane caster wheels are highly resistant to wear and tear, providing a long service life.
- Floor Protection:Â The soft polyurethane tread ensures that floors are protected from damage and marks.
- Smooth Rolling:Â The precision ball bearings in the wheel offer maintenance-free operation and smooth rolling performance.
- High Load Capacity:Â This heavy duty swivel caster can support significant loads, making it suitable for various industrial applications.
| SKU | LHF-ALST 100K-14 | Minimum Temperature | -5 |
|---|---|---|---|
| Wheel Diameter | 4 Inches | Maximum Temperature | 160 |
| Wheel Width | 1-9/16 Inches | Wheel Material | Blickle Softhane Polyurethane Elastomer |
| Overall Height | 6-7/8 Inches | Bearing Type | Ball Bearing |
| Core Material | Die-Cast Aluminium | Weight Capacity | 705 lbs at 2.5 mph |
| Caster Type | Swivel | Mounting Type | Top Plate |
| Application | Heavy Duty | Top Plate | 4-1/2 Inches x 4 Inches |
| Hardness Rating | 75 Shore A | Top Plate Holes | 2-5/8 Inches x 3-5/8 Inches / 3 Inches x 3 Inches |
Blickle Softhane® Polyurethane Wheels
Blickle Softhane® polyurethane wheels are designed for exceptional operational comfort, quiet mobility, and superior floor protection. These wheels feature an extra-thick, elastic polyurethane-elastomer tread that is gentle on surfaces, abrasion-resistant, and non-marking—even in sensitive environments.
Barron Equipment offers a full range of Softhane® wheel solutions, including:
- ALST Series: Wheels with Softhane® tread cast onto die-cast aluminum centers. Ideal for uneven surfaces and sharp edges, these wheels offer a Shore hardness of 75 A and are available in swivel and rigid caster formats.
- GST Series: Heavy-duty wheels with Softhane® tread bonded to rugged gray cast iron centers. Built for demanding industrial applications requiring high load capacity and durability.
These wheels are resistant to a wide range of aggressive substances (excluding aromatic solvents, hot water, and steam), and are available in antistatic versions with gray treads. Custom Shore hardness values and colors are available upon request.
Check out the video below to learn more about Softhane polyurethane wheels.
Applications
The Blickle LHF-ALST 100K-14 caster is ideal for:
- Industrial equipment
- Heavy machinery
- Warehouse carts
- Manufacturing plants
