Overview
Benefits
- Thermoplastic Wheel: The wheel is made from high-quality thermoplastic material, offering durability and smooth running performance.

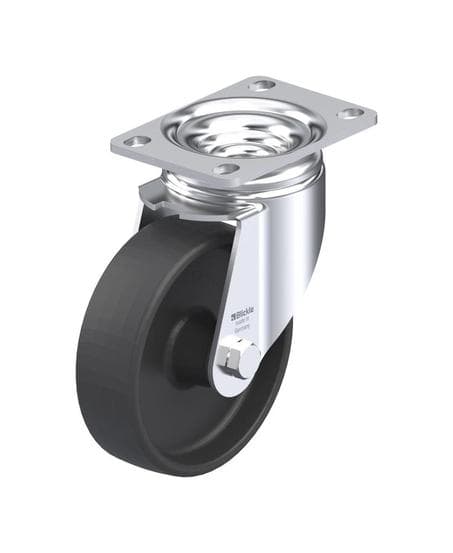

- High Load Capacity: With a dynamic load capacity of 330 lbs, this heavy duty swivel caster is perfect for demanding applications.
- Heat-Resistant Grease: The rig is equipped with highly heat-resistant grease, ensuring reliable performance in high-temperature environments.
- High Quality Materials: Ensures long-lasting performance in industrial settings.
- Mounting Plates: Easy installation and secure attachment.
| SKU | LI-POHI 100G-12-XAT | Minimum Temperature | -15 |
|---|---|---|---|
| Wheel Diameter | 4 Inches | Maximum Temperature | 480 |
| Wheel Width | 1-3/16 Inches | Wheel Material | Thermoplastic |
| Overall Height | 5-1/8 Inches | Bearing Type | Plain Bore |
| Core Material | Thermoplastic | Weight Capacity | 330 lbs at 2.5 mph |
| Caster Type | Swivel | Mounting Type | Top Plate |
| Application | Heavy Duty | Top Plate | 3-5/8 Inches x 2-1/2 Inches |
| Hardness Rating | 85 Shore D | Top Plate Holes | 1-3/4 Inches x 2-13/16 Inches - 3-1/16 Inches |
High-Temperature Caster Wheels
These wheels feature high-temperature resistant wheels. Heat-resistant wheels and casters play a crucial role across multiple industries, including food processing, healthcare, and heavy-duty manufacturing. These components must not only endure extreme temperatures but also meet strict hygiene standards, resist corrosion, and handle substantial weight loads.
Barron Equipment offers a wide selection of high-temperature wheel solutions, featuring eight distinct series designed to meet diverse operational needs. Options include solid rubber wheels with steel or synthetic hubs, as well as advanced silicone rubber treads paired with aluminum or synthetic cores—ideal for environments requiring both heat resistance and durability.
Additional materials such as nylon, phenolic resin, and cast iron expand the range, with temperature tolerances spanning from -328 °F to +1,112 °F depending on the wheel type.
Common applications include oven racks, sterilization carts, and industrial trolleys used in high-heat settings.
Check out the video below for more information.
Applications
- Industrial equipment
- Warehouse carts
- Heavy machinery
- Material handling
- Furniture
