40.42.50.PHR Preview

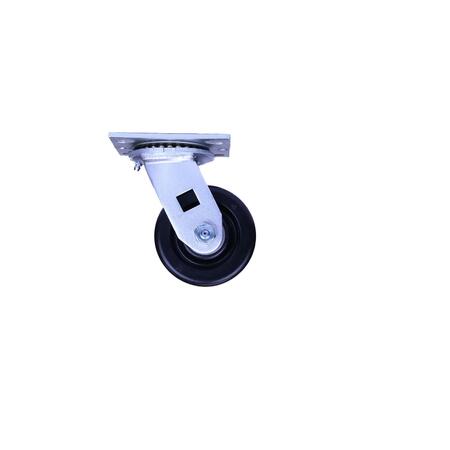

360 40.42.50.PHR Preview

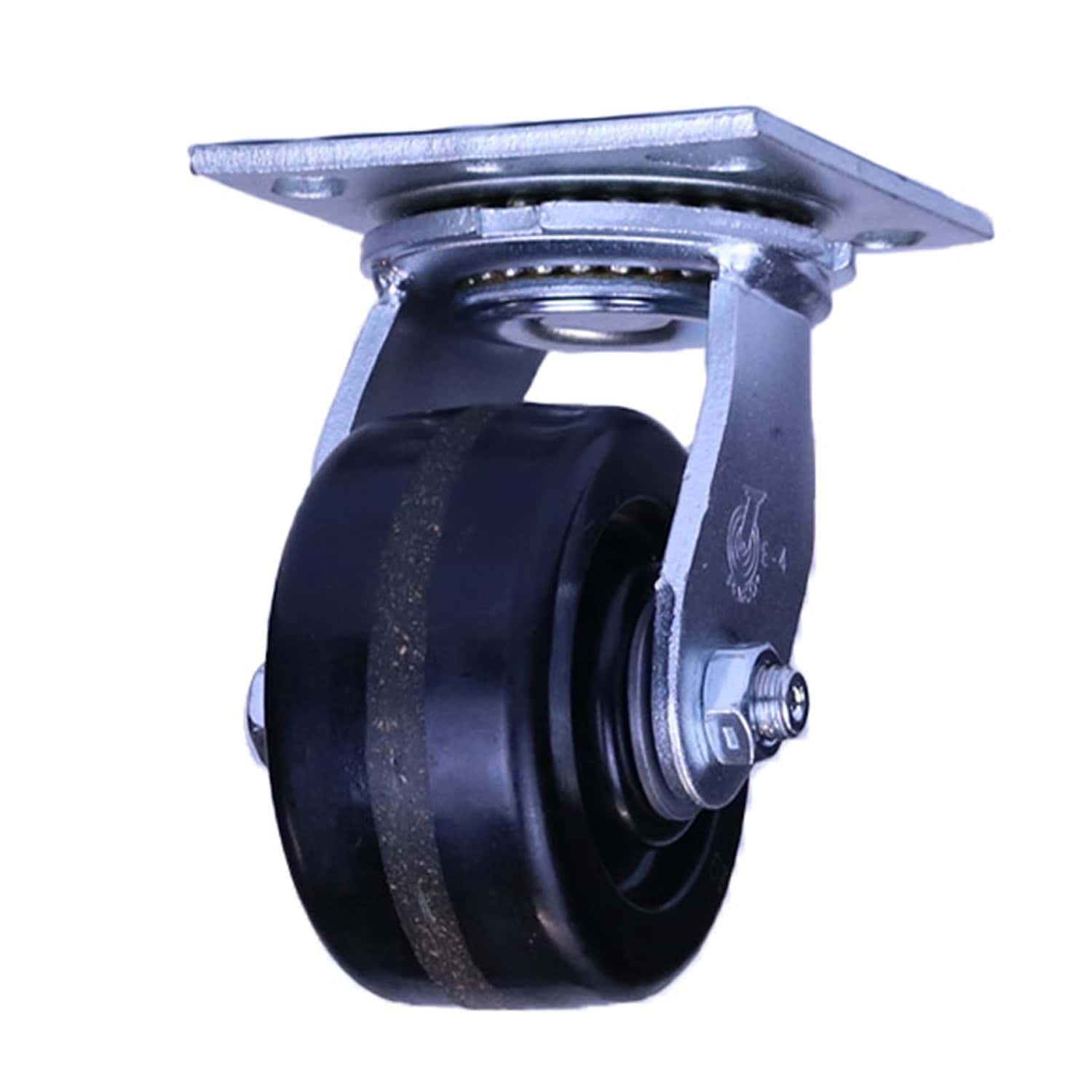

4 Inch Industrial Swivel Caster with Phenolic Wheel

Item ID: 40.42.50.PHR Category

Phenolic Wheel
Roller Bearing
800 lbs Capacity
Overall Height 5-5/8in
Overall Top Plate 4in x 4-1/2in
Bolt Hole 2-5/8in – 3in x 3in – 3-5/8in

$16.56

Free Shipping

SKU40.42.50.PHR
Wheel Diameter4 InchesWeight Capacity800 Lbs
Wheel Width2 InchesTread StyleDonut Tread
Overall Height5-5/8 InchesWheel MaterialPhenolic
Core MaterialAluminumBearing WheelRoller Bearing
Caster TypeRigidMounting typeTop Plate
Top Plate4 Inches x 4-1/2 InchesAxle TypeZerk Axle
Top Plate Holes2-5/8 Inches - 3 Inches x 3 Inches - 3-5/8 InchesFork FinishZinc Plated

Overview

This industrial swivel caster has a wheel diameter of 4 inches and is ideal for everyday use types of applications. This swivel caster is cost effective and overall a fantastic economical choice.

Benefits

The main benefit of the industrial series casters is that they are cost effective and they improve ergonomics wherever industrial caster applications are necessary. In addition to benefits of the overall industrial caster category, phenolic wheels have their own benefits such as being resistant to oil, grease, gasoline and mild acids.

Applications

Applications for casters with phenolic wheels include waste bins, platform trucks, job boxes in bakeries and woodworking facilities. Click here to learn more about our phenolic wheels.

A locking swivel caster is also available in this series for added safety and stability. Look for part numbers that end in "FCB," "BIB," "DSL," "TB," and "IS" which stand for "Face Contact Brake," "Built in Brake," "Demountable Swivel Lock," "Top Lock Brake," and "Ideal Stop Brake" respectively. For more information about our caster braking options, check out our blog post - Braking Ground: A Comprehensive Guide to Diverse Industrial Caster Brake Types

If your business requires a heavy duty swivel caster solution, as opposed to an economical solution, you will want to review our Heavy Duty Kingpinless Casters category.

Selection Assistance

Not sure which caster would work best for your application? We have a whole team of caster experts dedicated to find the perfect caster for your business that can help improve ergonomics and save your company money. Fill out the form below and Barron caster representative will be in touch soon!

Product Specification

Wheel Diameter

Caster Type

Wheel Material

Top Plate Dimensions

Wheel Width

Wheel Brakes

Weight Capacity

Application

Bearing Type

Roller Bearing

Overall Height

5-5/8in
