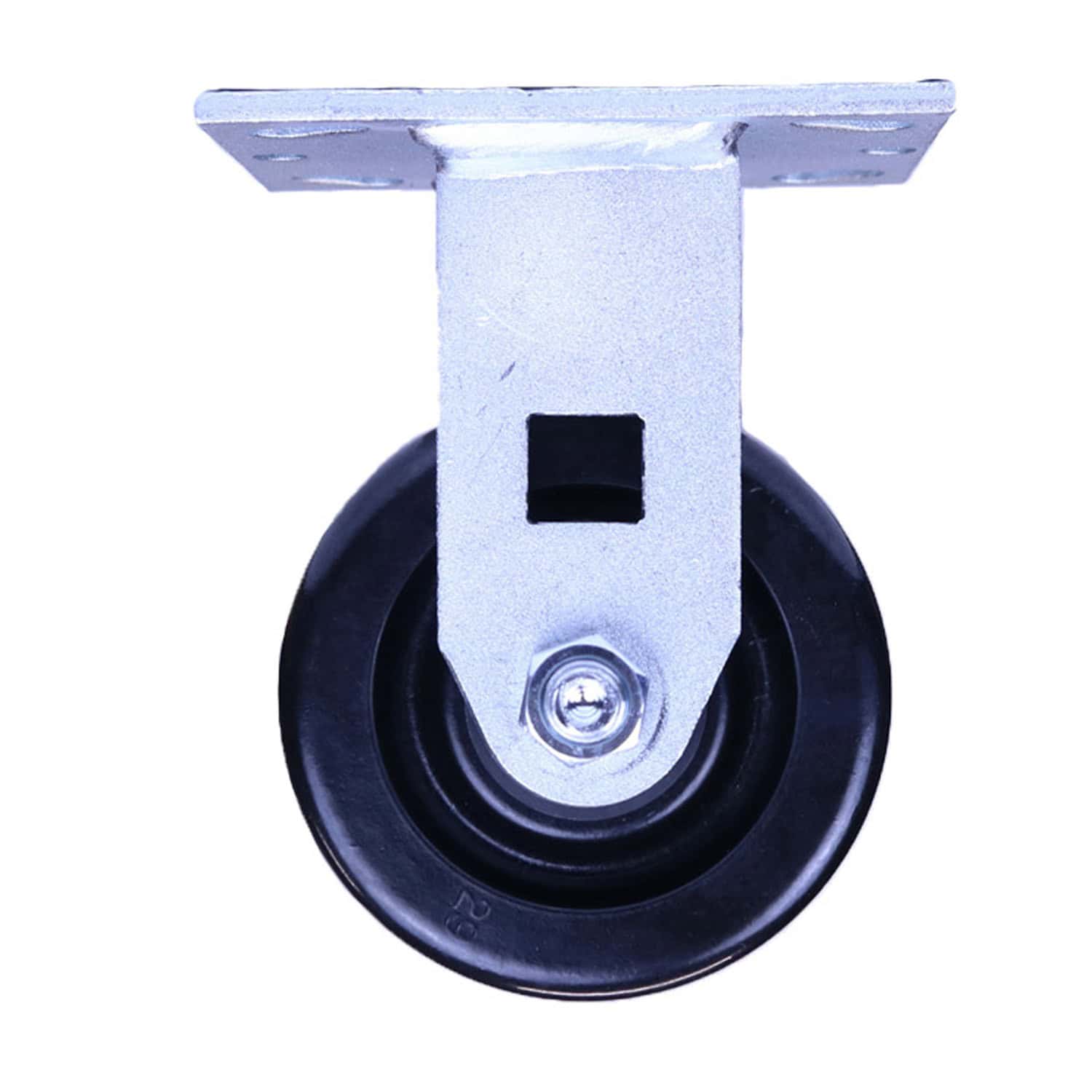

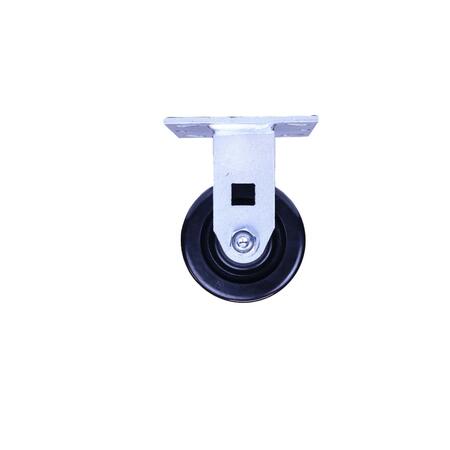

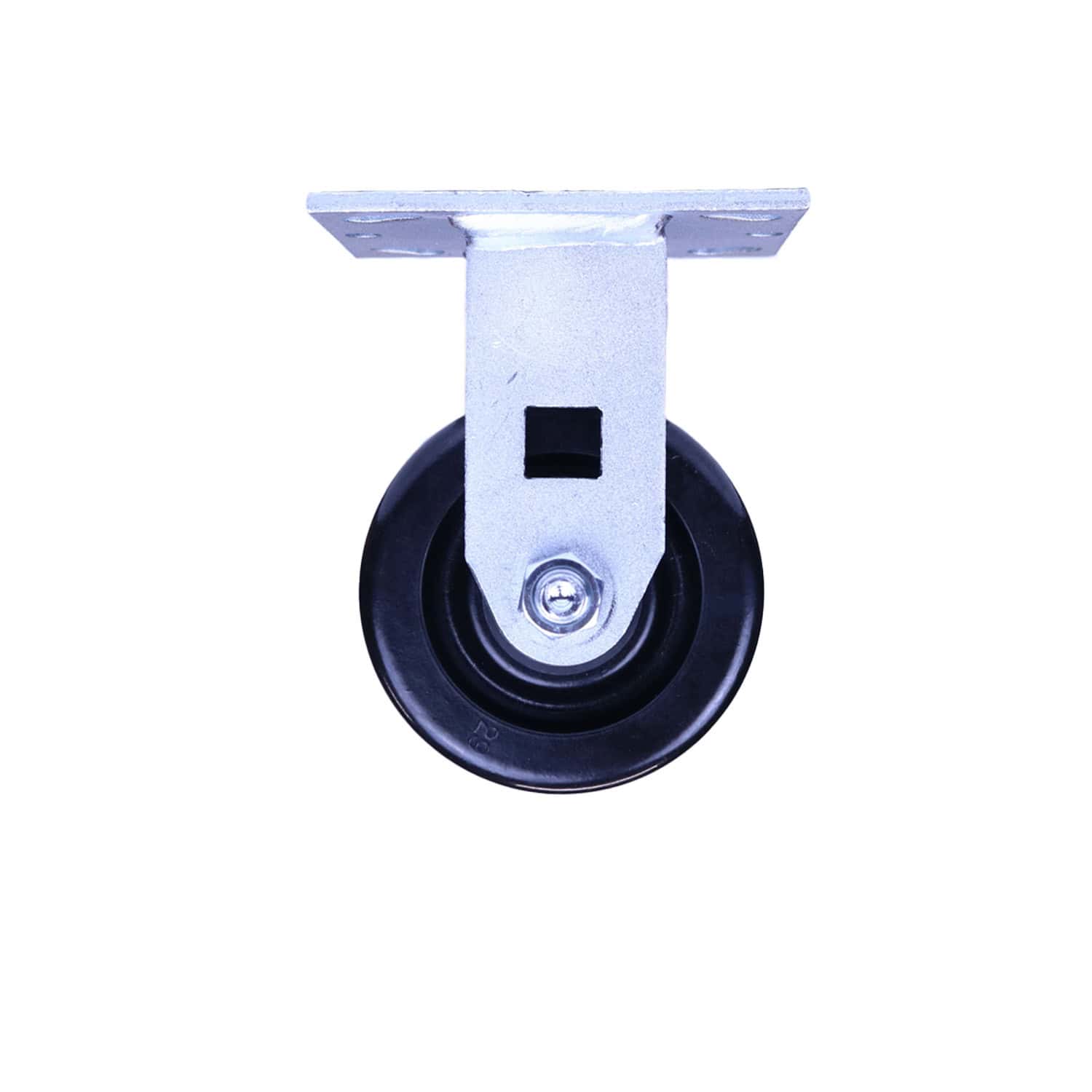

4 Inch Industrial Rigid Caster with Phenolic Wheel

Item ID: 41.42.50.PHR Category

Phenolic Wheel
Roller Bearing
800 lbs Capacity
Overall Height 5-5/8in
Overall Top Plate 4in x 4-1/2in
Bolt Hole 2-5/8in – 3in x 3in – 3-5/8in

$13.46

Free Shipping
SKU41.42.50.PHR2D Drawing2D Drawing
Wheel Diameter4 InchesWeight Capacity800 Lbs
Wheel Width2 InchesTread StyleDonut Tread
Overall Height5-5/8 InchesWheel MaterialPhenolic
Core MaterialAluminumBearing WheelRoller Bearing
Caster TypeRigidMounting typeTop Plate
Top Plate 4 Inches x 4-1/2 InchesAxle TypeZerk Axle
Top Plate Holes2-5/8 Inches - 3 Inches x 3 Inches - 3-5/8 InchesFork FinishZinc Plated

Overview

This industrial rigid caster has a wheel diameter of 4 inches and is ideal for everyday use types of applications. A fixed caster, or rigid caster, is typically used in tandem with our industrial swivel casters (casters that begin with “40”). Most carts use 2 swivel and 2 rigid casters. This non-swivel caster is cost effective and overall a fantastic economical choice.

Benefits

The main benefit of the industrial series casters is that they are cost effective and they improve ergonomics wherever industrial caster applications are necessary. In addition to benefits of the overall industrial caster category, phenolic wheels have their own benefits such as being resistant to oil, grease, gasoline and mild acids.

Applications

Applications for casters with phenolic wheels include waste bins, platform trucks, job boxes in bakeries and woodworking facilities. Click here to learn more about our phenolic wheels.

If your business requires a heavy duty caster solution, as opposed to an economical solution, you will want to review our Heavy Duty Kingpinless Casters category.

Selection Assistance

Not sure which caster would work best for your application? We have a whole team of caster experts dedicated to find the perfect caster for your business that can help improve ergonomics and save your company money. Fill out the form below and Barron caster representative will be in touch soon!

Product Specification

Wheel Diameter

Caster Type

Wheel Material

Top Plate Dimensions

Wheel Width

Wheel Brakes

Weight Capacity

Application

Bearing Type

Roller Bearing

Overall Height

5-5/8in

Resources

View PDF (41-42-50-PHR.pdf)

View PDF (41.42.50.PHR_.pdf)

Download File (41-42-50-PHR_ASM.stp)
