Overview

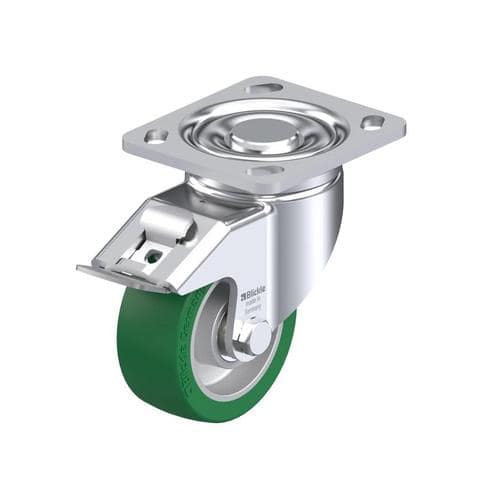

The LH-ALST 100K-14-FI Blickle heavy duty swivel caster is engineered to provide top quality mobility solutions for demanding industrial applications. This caster features a robust polyurethane tread and a dynamic load capacity of 705 lbs, making it ideal for heavy-duty use. The caster has a "stop-fix" brake system and is particularly resistant to shocks and impacts due to its four specially-shaped, hardened bearing seats, ensuring reliable performance even in the toughest environments.
Benefits
- Heavy Duty Swivel Caster:Â With a dynamic load capacity of 705 lbs, this caster is perfect for heavy-duty applications.
- Stop-Fix Brake System:Â The integrated stop-fix brake system provides secure and stable positioning when needed.
- Polyurethane Tread:Â The polyurethane caster wheels offer excellent floor protection, high abrasion resistance, and non-marking properties.
- Shock and Impact Resistance:Â The four specially-shaped, hardened bearing seats enhance the caster's resistance to shocks and impacts, ensuring the safe transport of sensitive goods.
- High Quality Materials:Â Constructed with top quality materials for enhanced durability and performance.
| SKU | LH-ALST 100K-14-FI | Minimum Temperature | -5 |
|---|---|---|---|
| Wheel Diameter | 4 Inches | Maximum Temperature | 160 |
| Wheel Width | 1-9/16 Inches | Wheel Material | Blickle Softhane Polyurethane Elastomer |
| Overall Height | 5-1/2 Inches | Bearing Type | Ball Bearing |
| Core Material | Die-Cast Aluminium | Weight Capacity | 705 lbs at 2.5 mph |
| Caster Type | Swivel | Mounting Type | Top Plate |
| Application | Heavy Duty | Top Plate | 4-1/2 Inches x 4 Inches |
| Hardness Rating | 75 Shore A | Top Plate Holes | 2-5/8 Inches x 3-5/8 Inches x 3 Inches |
Blickle Softhane® Polyurethane Wheels
Blickle Softhane® polyurethane wheels are designed for exceptional operational comfort, quiet mobility, and superior floor protection. These wheels feature an extra-thick, elastic polyurethane-elastomer tread that is gentle on surfaces, abrasion-resistant, and non-marking—even in sensitive environments.
Barron Equipment offers a full range of Softhane® wheel solutions, including:
- ALST Series: Wheels with Softhane® tread cast onto die-cast aluminum centers. Ideal for uneven surfaces and sharp edges, these wheels offer a Shore hardness of 75 A and are available in swivel and rigid caster formats.
- GST Series: Heavy-duty wheels with Softhane® tread bonded to rugged gray cast iron centers. Built for demanding industrial applications requiring high load capacity and durability.
These wheels are resistant to a wide range of aggressive substances (excluding aromatic solvents, hot water, and steam), and are available in antistatic versions with gray treads. Custom Shore hardness values and colors are available upon request.
Check out the video below to learn more about Softhane polyurethane wheels.
Applications
The LH-ALST 100K-14-FI Blickle heavy duty swivel caster is suitable for a wide range of applications, including:
- Industrial equipment
- Warehouse carts
- Manufacturing machinery
- Heavy duty trolleys
- Medical equipment
Selection Assistance
Not sure which Blickle caster would work best for your application? We have a whole team of caster experts dedicated to finding the perfect caster for your business, improving ergonomics and saving your company money. Fill out the form below and a Barron caster representative will be in touch soon!
