Overview

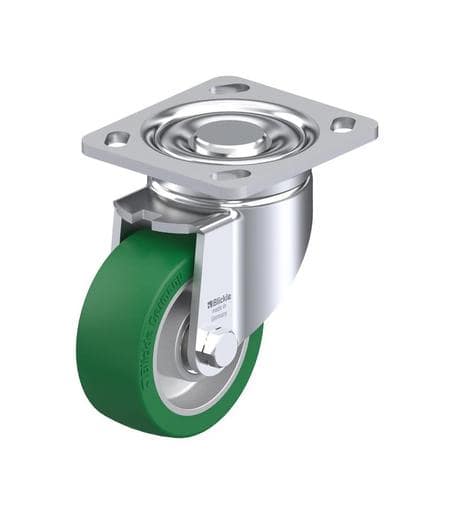

The LH-ALST 100K-14 heavy duty swivel caster from Blickle is designed to provide top quality mobility solutions for various industrial applications. Featuring high quality materials and precision ball bearings, this caster ensures reliable performance and long-lasting durability. The LH-ALST 100K-14 caster is equipped with a polyurethane wheel, offering excellent floor protection and smooth operation.
Benefits
- Heavy Duty Swivel Caster: With a dynamic load capacity of 705 lbs, this caster is perfect for heavy duty applications.
- Precision Ball Bearings:Â Maintenance-free precision ball bearings ensure smooth and reliable performance.
- Polyurethane Wheel:Â The polyurethane caster wheel provides superior floor protection and reduces noise during operation.
- High Quality Materials:Â Constructed with top quality materials, this caster is built to last and withstand rigorous use.
| SKU | LH-ALST 100K-14 | Minimum Temperature | -5 |
|---|---|---|---|
| Wheel Diameter | 4 Inches | Maximum Temperature | 160 |
| Wheel Width | 1-9/16 Inches | Wheel Material | Blickle Softhane Polyurethane Elastomer |
| Overall Height | 5-1/2 Inches | Bearing Type | Ball Bearing |
| Core Material | Die-Cast Aluminium | Weight Capacity | 705 lbs at 2.5 mph |
| Caster Type | Swivel | Mounting Type | Top Plate |
| Application | Heavy Duty | Top Plate | 4-1/2 Inches x 4 Inches |
| Hardness Rating | 75 Shore A | Top Plate Holes | 2-5/8 Inches x 3-5/8 Inches x 3 Inches |
Blickle Softhane® Polyurethane Wheels
Blickle Softhane® polyurethane wheels are designed for exceptional operational comfort, quiet mobility, and superior floor protection. These wheels feature an extra-thick, elastic polyurethane-elastomer tread that is gentle on surfaces, abrasion-resistant, and non-marking—even in sensitive environments.
Barron Equipment offers a full range of Softhane® wheel solutions, including:
- ALST Series: Wheels with Softhane® tread cast onto die-cast aluminum centers. Ideal for uneven surfaces and sharp edges, these wheels offer a Shore hardness of 75 A and are available in swivel and rigid caster formats.
- GST Series: Heavy-duty wheels with Softhane® tread bonded to rugged gray cast iron centers. Built for demanding industrial applications requiring high load capacity and durability.
These wheels are resistant to a wide range of aggressive substances (excluding aromatic solvents, hot water, and steam), and are available in antistatic versions with gray treads. Custom Shore hardness values and colors are available upon request.
Check out the video below to learn more about Softhane polyurethane wheels.
Applications
The LH-ALST 100K-14 heavy duty swivel caster is ideal for a wide range of industrial applications, including:
- Material handling equipment
- Warehouse carts and trolleys
- Manufacturing and assembly lines
- Heavy duty racks and shelving units
